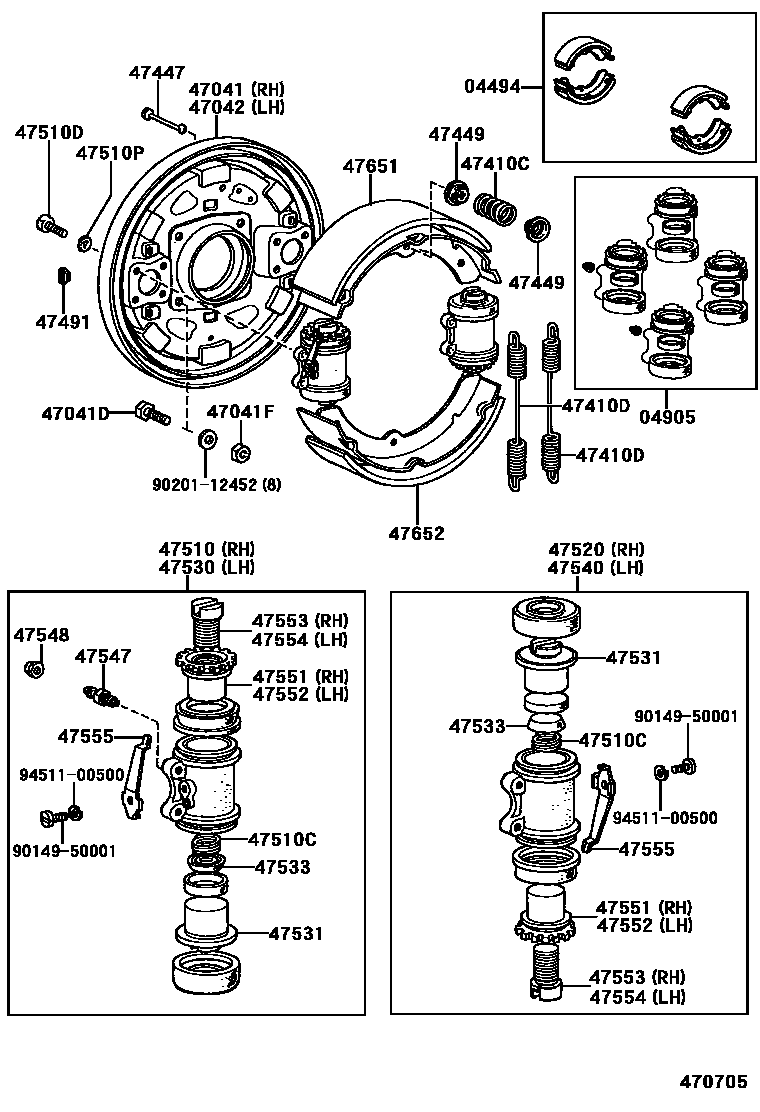

FRONT DRUM BRAKE WHEEL CYLINDER & BACKING PLATE
04494SHOE KIT, FRONT BRAKE
04905CUP KIT, FRONT WHEEL CYLINDER
47041PLATE SUB-ASSY, BRAKE BACKING, FRONT RH
47041DBOLT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
47041FNUT(FOR BACKING PLATE TO STEERING KNUCKLE SETTING)
47042PLATE SUB-ASSY, BRAKE BACKING, FRONT LH
47410CSPRING(FOR FRONT BRAKE SHOE HOLD DOWN)
47410DSPRING, TENSION(FOR FRONT BRAKE SHOE RETURN)
47447PIN, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47449CUP, SHOE HOLD DOWN SPRING(FOR FRONT BRAKE)
47491PLUG, HOLE(FOR FRONT BRAKE)
47510CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR FRONT OR UPPER)
47510CSPRING, COMPRESSION(FOR FRONT WHEEL BRAKE CYLINDER)
47510DBOLT(FOR FRONT WHEEL CYLINDER)
47510PWASHER(FOR FRONT WHEEL CYLINDER)
47520CYLINDER ASSY, FRONT WHEEL BRAKE, RH(FOR REAR OR LOWER)
47530CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR FRONT OR UPPER)
47531PISTON, WHEEL BRAKE CYLINDER(FOR FRONT BRAKE)
47533SEAT, WHEEL CYLINDER PISTON SPRING(FOR FRONT BRAKE)
47540CYLINDER ASSY, FRONT WHEEL BRAKE, LH(FOR REAR OR LOWER)
47547PLUG, BLEEDER(FOR FRONT DRUM BRAKE)
47548CAP, BLEEDER PLUG(FOR DRUM BRAKE, FRONT)
47551NUT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47552NUT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47553BOLT, FRONT WHEEL CYLINDER ADJUSTING, RH(FOR FRONT BRAKE)
47554BOLT, FRONT WHEEL CYLINDER ADJUSTING, LH(FOR FRONT BRAKE)
47555SPRING, ADJUSTER LOCK(FOR FRONT BRAKE)
47651LINING, FRONT BRAKE SHOE(FOR FRONT OR UPPER)
47652LINING, FRONT BRAKE SHOE(FOR REAR OR LOWER)
9014950001
main90149-50001
9020112452
main90201-12452
9451100500
main94511-00500
32 parts on this diagram · 1 diagram in section
