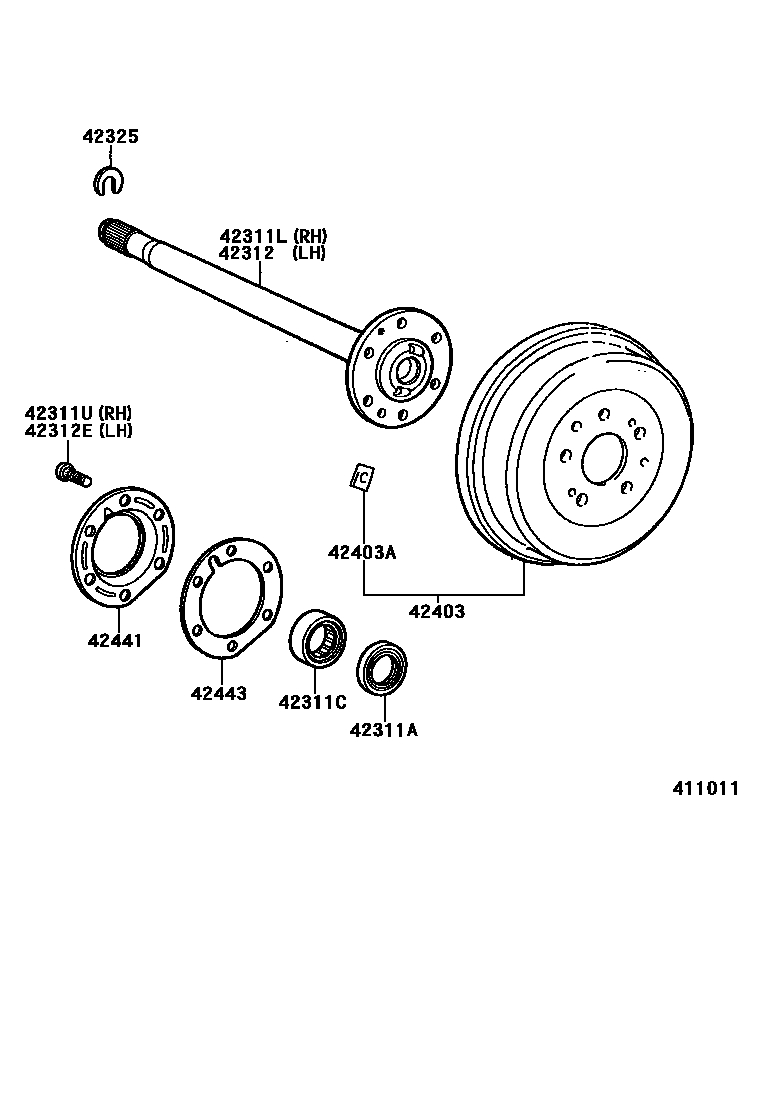

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-47001×2iLY21#,YY211..ST199505

42311CBEARING(FOR REAR AXLE SHAFT)

main90365-47013×2iLY21#,YY211..ST199505

42311LSHAFT, REAR AXLE, RH

main42311-25062iLY21#,YY211..ST199505

main42311-25070iLY211,YY211..WT..CBU199505-199801

main42311-25071iLY21#,YY211..RHD..WT199801

main42311-36161iLY21#..WT..EUR199505

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02030×6iLY211,YY211..ST199505-199801

main90942-02041×6iLY21#,YY211..WT..CBU199505

main90942-02050×6iLY21#..WT..EUR199505

main90942-02064×6iLY212..SA199909

main90942-02077×6iLY21#,YY211..ST199801

42312SHAFT, REAR AXLE, LH

main42311-25062iLY21#,YY211..ST199505

main42311-25070iLY211,YY211..WT..CBU199505-199801

main42311-25071iLY21#,YY211..RHD..WT199801

main42311-36161iLY21#..WT..EUR199505

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02030×6iLY211,YY211..ST199505-199801

main90942-02042×6iLY21#,YY211..WT..CBU199505

main90942-02051×6iLY21#..WT..EUR199505

main90942-02065×6iLY212..SA199909

main90942-02077×6iLY21#,YY211..ST199801

42325LOCK, REAR AXLE SHAFT

main42325-55010×2iLY21#,YY211..ST199505

42403DRUM SUB-ASSY, REAR BRAKE

main42431-25052×2iLY21#,YY211..ST199505

main42431-26060×2iLY21#,YY211..RHD..WT199505

main42431-36100×2iLY21#..WT..EUR199505

42403APIECE, BALANCE (FOR REAR BRAKE DRUM)

main90937-01117iLY21#,YY211..ST199505

10G

main90937-01118iLY21#,YY211..ST199505

20G

main90937-01119iLY21#,YY211..ST199505

30G

main90937-01120iLY21#,YY211..ST199505

40G

main90937-01121iLY21#,YY211..ST199505

50G

main90937-01122iLY21#,YY211..ST199505

60G

42441DEFLECTOR, BRAKE DRUM OIL

main42441-25030×2iLY21#,YY211..ST199505

42443GASKET, BRAKE DRUM OIL DEFLECTOR

main42443-25010×2iLY21#,YY211..ST199505

11 parts on this diagram · 3 diagrams in section
