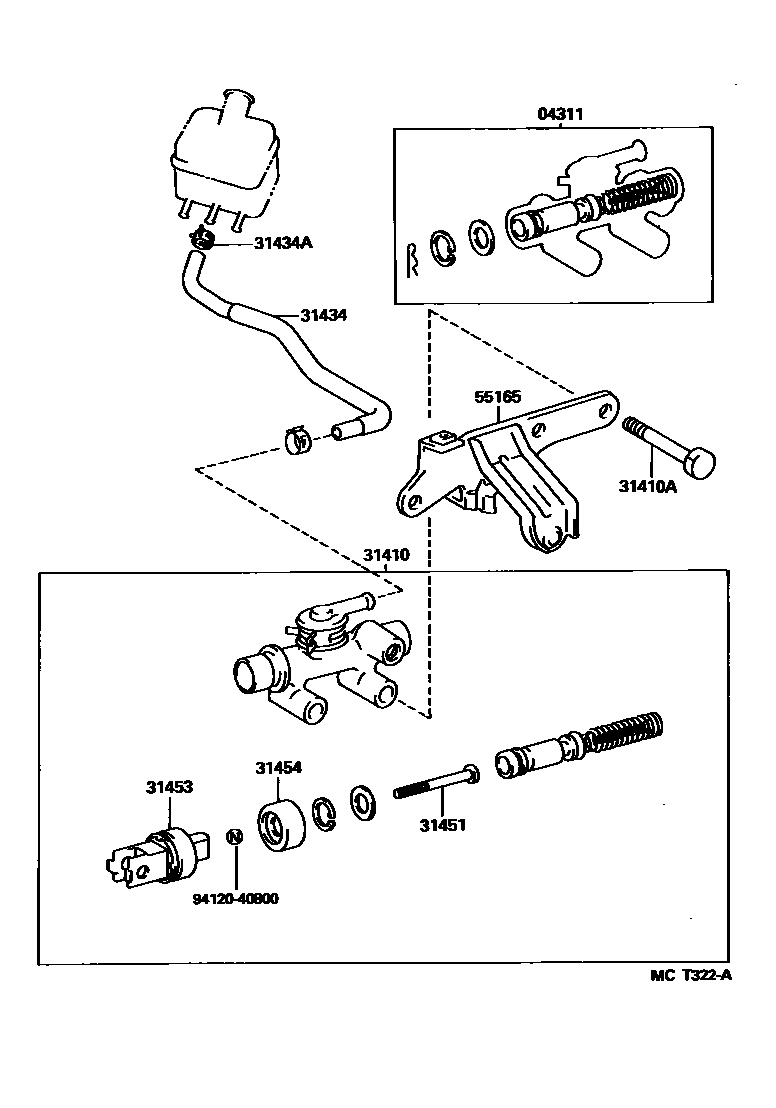

CLUTCH MASTER CYLINDER

0001 1 0003 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-12110iLY21#,YY211199505

31410CYLINDER ASSY, CLUTCH MASTER

main31420-37040iLY21#199505

main31420-37050iYY211199505

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865×2iLY21#,YY211199505

31434TUBE, CLUTCH RESERVOIR

main31434-37030iLY21#,YY211..RHD199505

main31434-37060iLY21#,YY211..LHD199505

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96133-41300×2iLY21#,YY211199505

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22080iYY211199505

main31451-36040iLY21#199505

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28020iLY21#199505

main31453-37010iYY211199505

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iLY21#,YY211199505

55165SUPPORT, CLUTCH MASTER CYLINDER

main55107-37020iLY21#199708

main55165-37020iLY211,YY211199505-199708

9412040800

main94120-40800

10 parts on this diagram · 2 diagrams in section
