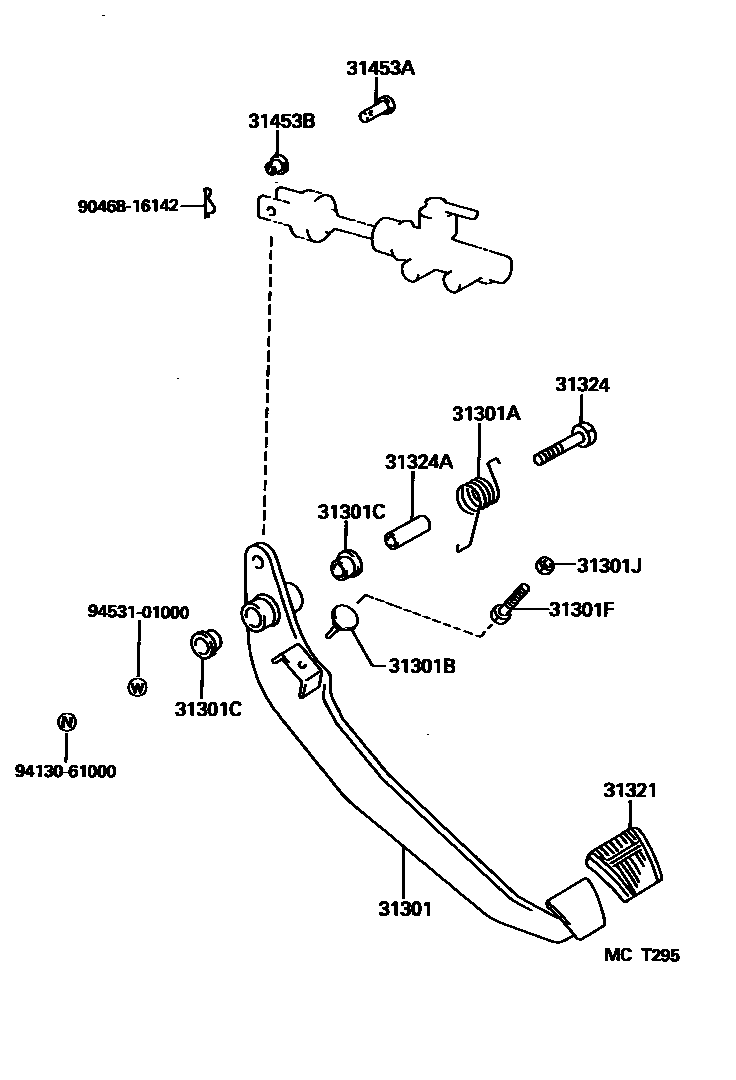

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0003 1 0004 1 0006 1 0007 1 0008 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-37090iLY211,YY211199505-199708

main31310-25020iLY21#..RHD199708

main31310-37020iLY21#..LHD199708

31301ASPRING(FOR CLUTCH PEDAL)

main90508-35004iLY211,YY211199505-199708

main90949-03010iLY21#199708

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iLY21#,YY211199505

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13007×2iLY21#,YY211199505

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-08052iLY21#,YY211199505

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-60800iLY21#,YY211199505

31321PAD, CLUTCH PEDAL

main31321-14020iLY21#,YY211199505

31324SHAFT, CLUTCH PEDAL

main91121-51070iLY21#,YY211199505

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iLY21#,YY211199505

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iLY21#,YY211199505

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iLY21#,YY211199505

9046816142

main90468-16142

9413061000

main94130-61000

9453101000

main94531-01000

14 parts on this diagram · 6 diagrams in section
