CARBURETOR ASSEMBLY

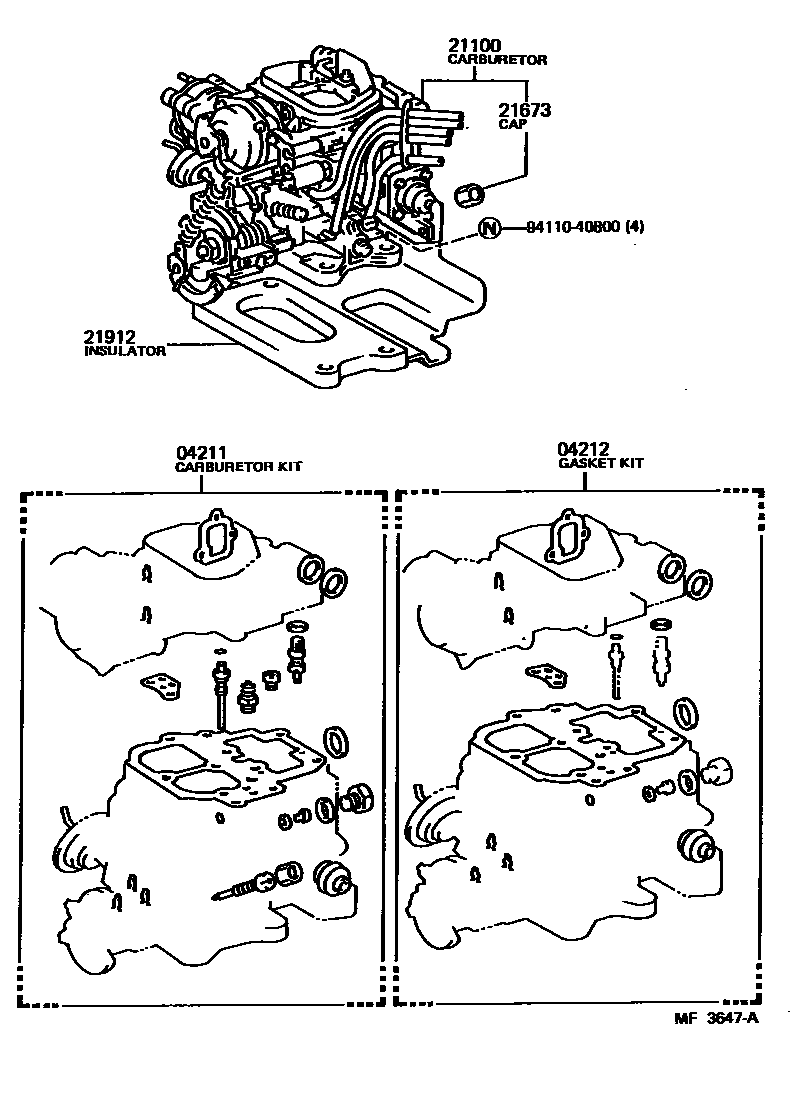

Parts diagram

04211CARBURETOR KIT

main04211-71072i199505

main04211-72301i199505-200002

04212GASKET KIT, CARBURETOR

main04212-72012i199505

main04212-73063i199505-200002

21100CARBURETOR ASSY

main21100-71122i199505

main21100-72382i199505-200002

21673CAP, IDLE LIMIT

main21673-13280i199505

21912INSULATOR, CARBURETOR HEAT

main21912-72011i199505

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
