ENGINE OVERHAUL GASKET KIT

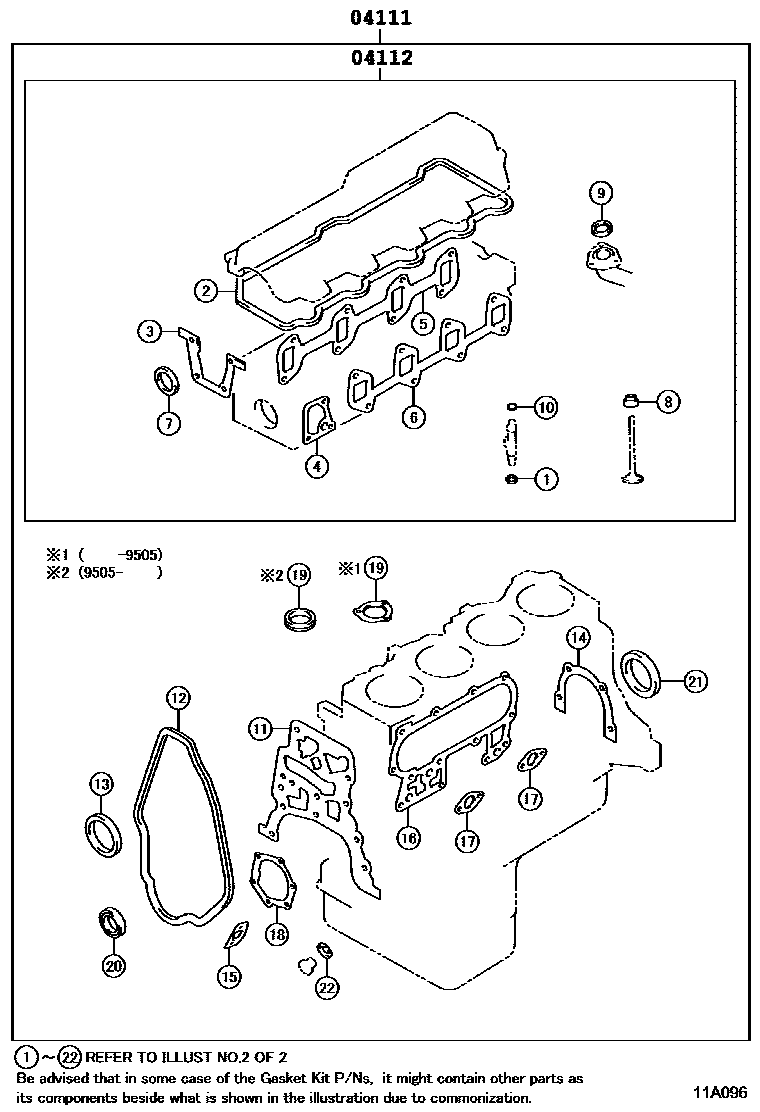

Parts diagram

04111GASKET KIT, ENGINE OVERHAUL

main04111-54093i199505-199705

main04111-54094i199705-200008

main04111-54095i200008

main04111-54280i199805-200008

main04111-54281i200008

main04111-54310i199909-200008

main04111-54311i200008

main04111-73027i199505-199901

main04111-73028i199901-200009

main04111-73029i200009

04112GASKET KIT, ENGINE VALVE GRIND

main04112-54071i199505-199705

main04112-54072i199705-200008

main04112-54073i200008

main04112-54220i199805

main04112-54250i199909

main04112-73026i199505

2 parts on this diagram · 8 diagrams in section
