SHORT BLOCK ASSEMBLY

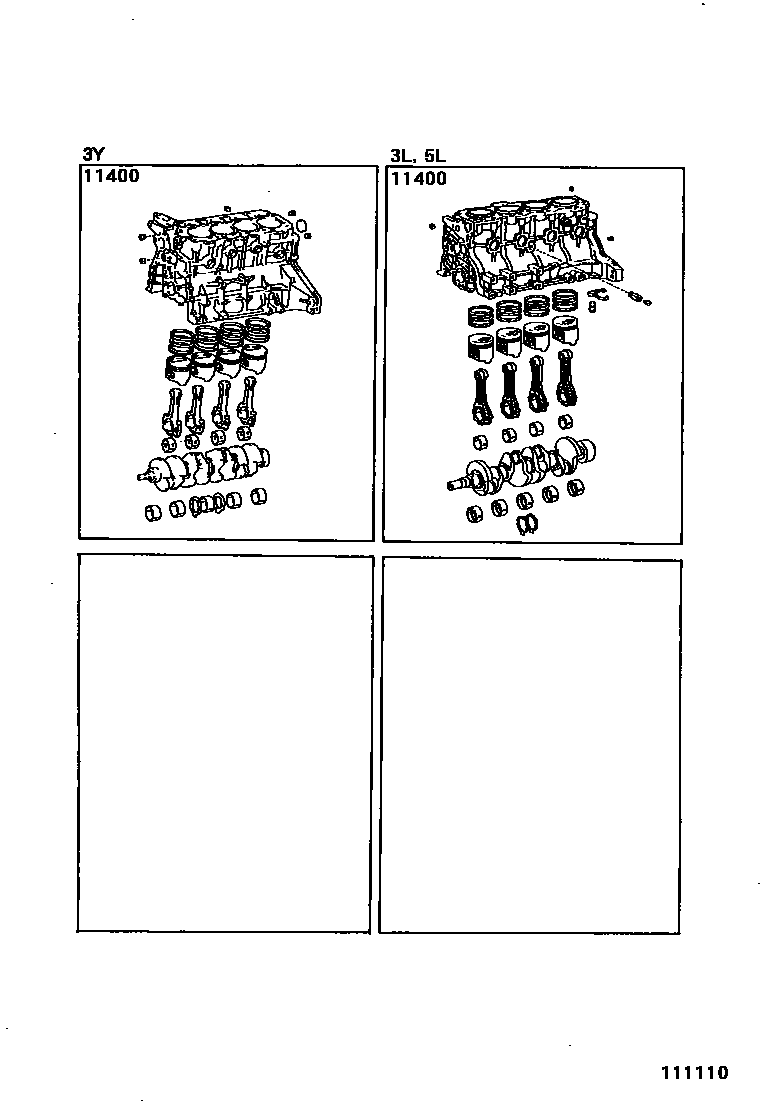

Parts diagram

11400BLOCK ASSY, SHORT

main11400-54120i199905

main11400-54160i199805

main11400-73013i199505-199512

SINGAPORE SPEC

main11400-73014i199512-199905

SINGAPORE SPEC

main11400-73023i199505-199512

main11400-73024i199512

main11400-73043i199505-199512

CHINA SPEC

main11400-73044i199512

CHINA SPEC

1 parts on this diagram · 1 diagram in section
