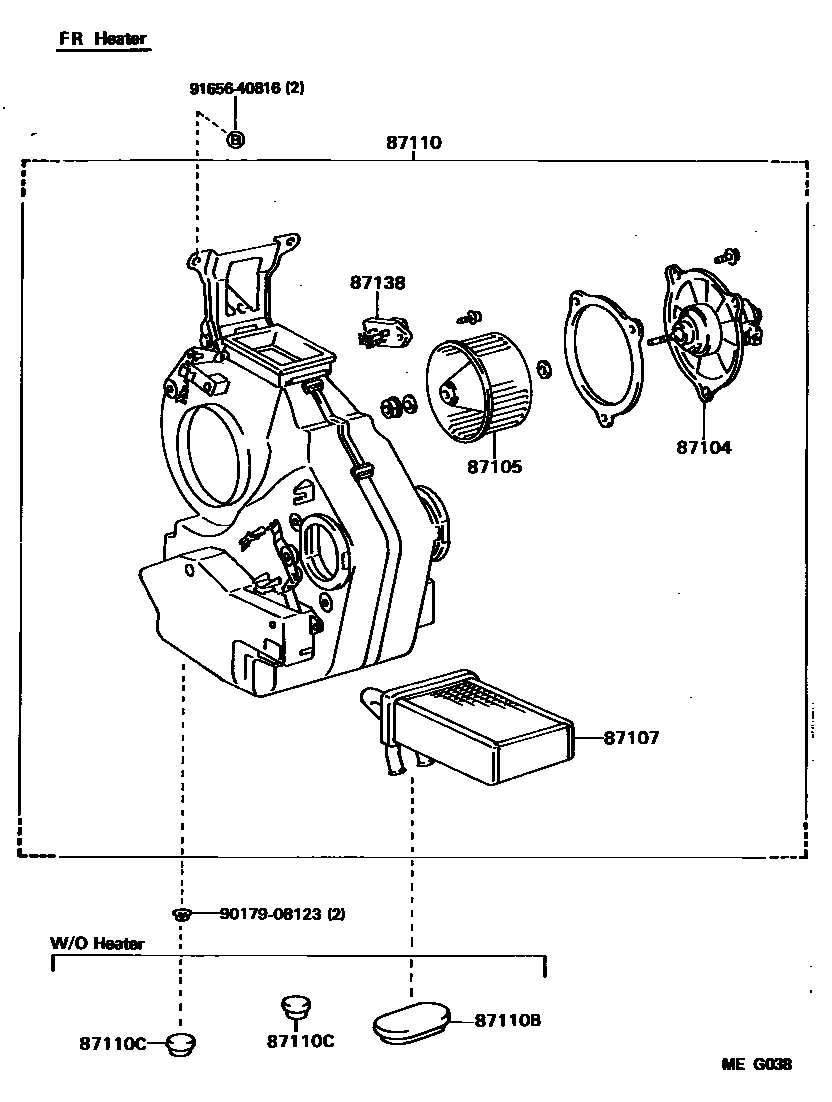

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-95404iLY60,YY5#,6#198508-198708

87105FAN SUB-ASSY, HEATER BLOWER

main87105-12060iLY60,YY60..RHD..ST198508-198708

W/HEATER

main87105-16020iLY60,YY5#,6#..LHD198508-198708

W/HEATER

main87105-95402iLY60,YY6#..RHD..GEN198508-198708

W/*BV

main87105-95403×2iLY60,YY5#,6#..LHD198508-198708

W/*BV

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-95406iLY60,YY5#,60..T3,TW198508-198708

STD DUTY HEATER

main87107-95407iLY60,YY5#,6#..LHD198508-198708

HEAVY DUTY HEATER

87110HEATER ASSY

main87110-95436iLY60,YY60..RHD..ST198508-198708

main87110-95437iLY60,YY5#,6#..LHD198508-198708

STD DUTY HEATER

main87110-95442iLY60,YY5#,6#..LHD198508-198708

HEAVY DUTY HEATER

87110BPLUG, HOLE (FOR HEATER PIPE HOLE)

main90950-01047iLY60,YY5#,6#..EUR,GEN198508-198708

87110CPLUG, HOLE (FOR HEATER INSTALLATION HOLE)

main90950-01006×2iLY60,YY5#,6#..EUR,GEN198508-198708

87138RESISTOR, HEATER BLOWER

main87138-95409iLY60,YY5#,6#198508-198708

9017908123

main90179-08123

9165640816

main91656-40816

9 parts on this diagram · 3 diagrams in section
