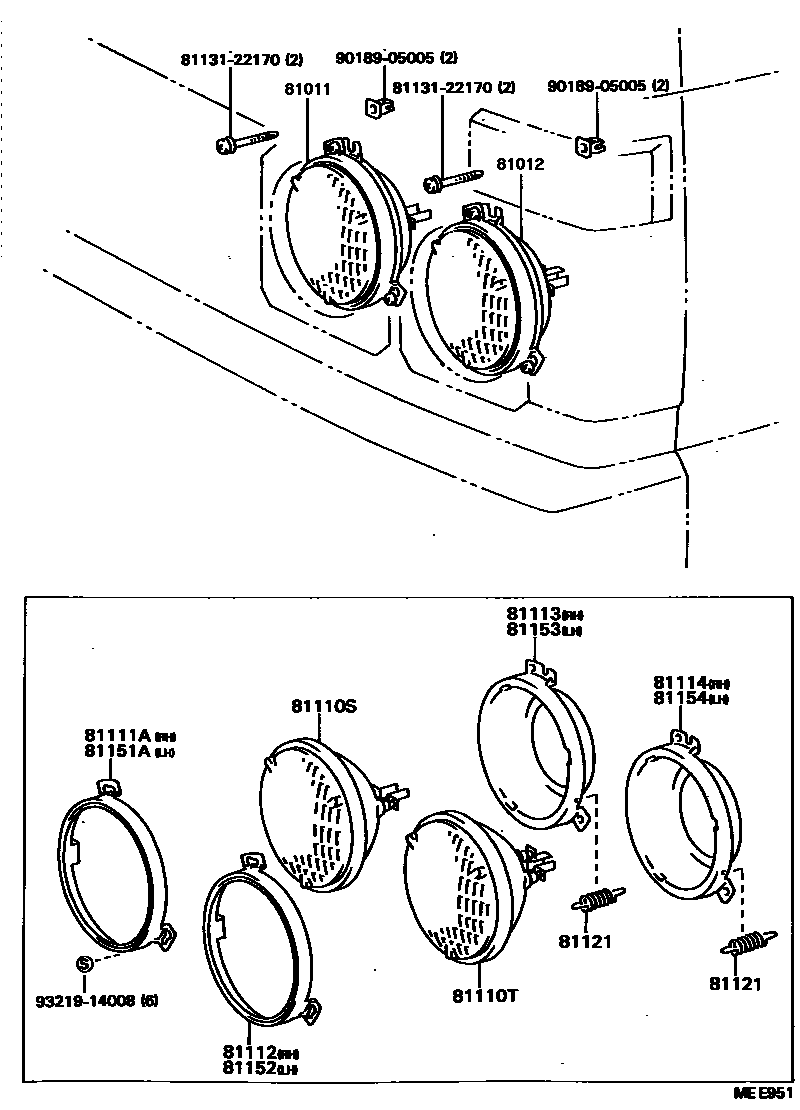

HEADLAMP

0001 1 0002 1

81011HEADLAMP SUB-ASSY, NO.1

main81011-39085iLY60,YY51,6#..ARL,GEN198508-198608

RH,WHITE

main81011-39115iLY60..ARL198508-198708

RH,*SSB HALOGEN,WHITE

main81011-95011iLY60,YY5#,6#..LHD198508-198708

RH,*SSB,WHITE

main81011-95012iLY60,YY5#,6#..EUR,GEN198508-198708

RH,*SSB,WHITE

main81011-95013iLY60,YY61..EUR198608-198708

LH,*SSB HALOGEN

main81011-95407iLY60,YY52,6#..ARL,GEN198608-198708

RH,WHITE

main81013-39025iLY60,YY5#,6#..ARL,GEN198508-198708

LH,WHITE

main81013-39085iLY60..ARL198508-198708

LH,*SSB HALOGEN,WHITE

main81013-95011iLY60,YY5#,6#..LHD198508-198708

LH,*SSB,WHITE

main81013-95012iLY60,YY5#,6#..EUR,GEN198508-198708

LH,*SSB,WHITE

main81013-95013iLY60,YY61..EUR198608-198708

LH,*SSB HALOGEN

81012HEADLAMP SUB-ASSY, NO.2

main81012-39105iLY60,YY6#..RHD198508-198708

RH,WHITE

main81012-39115iLY60,YY51,60..LHD..GEN198508-198608

RH,WHITE

main81012-39145iLY60..ARL198508-198708

RH,*SSB HALOGEN,WHITE

main81012-95011iLY60,YY5#,6#..LHD198508-198708

RH,*SSB,YELLOW

main81012-95012iLY60,YY5#,6#..LHD198508-198708

RH,*SSB,WHITE

main81012-95013iLY60,YY6#..RHD..GEN198508-198708

RH,*SSB,WHITE

main81012-95014iLY60,YY61..EUR198608-198708

RH,*SSB HALOGEN

main81012-95411iLY60,YY52,6#..LHD..GEN198608-198708

RH,WHITE

main81014-39025iLY60,YY6#..RHD198508-198708

LH,WHITE

main81014-39035iLY60,YY5#,6#..LHD..GEN198508-198708

LH,WHITE

main81014-39085iLY60..ARL198508-198708

LH,*SSB HALOGEN

main81014-95011iLY60,YY5#,6#..LHD198508-198708

LH,*SSB,YELLOW

main81014-95012iLY60,YY5#,6#..LHD198508-198708

LH,*SSB,WHITE

main81014-95013iLY60,YY6#..RHD..GEN198508-198708

LH,*SSB,WHITE

main81014-95014iLY60,YY61..EUR198608-198708

LH,*SSB HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-02039×2iLY60,YY5#,6#..ARL,GEN198508-198708

12V 37.5W,*WB,12V 37.5W,WHITE

main90981-02047×2iLY60..ARL198508-198708

12V 37.5W,*HAL,*WB,12V 37.5W,*SSB HALOGEN,WHITE

main90981-02055×2iLY60,YY5#,6#..LHD198508-198708

12V 45/40W,*YSB,12V 45/40W,*SSB,YELLOW

main90981-02057×2iLY60,YY5#,6#..EUR,GEN198508-198708

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-02061×2iLY60,YY61..EUR198608-198708

12V 55W,*HYS,12V 55W,*SSB,HALOGEN

81110TSEALED BEAM UNIT, NO.2

main90981-02040×2iLY60,YY6#..RHD198508-198708

12V 37.5/50W,*WB,12V 37.5/50W,WHITE

main90981-02041×2iLY60,YY5#,6#..LHD..GEN198508-198708

12V 37.5/50W,*WB,12V 37.5/50W,WHITE

main90981-02048×2iLY60..ARL198508-198708

12V37.5/60W,*HAL,*WB,12V 37.5/60W,*SSB,HALOGEN,*WH

main90981-02056×4iLY60,YY5#,6#..LHD198508-198708

12V 45/40W,*YSB,12V 45/40W,*SSB,YELLOW

main90981-02058×2iLY60,YY5#,6#..LHD198508-198708

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-02059×2iLY60,YY6#..RHD..GEN198508-198708

12V 45/40W,*WSB,12V 45/40W,*SSB,WHITE

main90981-02062×2iLY60,YY61..EUR198608-198708

12V 60/55W,*HWS,12V 60/55W,*SSB HALOGEN

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-14261iLY60,YY5#,6#198508-198708

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-14261iLY60,YY5#,6#198508-198708

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81113-14100iLY60,YY5#,6#198508-198708

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-20210iLY60,YY5#,6#198508-198708

81121SPRING, HEADLAMP TENSION

main81121-95400×2iLY60,YY5#,6#198508-198708

LH

main90506-16017×2iLY60,YY5#,6#198508-198708

RH

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-14261iLY60,YY5#,6#198508-198708

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-14261iLY60,YY5#,6#198508-198708

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81153-14100iLY60,YY5#,6#198508-198708

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-20170iLY60,YY5#,6#198508-198708

8113122170SCREW, HEADLAMP ADJUSTING

main81131-22170

9018905005

main90189-05005

9321914008

main93219-14008

16 parts on this diagram · 2 diagrams in section
