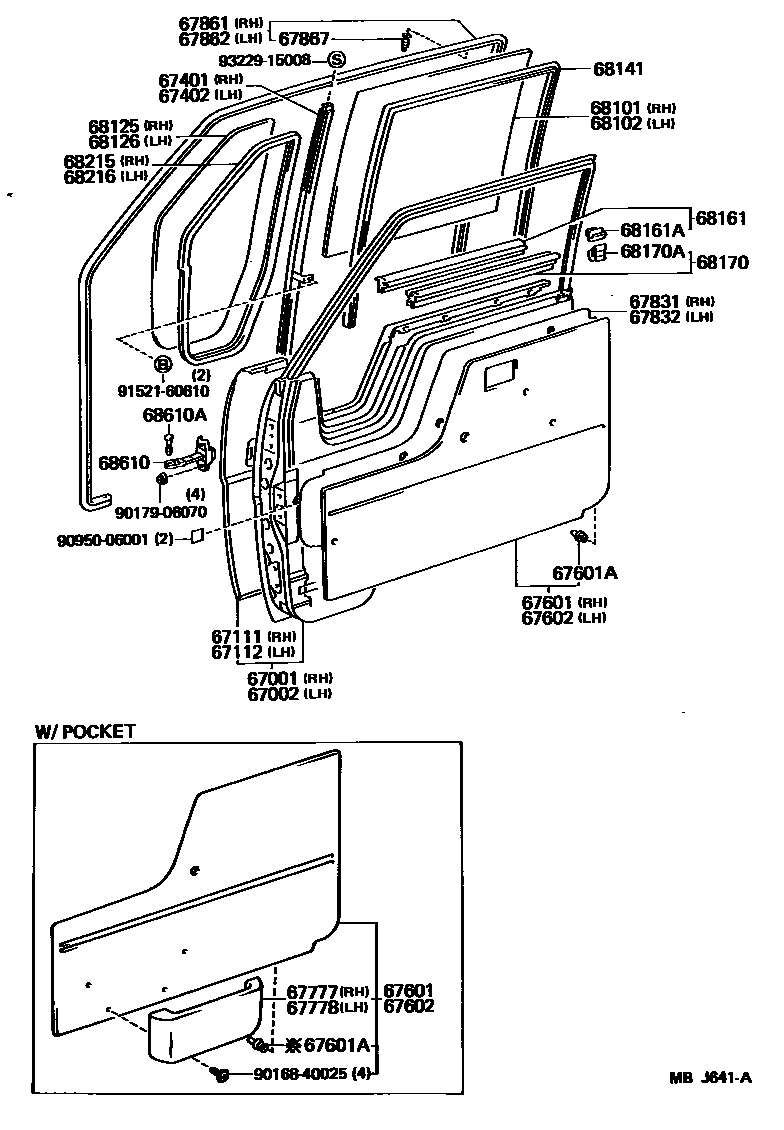

FRONT DOOR PANEL & GLASS

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-95421iLY60,YY5#,6#..LHD; LY60..ARL..IV198508-198701

main67001-95422iLY60,YY61..EUR198508-198701

main67001-95424iLY60,YY52,6#..LHD; LY60..ARL..IV198701-198708

main67001-95A16iLY60,YY6#..RHD..GEN; LY60..ARL..CBU198508-198701

main67001-95A17iLY60,YY6#..RHD..GEN; LY60..ARL..CBU198701-198708

main67001-95A25iLY60,YY61..EUR198701-198708

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-95425iLY60,YY6#..RHD198508-198701

main67002-95426iLY60,YY61..EUR198508-198701

main67002-95429iLY60,YY6#..RHD198701-198708

main67002-95430iLY60,YY61..EUR198701-198708

main67002-95A23iLY60,YY5#,6#..LHD198508-198701

main67002-95A25iLY60,YY52,6#..LHD198701-198708

67111PANEL, FRONT DOOR, OUTER RH

main67111-95406iLY60,YY5#,6#..LHD; LY60..ARL..IV198508-198708

main67111-95407iLY60,YY61..EUR198508-198708

main67111-95A10iLY60,YY6#..RHD..GEN; LY60..ARL..CBU198508-198708

67112PANEL, FRONT DOOR, OUTER LH

main67112-95405iLY60,YY6#..RHD198508-198708

main67112-95406iLY60,YY61..EUR198508-198708

main67112-95A11iLY60,YY5#,6#..LHD198508-198708

67401BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT RH

main67503-95400iLY60,YY5#,6#198508-198708

67402BAR SUB-ASSY, FRONT DOOR WINDOW, FRONT LH

main67504-95400iLY60,YY5#,6#198508-198708

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-95019-03iLY60,YY5#,6#198508-198708

SHADOW GRAY,SHADOW GRAY

main67610-95022-03iLY60,YY6#..RHD198508-198708

W/POCKET,SHADOW GRAY,SHADOW GRAY

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12020×24iLY60,YY5#,6#198508-198708

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-95022-03iLY60,YY5#,6#198508-198708

SHADOW GRAY,SHADOW GRAY

main67620-95026-03iLY60,YY5#,6#..LHD198508-198708

W/POCKET,SHADOW GRAY,SHADOW GRAY

67777POCKET, FRONT DOOR TRIM, RH

main67778-22030-23iLY60,YY6#..RHD198508-198708

SHADOW GRAY,SHADOW GRAY

67778POCKET, FRONT DOOR TRIM, LH

main67777-22040-23iLY60,YY5#,6#198508-198708

SHADOW GRAY,SHADOW GRAY

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-95404iLY60,YY5#,6#198508-198708

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-95404iLY60,YY5#,6#198508-198708

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-95406iLY60,YY5#,6#198508-198708

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-95406iLY60,YY5#,6#198508-198708

67867CLIP, DOOR WEATHERSTRIP

main67867-89103×28iLY60,YY5#,6#198508-198708

LH

main67868-89101×28iLY60,YY5#,6#198508-198708

RH

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-95406iLY60,YY5#,6#198508-198708

*TEM,T=4.0,*TEM,T=4.0

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-95406iLY60,YY5#,6#198508-198708

*TEM,T=4.0,*TEM,T=4.0

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-95400iLY60,YY5#,6#198508-198708

*TEM,T=3.5

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-95400iLY60,YY5#,6#198508-198708

*TEM,T=3.5

68141RUN, FRONT DOOR GLASS

main68141-95406×2iLY60,YY5#,6#198508-198708

68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER

main68160-95402×2iLY60,YY5#,6#198508-198708

68161ACLIP(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)

main68211-30080×4iLY60,YY5#,6#198508-198708

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68171-95406iLY60,YY5#,6#198508-198708

RH

main68172-95402iLY60,YY5#,6#198508-198708

LH

68170ACLIP(FOR FRONT DOOR GLASS INNER WEATHERSTRIP SET)

main68211-12080×8iLY60,YY5#,6#198508-198708

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-95402iLY60,YY5#,6#198508-198708

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-95402iLY60,YY5#,6#198508-198708

68610CHECK ASSY, FRONT DOOR

main68610-95400×2iLY60,YY5#,6#198508-198708

68610APIN(FOR FRONT DOOR CHECK)

main68617-90A00×2iLY60,YY5#,6#198508-198708

9016840025

main90168-40025

9017906070

main90179-06070

9095006001

main90950-06001

9152160610

main91521-60610

9322915008

main93229-15008

34 parts on this diagram · 1 diagram in section
