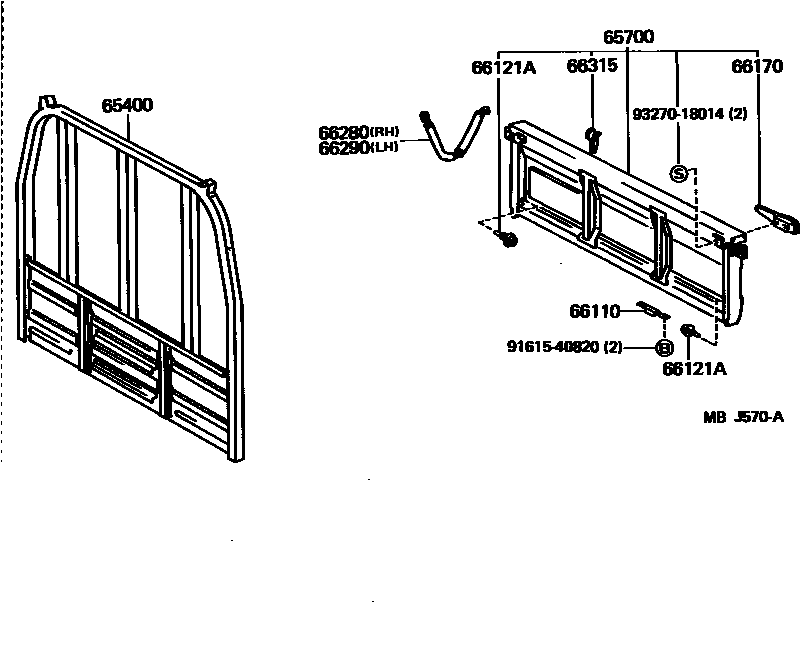

REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1 0003 1

65400FRAME ASSY, REAR BODY GUARD

main65400-95058iLY60,YY5#,6#..TW198508-198708

main65400-95059iLY60,YY6#..T3..GEN198508-198708

main65400-95060iLY60,YY61..WT..GEN198508-198708

main65400-95061iLY60,YY61..EUR198508-198708

65700GATE ASSY, REAR BODY TAIL

main65700-95031iLY60,YY6#..(T2,T3)..GEN198508-198708

main65700-95414iLY60,YY61..EUR198508-198708

main65700-95415iLY60,YY5#,6#..TW198508-198708

66110HINGE ASSY, TAIL GATE

main66110-95014iLY60,YY5#,6#..TW198508-198708

main66110-95020iLY60,YY6#..(T2,T3)..GEN198508-198708

main66110-95407iLY60,YY61..EUR198508-198708

66121ABOLT, TAIL GATE MALE

main66121-95012iLY60,YY5#,6#..TW198508-198708

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402iLY60,YY51,60..TW198508-198708

66280CHAIN ASSY, TAIL GATE, RH

main66280-95011iLY60,YY61..EUR198508-198708

main66280-95016iLY60,YY6#..(T2,T3)..GEN198508-198708

main66280-95403iLY60,YY5#,6#..TW198508-198708

66290CHAIN ASSY, TAIL GATE, LH

main66280-95011iLY60,YY61..EUR198508-198708

main66280-95016iLY60,YY6#..(T2,T3)..GEN198508-198708

main66280-95403iLY60,YY5#,6#..TW198508-198708

66315HOOK, ROPE

main66311-95010iLY60,YY5#,6#..TW198508-198708

TAIL GATE

main66311-95400iLY60,YY61..EUR198508-198708

TAIL GATE

main66312-95A01iLY60,YY6#..(T2,T3)..GEN198508-198708

GUARD FRAME

9161540820

main91615-40820

9327018014

main93270-18014

10 parts on this diagram · 3 diagrams in section
