SIDE MEMBER

0001 1 0002 1

58241CPANEL, FLOOR SIDE, RH

main58011-95011iLY60..EUR198508-198708

main58011-95012iYY61..EUR198608-198708

main58241-92603iLY60,YY5#,6#..TW198508-198708

58242CPANEL, FLOOR SIDE, LH

main58012-95012iLY60..EUR198508-198708

main58012-95016iLY60..EUR198609-198708

SWITZERLAND SPEC

main58012-95441iYY61..EUR198608-198708

main58242-92603iLY60,YY5#,6#..TW198508-198708

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iLY60,YY6#..RHD198508-198708

main61023-95401iLY60,YY5#,6#..LHD198508-198708

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-95400iLY60,YY6#..RHD198508-198708

main61024-95401iLY60,YY5#,6#..LHD198508-198708

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-95400iLY60,YY6#..RHD198508-198708

W/RADIO

main61027-95401iLY60,YY5#,6#198508-198708

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-95400iLY60,YY5#,6#198508-198708

main61028-95401iLY60,YY5#,6#..LHD198508-198708

W/RADIO

61107ACOVER SUB-ASSY, FRONT PILLAR DOOR HINGE

main61107-95415iLY60,YY6#..RHD198508-198708

RH

main61108-95416iLY60,YY5#,6#..LHD..GEN198508-198708

LH

61187BRACKET, FRONT PILLAR DOOR HINGE COVER, RH

main61187-95400iLY60,YY6#..RHD198508-198708

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iLY60,YY51,60..LHD..GEN198508-198708

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iLY60,YY5#,6#198508-198708

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iLY60,YY5#,6#198508-198708

61231RAIL, ROOF SIDE, INNER RH

main61231-92600iLY60,YY5#,6#..TW..GEN198508-198708

main61231-92601iLY60..ARL..CBU198508-198708

main61231-95405iLY60,YY6#..RHD..(T2,T3)198508-198708

main61231-95406iLY60,YY6#..LHD..T3198508-198708

61232RAIL, ROOF SIDE, INNER LH

main61232-92600iLY60..ARL..CBU198508-198708

main61232-92601iLY60,YY5#,6#..TW..GEN198508-198708

main61232-95405iLY60,YY6#..LHD..T3198508-198708

main61232-95406iLY60,YY6#..RHD..(T2,T3)198508-198708

61261ACHANNEL, ROOF DRIP SIDE, FRONT RH

main61261-92601iLY60,YY5#,6#..TW198508-198708

main61261-95404iLY60,YY6#..T2,T3198508-198708

main61261-95406iLY60,YY61..EUR198609-198708

PORTUGAL SPEC

61262ACHANNEL, ROOF DRIP SIDE, FRONT LH

main61262-92601iLY60,YY5#,6#..TW198508-198708

main61262-95404iLY60,YY6#..T2,T3198508-198708

main61262-95406iLY60,YY61..EUR198609-198708

PORTUGAL SPEC

61531PANEL, BACK CORNER, INNER RH

main64015-95400iLY60,YY6#..(T2,T3)..GEN198508-198708

main64015-95401iLY60..RHD..GEN..IV198508-198708

NEWZEALAND SPEC

main64015-95401iLY60,YY61..T3..(ARL,EUR)198508-198708

PORTUGAL SPEC

61531APANEL, BACK CORNER, OUTER RH

main64103-95401iLY60,YY6#..(T2,T3)..GEN198508-198708

main64103-95402iYY61..EUR198608-198708

main64103-95403iLY60..LHD..GEN..IV198508-198708

PORTUGAL SPEC

main64103-95403iLY60..LHD..GEN..IV198508-198708

NEWZEALAND SPEC

61532PANEL, BACK CORNER, INNER LH

main64016-95400iLY60,YY6#..(T2,T3)..GEN198508-198708

main64016-95401iLY60..LHD..GEN..IV198508-198708

PORTUGAL SPEC

main64016-95401iLY60..T3..(ARL,EUR)198508-198708

NEWZEALAND SPEC

main64016-95401iYY61..EUR198608-198708

61532APANEL, BACK CORNER, OUTER LH

main64104-95401iLY60,YY6#..(T2,T3)..GEN198508-198708

main64104-95402iYY61..EUR198608-198708

main64104-95403iLY60..T3..(ARL,EUR)198508-198708

NEWZEALAND SPEC

main64104-95403iLY60..LHD..GEN..IV198508-198708

PORTUGAL SPEC

61991PROTECTOR, FRONT PILLAR DOOR HINGE

main61991-95400iLY60,YY6#..RHD198508-198708

RH

main61992-95400iLY60,YY5#,6#..LHD..GEN198508-198708

LH

64163ACOVER, BACK CORNER, INNER

main64163-95403iLY60,YY5#,6#..GEN198508-198708

main64163-95404iLY60,YY61..ARL,EUR198508-198708

PORTUGAL,NEWZEALAND SPEC

9014980014

main90149-80014

9046710061

main90467-10061

9095001011

main90950-01011

9095001454

main90950-01454

9161160814

main91611-60814

9351015014

main93510-15014

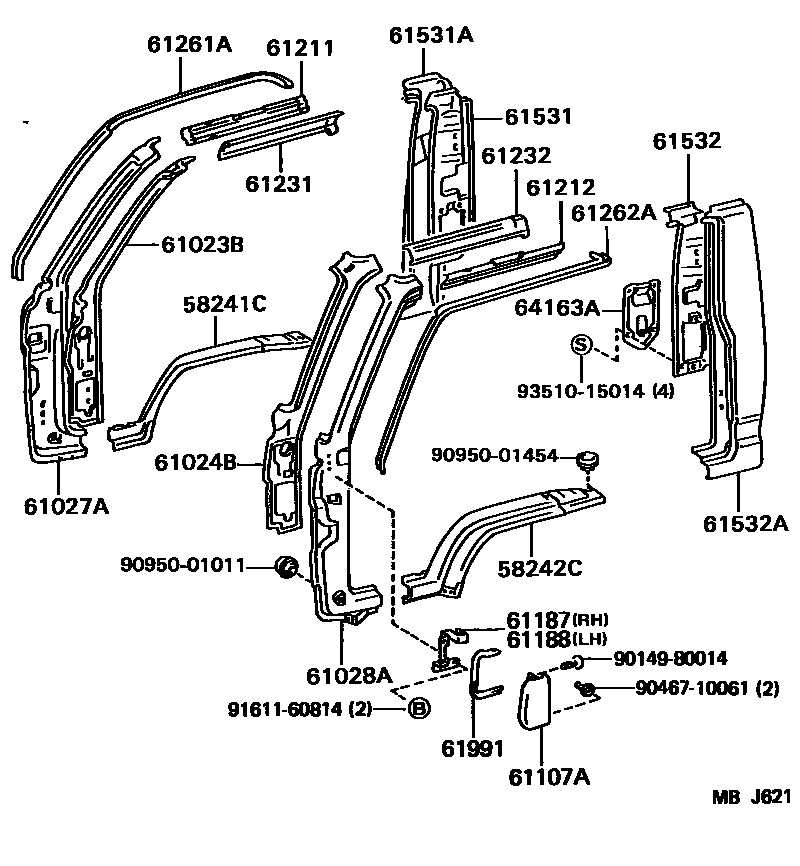

27 parts on this diagram · 2 diagrams in section
