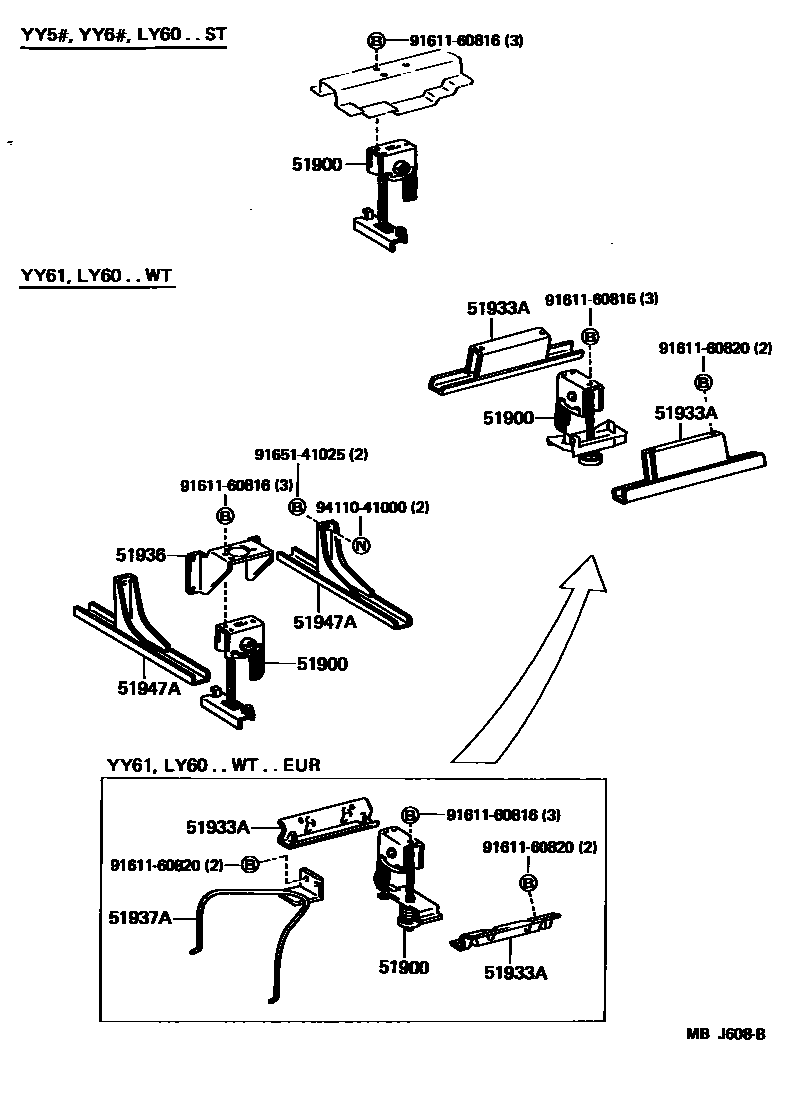

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-25060iLY60,YY5#,6#..ST; LY60,YY61..WT..GEN198508-198708

FR

main51900-25070iLY60,YY61..WT..GEN198508-198708

RR

main51900-25090iLY60,YY61..EUR198508-198608

main51900-35170iLY60,YY61..EUR198608-198708

51933ASTOPPER, SPARE WHEEL, NO.1

main51933-25040×2iLY60,YY61..WT..GEN198508-198708

main51933-25050×2iLY60,YY61..EUR198508-198708

51936BRACKET, SPARE WHEEL CARRIER

main51944-25050iYY61..WT..GEN198508-198708

51937AGUIDE, SPARE WHEEL SUPPORT

main51937-25030iLY60,YY61..WT198508-198708

51947APLATE, SPARE WHEEL CARRIER HINGE

main51947-25010×2iLY60,YY61..WT..GEN198508-198708

9161160816

main91611-60816

9161160820

main91611-60820

9165141025

main91651-41025

9411041000

main94110-41000

9 parts on this diagram · 1 diagram in section
