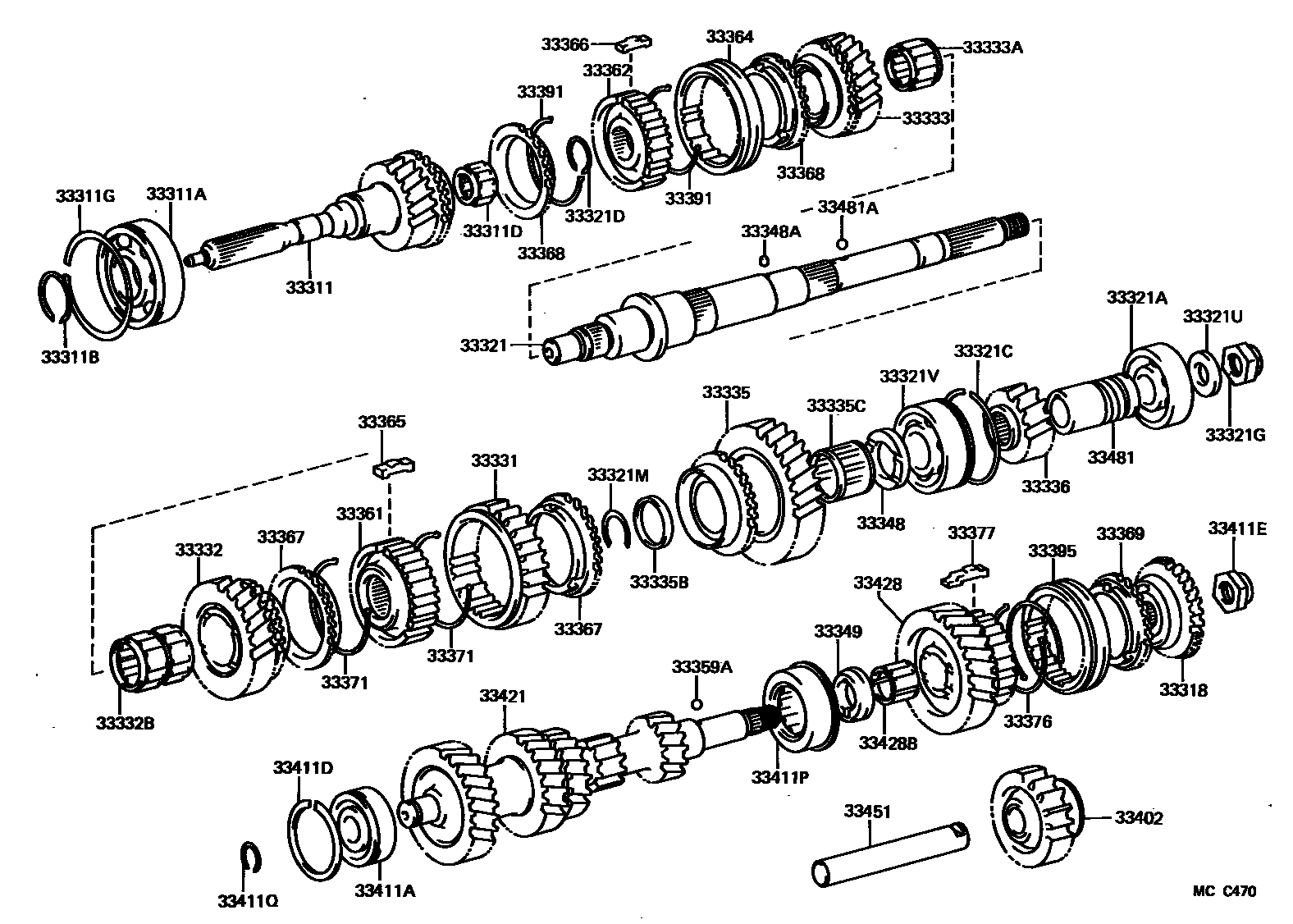

TRANSMISSION GEAR (MTM)
33311SHAFT, INPUT
33311ABEARING (FOR INPUT SHAFT FRONT)
33311BRING, SHAFT SNAP (FOR FRONT BEARING)
T=2.10,MARK A,T=2.1
T=2.15,MARK B,T=2.15
T=2.20,MARK C,T=2.2
T=2.25,MARK D,T=2.25
T=2.30,MARK E,T=2.3
T=2.35,MARK F,T=2.35
T=2.40,MARK G,T=2.4
33311DBEARING, INPUT SHAFT
33311GRING, SHAFT SNAP (FOR FRONT BEARING)
33318PIECE, GEAR SPLINE, NO.5
33321SHAFT, OUTPUT
33321ABEARING (FOR OUTPUT SHAFT REAR)
33321CRING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING)
T=1.65,ID=81.4
33321DRING, SHAFT SNAP (FOR CLUTCH HUB SET)
T=1.80,MARK A,T=1.8
T=1.85,MARK B,T=1.85
T=1.90,MARK C,T=1.9
T=1.95,MARK D,T=1.95
T=2.00,MARK E,T=2.0
T=2.05,MARK F,T=2.05
T=2.10,MARK G,T=2.1
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321MRING, SHAFT SNAP (FOR BEARING)
T=2.30,MARK A,T=2.3
T=2.35,MARK B,T=2.35
T=2.40,MARK C,T=2.4
T=2.45,MARK D,T=2.45
T=2.50,MARK E,T=2.5
T=2.55,MARK F,T=2.55
T=2.60,MARK G,T=2.6
33321UWASHER (FOR MANUAL TRANSMISSION OUTPUT SHAFT SET)
33321VBEARING (FOR OUTPUT SHAFT CENTER)
33331GEAR, REVERSE
33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33335GEAR, 1ST
33335BSPACER(FOR 1ST GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
33348WASHER, 1ST GEAR THRUST
33348APIN OR BALL (FOR 1ST GEAR THRUST WASHER)
33349WASHER, 5TH GEAR THRUST
33359ABALL, 5TH GEAR BEARING INNER RACE LOCK
33361HUB, TRANSMISSION CLUTCH, NO.1
33362HUB, TRANSMISSION CLUTCH, NO.2
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33376SPRING, SYNCHROMESH SHIFTING KEY (FOR NO.3 CLUTCH HUB)
33377KEY, SYNCHROMESH SHIFTING (FOR NO.3 CLUTCH HUB)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33411ABEARING OR ROLLER(FOR COUNTER GEAR FRONT)
33411DRING, COUNTER GEAR FRONT BEARING SNAP, NO.1
T=1.07,OD=62
33411ENUT(FOR COUNTER GEAR SHAFT)
33411PBEARING, COUNTERSHAFT CENTER
33411QRING, COUNTER GEAR FRONT BEARING SNAP, NO.2
T=2.50-2.55,T=2.1
T=2.00,MARK A,T=2.0
T=2.05,MARK B,T=2.05
T=2.15,MARK D,T=2.15
T=2.20,MARK E,T=2.2
33428GEAR, COUNTERSHAFT 5TH
33428BBEARING (FOR COUNTER 5TH GEAR)
33451SHAFT, REVERSE IDLER GEAR
33481GEAR, SPEEDOMETER DRIVE (MTM)
N=9,MARK 9X33-35
N=10,MARK 10X34-36
33481AKEY OR BALL, SPEEDOMETER DRIVE GEAR (MTM)
52 parts on this diagram · 1 diagram in section
