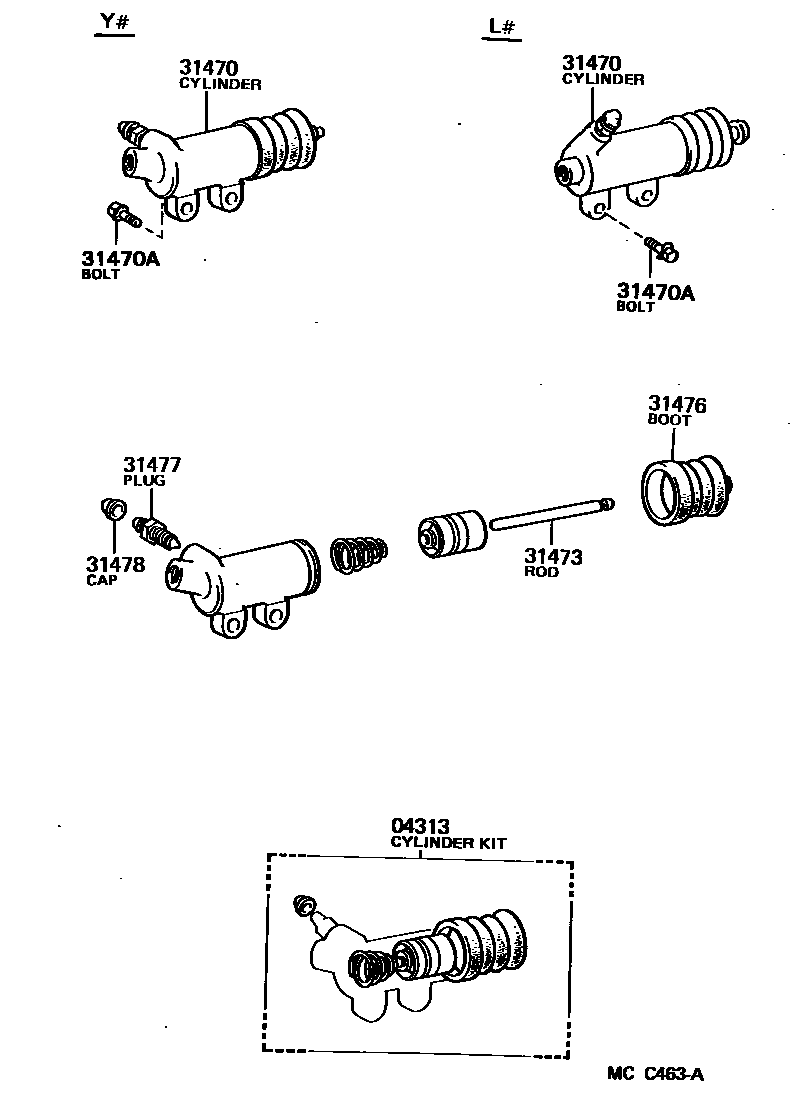

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-22020iLY60,YY5#,6#198508-198708

sub04313-12030

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-25031iLY60198508-198708

sub31470-35110

main31470-35070iYY5#,6#198508-198708

sub31470-35071

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-60820×2iLY60,YY5#,6#198508-198708

*8-1.25PX20-20

sub91611-G0820

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-22010iLY60,YY5#,6#198508-198708

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iLY60,YY5#,6#198508-198708

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iLY60,YY5#,6#198508-198708

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iLY60,YY5#,6#198508-198708

7 parts on this diagram · 1 diagram in section
