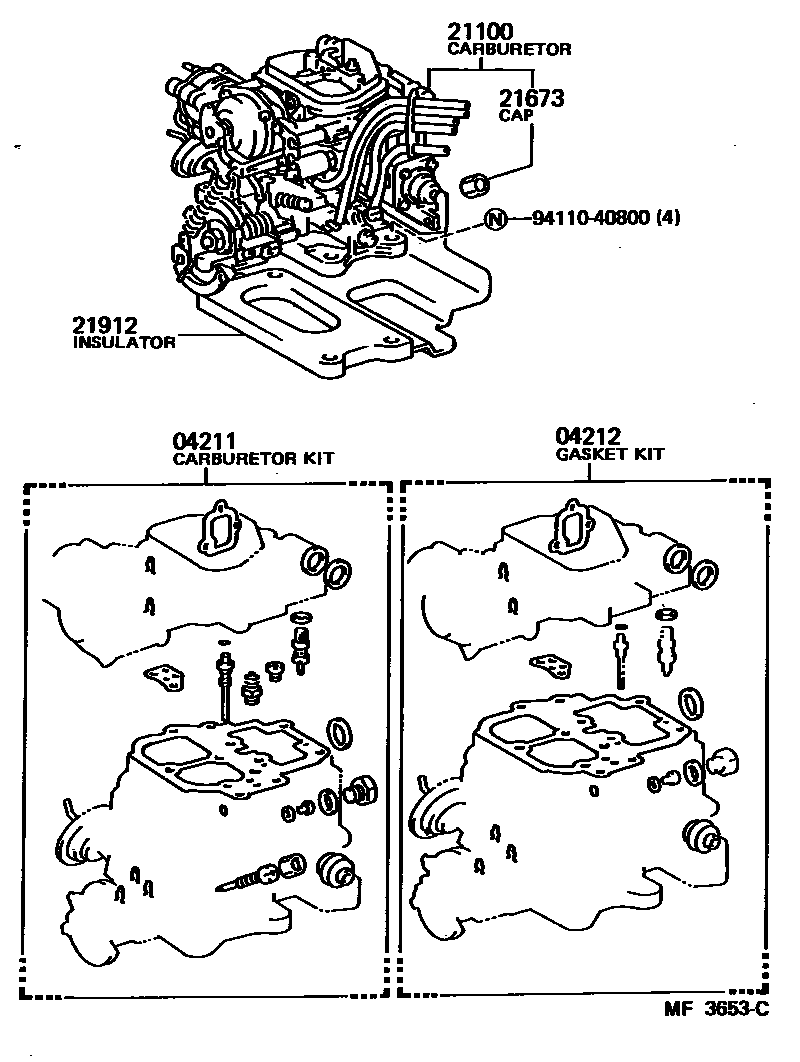

CARBURETOR ASSEMBLY

04211CARBURETOR KIT

main04211-71050i3Y..YY61..EUR198608-198708

main04211-71070i3Y..YY52,61..LHD..GEN198608-198708

04212GASKET KIT, CARBURETOR

main04212-72010i2Y,3Y..YY5#,6#198508-198708

21100CARBURETOR ASSY

main21100-71100i3Y..YY61..RHD198508-198708

main21100-71120i2Y..YY51,60198508-198708

21673CAP, IDLE LIMIT

main21673-13280i2Y..YY51,60198508-198708

21912INSULATOR, CARBURETOR HEAT

main21912-72010i2Y,3Y..YY5#,6#198508-198708

9411040800

main94110-40800

6 parts on this diagram · 1 diagram in section
