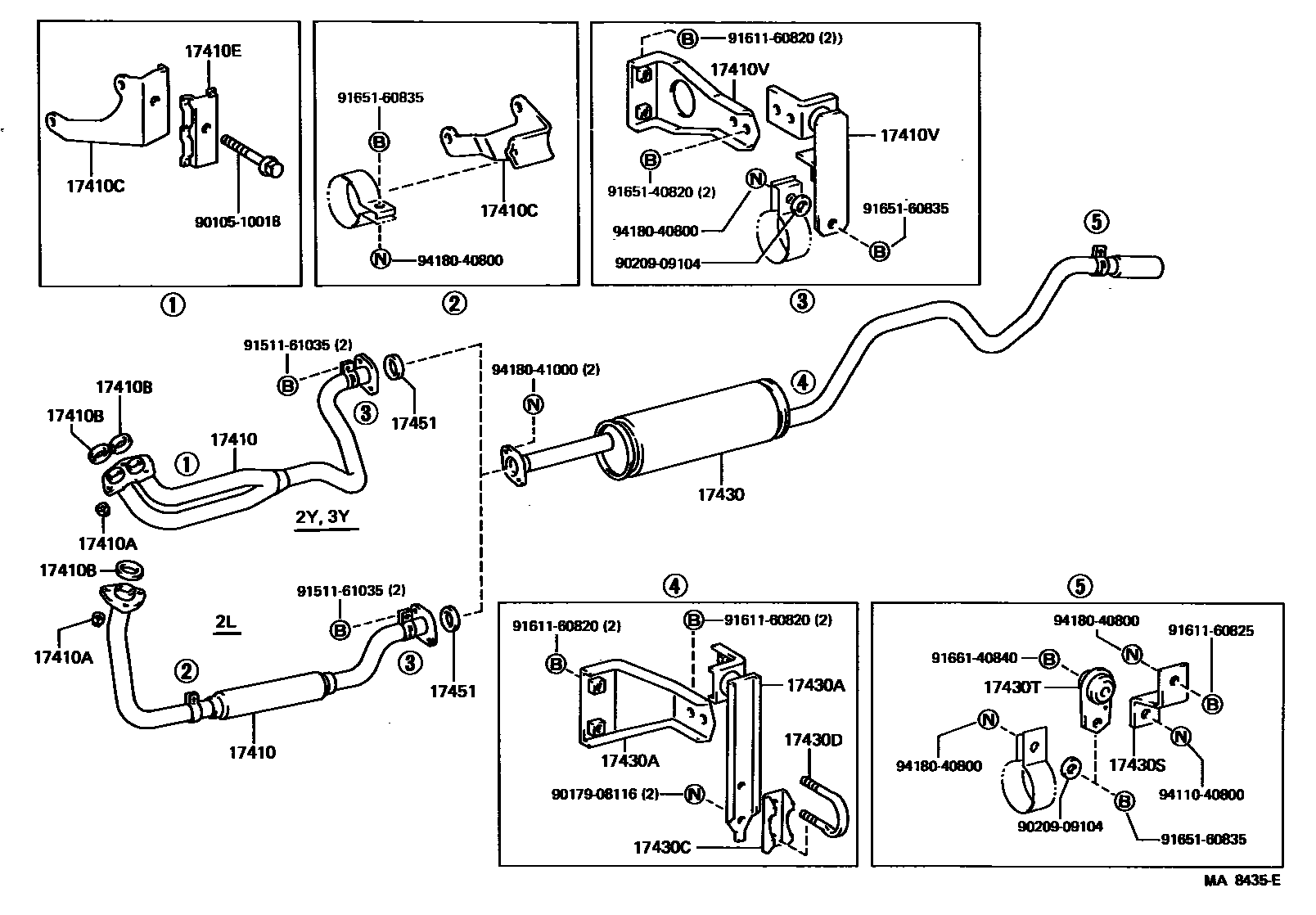

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-54560i2L..LY60..EUR198609-198708

SWITZERLAND SPEC

main17410-54570i2L..LY60198508-198708

main17410-71100i2Y..YY51,60198508-198708

main17410-73130i3Y..YY52,61198508-198708

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070×3i2L,2Y,3Y..LY60,YY5#,6#198508-198708

17410BGASKET, EXHAUST PIPE

main90917-06001×2i2Y,3Y..YY5#,6#198511-198708

main90917-06004i2L..LY60198508-198708

main90917-06026×2i2Y,3Y..YY51,6#..GEN198508-198511

17410CBRACKET, EXHAUST PIPE FRONT (FOR FRONT)

main17571-54280i2L..LY60198508-198708

main17571-71040i2Y..YY51,60198508-198708

main17571-73020i3Y..YY52,61198508-198708

17410ECLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)

main17589-27010i2Y,3Y..YY5#,6#198508-198708

17410VBRACKET, EXHAUST PIPE FRONT (FOR REAR)

main17562-54140i2L,2Y,3Y..LY60,YY5#,6#198508-198708

PIPE SIDE

main17572-54140i2L,2Y,3Y..LY60,YY5#,6#198508-198708

BODY SIDE

17430PIPE ASSY, EXHAUST, TAIL

main17430-54760i2L,3Y..LY60,YY61..EUR198508-198708

main17430-73030i2Y,3Y..YY5#198508-198708

main17430-73080i2L,2Y,3Y..LY60,YY6#..ARL,GEN198508-198708

17430ABRACKET, EXHAUST TAILPIPE(FOR FRONT)

main17563-54060i2L,2Y,3Y..LY60,YY5#,6#198508-198708

PIPE SIDE

main17573-54050i2L,2Y,3Y..LY60,YY5#,6#198508-198708

BODY SIDE

17430CCLAMP NO.1, EXHAUST TAILPIPE (FOR FRONT)

main90917-04021i2L,2Y,3Y..LY60,YY5#,6#198508-198708

17430DBOLT OR RING, EXHAUST TAILPIPE (FOR FRONT)

main90117-08205i2L,2Y,3Y..LY60,YY5#,6#198508-198708

17430SBRACKET, EXHAUST TAILPIPE (FOR REAR)

main17573-44020i2L,2Y,3Y..LY60,YY5#,6#198508-198708

17430TCUSHION, EXHAUST TAILPIPE (FOR REAR)

main90917-08009i2L,2Y,3Y..LY60,YY5#,6#198508-198708

17451GASKET, EXHAUST PIPE

main90917-06004i2L,2Y,3Y..LY60,YY5#,6#198508-198708

9010510018

main90105-10018

9017908116

main90179-08116

9020909104

main90209-09104

9151161035

main91511-61035

9161160820

main91611-60820

9161160825

main91611-60825

9165140820

main91651-40820

9165160835

main91651-60835

9166140840

main91661-40840

9411040800

main94110-40800

9418040800

main94180-40800

9418041000

main94180-41000

25 parts on this diagram · 1 diagram in section
