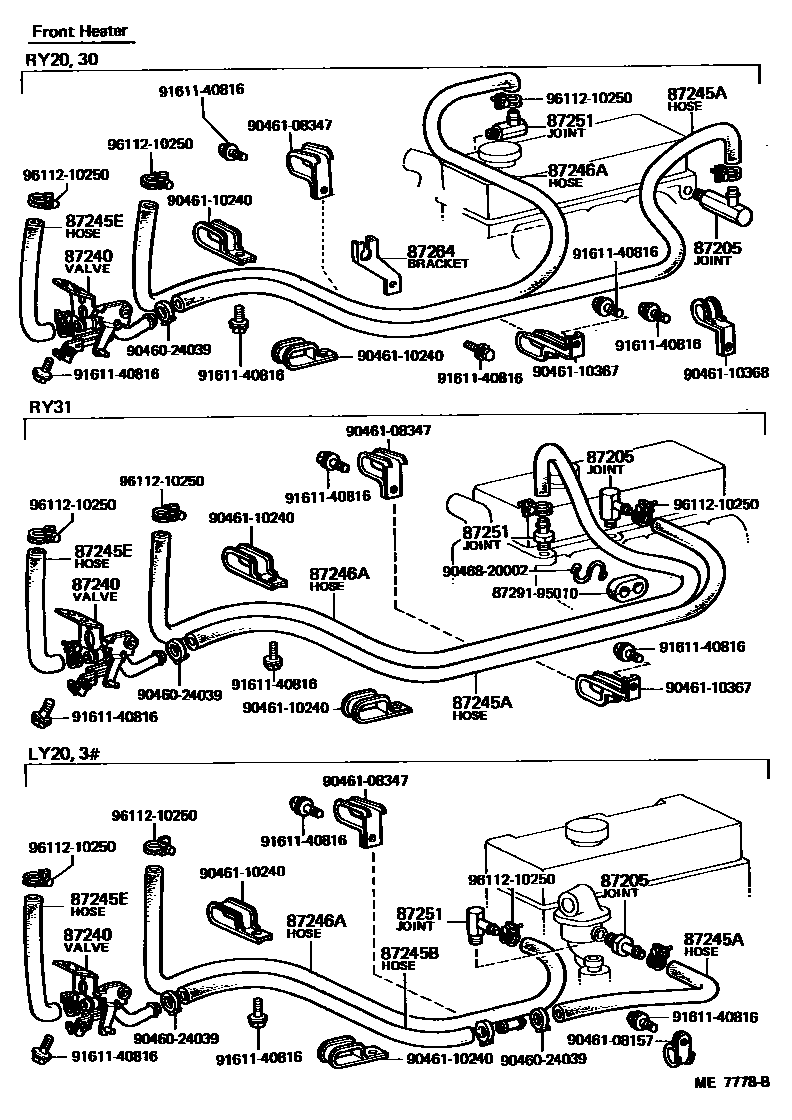

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87205JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALVE

main87251-30200iLY20,3#197903-198507

main87251-36030iJY30197903-198308

main87251-95400iRY31197903-198507

main87251-95A02iRY20,30197903-198507

87240VALVE ASSY, HEATER WATER

main87240-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

main87240-95011iJY30,RY20,3#..LHD197903-198507

87245AHOSE, HEATER WATER, INLET A

main87245-95025iRY31..LHD197903-198308

main87245-95026iJY30..LHD197903-198308

main87245-95027iRY20,30..LHD197903-198507

main87245-95028iLY20,3#197903-198507

main87245-95030iRY20,30..RHD197903-198507

main99552-32000iJY30..RHD197903-198308

*H,L=1600

sub99556-32000

main99556-31400iRY31198408-198507

sub99556-31930

87245BHOSE, HEATER WATER, INLET B

main99552-31000iLY20,3#197903-198408

*H,L=840

sub99556-31000

main99556-30840iLY31198408-198507

*H,L=840

sub99556-30980

87245EHOSE, HEATER WATER, INLET E

main87245-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

main87245-95011iJY30,RY20,3#..LHD197903-198507

sub87245-14500

87246AHOSE, HEATER WATER, OUTLET A

main87245-95017iRY20,30..RHD197903-198507

main87245-95018iRY31..RHD197903-198507

main87245-95020iRY31..LHD197903-198308

main87245-95021iRY20,30..LHD197903-198507

sub99552-33400

main87245-95023iJY30..RHD197903-198308

main87245-95024iJY30..LHD197903-198308

main99552-32000iLY20,3#197903-198408

*H,L=1260

sub99556-32000

main99556-31260iLY31198408-198507

sub99556-31930

87251JOINT OR UNION, WATER HOSE THROUGH

main87251-30190iRY20,30197903-198507

main87251-30200iRY31..RHD197903-198507

main87251-30230iLY20,3#197903-198507

main87251-95010iRY31..LHD197903-198308

87264BRACKET, HEATER WATER HOSE

main87241-95010iRY20,30197903-198507

8729195010STAY, HEATER

main87291-95010

9046024039

main90460-24039

9046108157

main90461-08157

9046108347

main90461-08347

9046110240

main90461-10240

9046110367

main90461-10367

9046110368

main90461-10368

9046820002

main90468-20002

9161140816

main91611-40816

9611210250

main96112-10250

18 parts on this diagram · 2 diagrams in section
