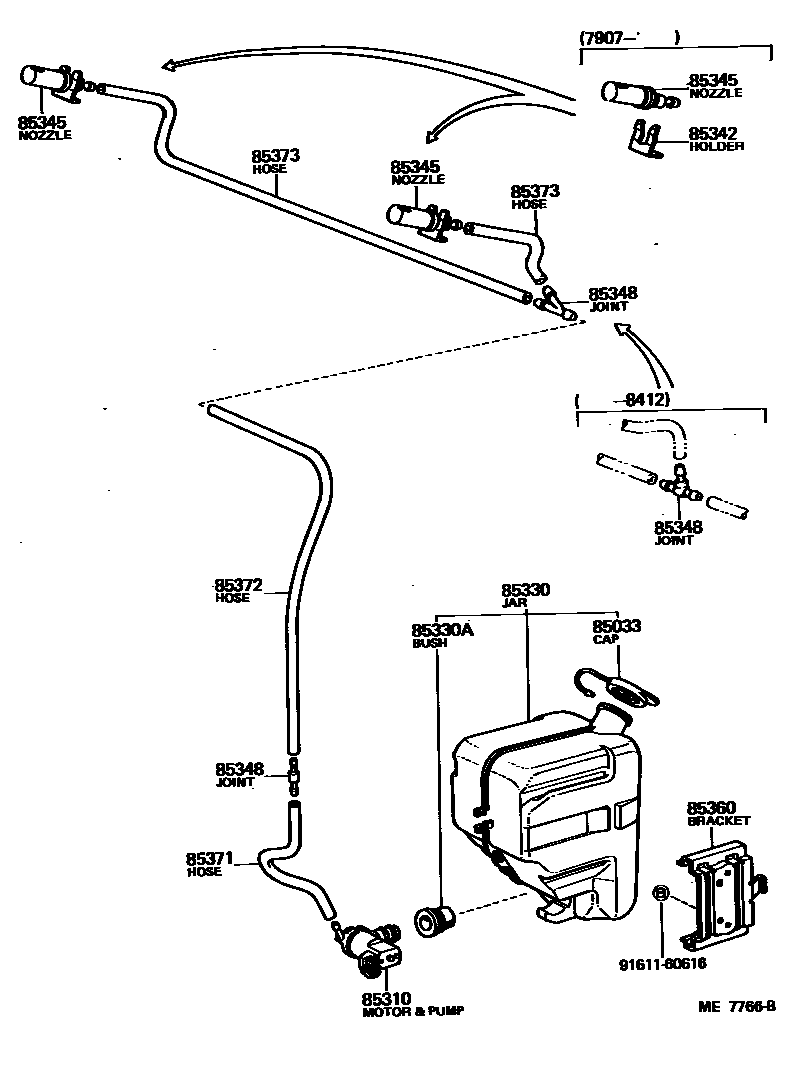

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-36120iJY30,LY20,3#,RY20,3#197903-198507

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-20100iJY30,LY20,3#,RY20,3#197903-198507

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iJY30,LY20,3#,RY20,3#197903-198507

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iJY30,LY20,3#,RY20,3#197903-198507

85342HOLDER, WASHER NOZZLE

main85342-95010×2iJY30,LY20,3#,RY20,3#197907-198507

85345NOZZLE, WINDSHIELD WASHER

main85035-95010×2iJY30,LY20,30,RY20,3#197903-197907

main85035-95011×2iJY30,LY20,3#,RY20,3#197907-198311

main85035-95012×2iLY31,RY20,3#198311-198507

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85348-12011iJY30,LY20,3#,RY20,3#197903-198412

3-WAY

main85355-14010iLY31,RY20,3#198412-198507

3-WAY

main85355-87201×2iJY30,LY20,3#,RY20,3#197903-198507

STRAIGHT

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-95A00iJY30,LY20,3#,RY20,3#197903-198507

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06013iJY30,LY20,3#,RY20,3#197903-198507

L=1450(*H,L=200)

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-06013iJY30,LY20,3#,RY20,3#197903-198412

L=1000(*H,L=850)

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90446-06013iLY31,RY20,3#198412-198507

L=1800(*H,L=120)

main90446-06277iJY30,LY20,30,RY20,3#197903-197907

L=1000(*H,L=750)

main90446-07013iJY30,LY20,3#,RY20,3#197907-198507

L=750

9161160616

main91611-60616

12 parts on this diagram · 1 diagram in section
