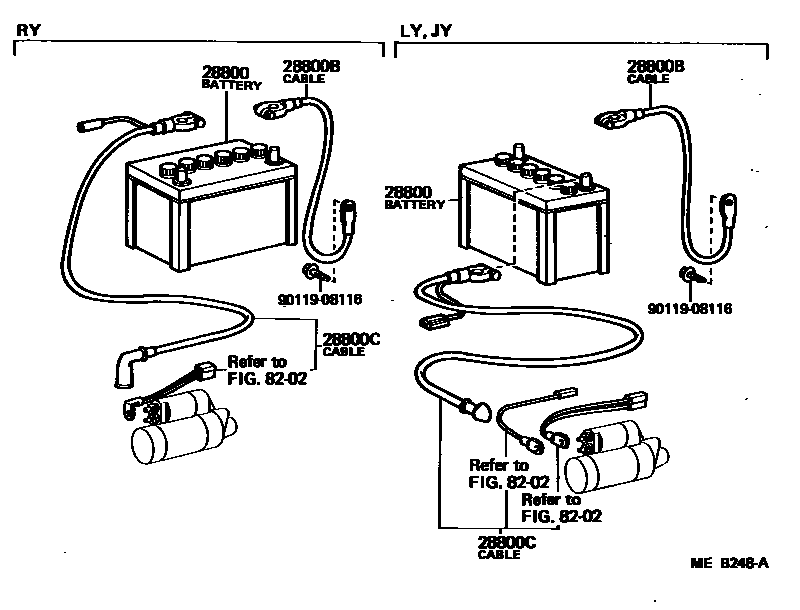

BATTERY & BATTERY CABLE

28800BATTERY

main28800-14030198201-198507

main28800-26040197903-198201

main28800-30082197903-198201

main28800-31080198201-198507

main28800-46020197903-198201

main28800-48060198201-198507

main28800-54030197903-198201

main28800-54140198201-198507

28800BCABLE, BATTERY TO GROUND

main82046-95010198201-198507

main90982-02161197903-198204

main90982-02164197903-198507

main90982-02165197903-198204

main90982-02166198201-198507

main90982-02167197903-198201

main90982-02168197903-198204

main90982-02173197903-198507

main90982-02197197907-198201

main90982-02198197907-198201

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-95022198204-198507

main90982-01270197903-198008

main90982-01271197903-198301

main90982-01272197903-198301

main90982-01273197903-198008

main90982-01275197903-198308

main90982-01276197903-198204

main90982-01277197903-198507

main90982-01278197903-198204

main90982-01279197903-198507

main90982-01281197903-198204

main90982-01307197903-198204

main90982-01308197903-198301

main90982-01319197903-198507

main90982-01382198008-198201

main90982-01383198008-198507

8202WIRING & CLAMP

→ Go to FIG 82-02

9011908116

main90119-08116

5 parts on this diagram · 1 diagram in section
