HEADLAMP

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-95010iJY30,LY20,3#,RY20,3#197903-198507

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-95010iJY30,LY20,3#,RY20,3#197903-198507

81110HEADLAMP ASSY, RH

main81110-29885iJY30,LY20,3#,RY20,3#..RHD197903-198507

main81110-29895iJY30,RY20,3#..LHD197903-198507

main81110-80010iJY30,RY20,3#..LHD197903-198107

SEMI-SEALED,WHITE

main81110-80149iLY3#,RY31..ARL198105-198507

HALOGEN

main81110-80189iJY30,RY20,3#..LHD198107-198507

SEMI-SEALED,YELLOW

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iJY30,RY20,3#..LHD197903-198107

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014×2iJY30,RY20,3#..LHD198107-198507

12V 45/40W,YELLOW,12V 45/40W,YELLOW

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13013×2iJY30,RY20,3#..LHD197903-198107

12V 45/40W,WHITE,12V 45/40W,WHITE

main90981-13014×2iJY30,RY20,3#..LHD198107-198507

12V 45/40W,YELLOW,12V 45/40W,YELLOW

81110KHEADLAMP KIT, W/O SEALED BEAM, RH

main04817-25010iLY3#,RY31..ARL198105-198507

HALOGEN

81110SSEALED BEAM UNIT, NO.1

main90981-02011×2iJY30,LY20,3#,RY20,3#197903-198507

12V 37.5W,*WB,12V 37.5W

main90981-02018×2iJY30,RY20,3#..LHD197903-198107

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-02020×2iJY30,RY20,3#..LHD198107-198507

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

main90981-02045×2iLY3#,RY31..ARL198105-198507

12V 50W,HALOGEN

81110TSEALED BEAM UNIT, NO.2

main90981-02012×2iJY30,LY20,3#,RY20,3#..RHD197903-198507

12V 37.5/50W,*WB,12V 37.5/50W

main90981-02013×2iJY30,RY20,3#..LHD197903-198507

12V 37.5/50W,*WB,12V 37.5/50W

main90981-02019×2iJY30,LY20,30,RY20,3#197903-198107

12V 45/40W,*WSB,SEMI-SEALED,WHITE

main90981-02021×2iJY30,LY20,3#,RY20,3#198107-198507

12V 45/40W,*YSB,SEMI-SEALED,YELLOW

main90981-02046×2iLY3#,RY31..ARL198105-198507

12V 40/60W,HALOGEN

81111ARING, SEALED BEAM RETAINING, NO.1 RH

main81111-20280iJY30,LY20,3#,RY20,3#197903-198507

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-20280iJY30,LY20,3#,RY20,3#197903-198507

81113RING, SEALED BEAM MOUNTING, NO.1 RH

main81153-30150iJY30,LY20,30,RY20,3#197903-198210

main81153-95010iJY30,LY3#,RY20,3#198210-198507

81114RING, SEALED BEAM MOUNTING, NO.2 RH

main81114-30170iJY30,LY20,30,RY20,3#197903-198210

main81114-95010iJY30,LY3#,RY20,3#198210-198507

81121SPRING, HEADLAMP TENSION

main81121-20100×4iJY30,LY20,3#,RY20,3#197903-198507

81131SCREW, HEADLAMP ADJUSTING

main81131-20043×8iJY30,LY20,3#,RY20,3#197903-198507

81150HEADLAMP ASSY, LH

main81150-29885iJY30,LY20,3#,RY20,3#..RHD197903-198507

main81150-29895iJY30,RY20,3#..LHD197903-198507

main81150-80010iJY30,RY20,3#..LHD197903-198107

SEMI-SEALED,WHITE

main81150-80146iLY3#,RY31..ARL198105-198507

HALOGEN

main81150-80186iJY30,RY20,3#..LHD198107-198507

SEMI-SEALED,YELLOW

81150KHEADLAMP KIT, W/O SEALED BEAM, LH

main04818-25010iLY3#,RY31..ARL198105-198507

HALOGEN

81151ARING, SEALED BEAM RETAINING, NO.1 LH

main81111-20280iJY30,LY20,3#,RY20,3#197903-198507

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-20280iJY30,LY20,3#,RY20,3#197903-198507

81153RING, SEALED BEAM MOUNTING, NO.1 LH

main81113-30170iJY30,LY20,30,RY20,3#197903-198210

main81113-95010iJY30,LY3#,RY20,3#198210-198507

81154RING, SEALED BEAM MOUNTING, NO.2 LH

main81154-30150iJY30,LY20,30,RY20,3#197903-198210

main81154-95010iJY30,LY3#,RY20,3#198210-198507

8113612571PROTECTOR, HEADLAMP, NO.1 RH

main81136-12571

9165140616

main91651-40616

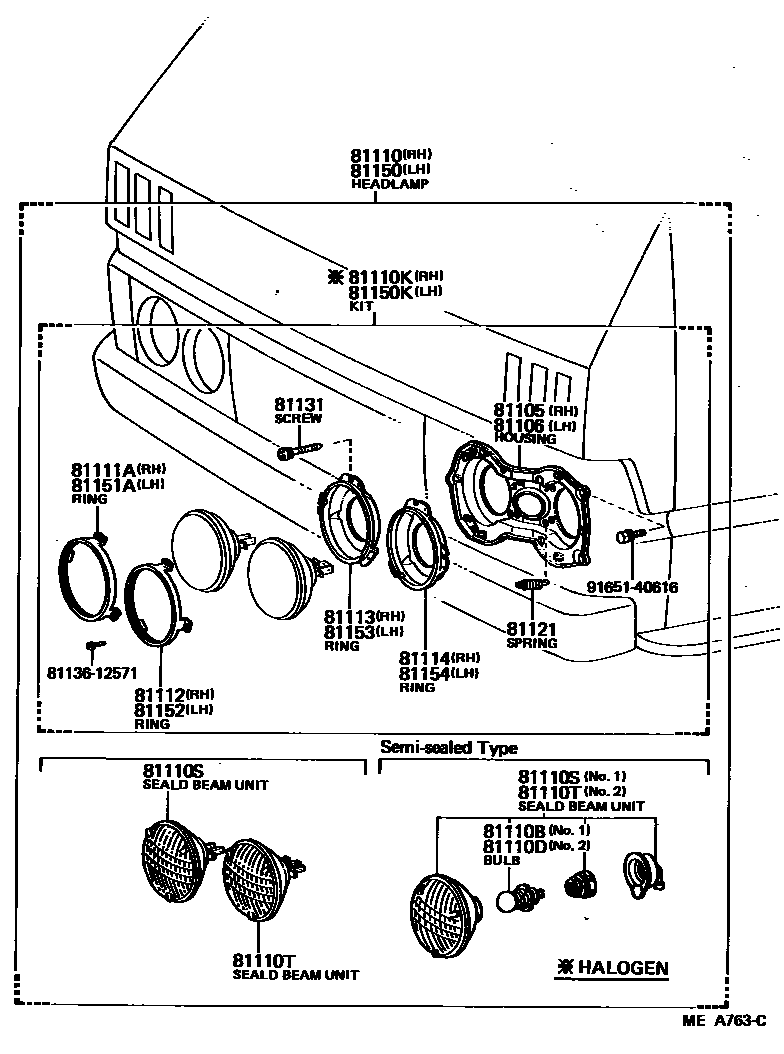

22 parts on this diagram · 1 diagram in section
