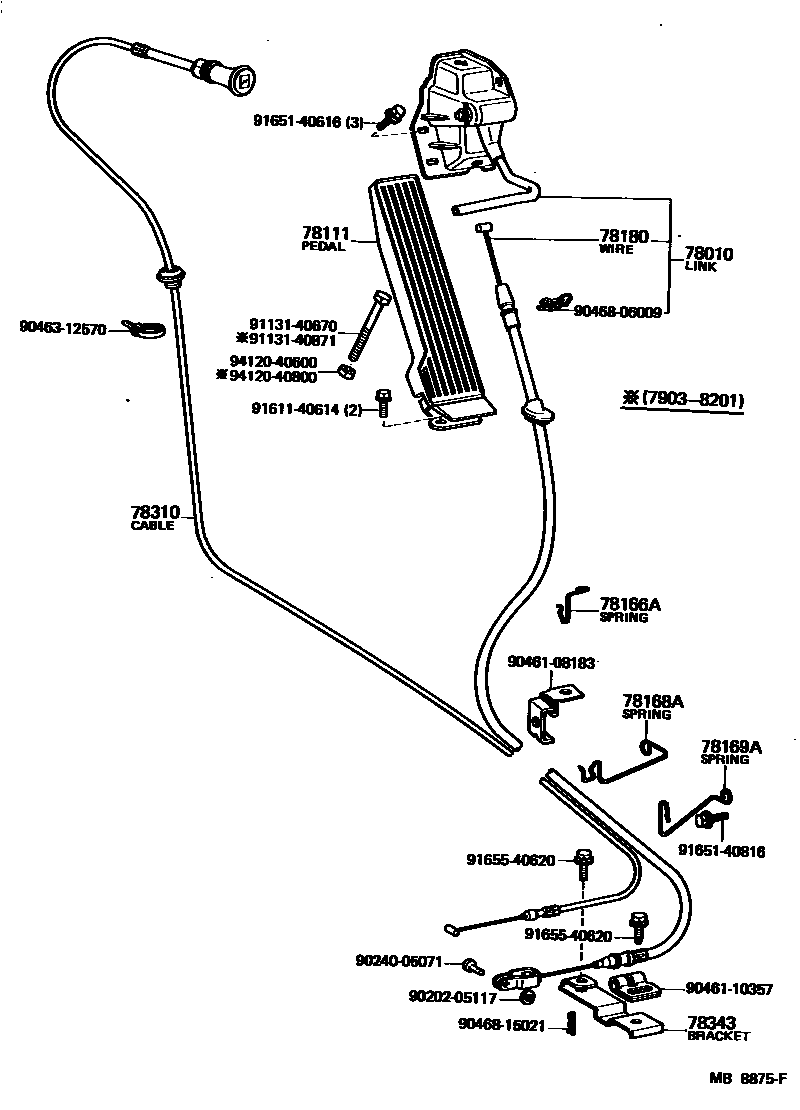

ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

78010LINK, ACCELERATOR

main78180-95036iRY20,30..RHD197903-198201

main78180-95037iRY31..RHD197903-197904

main78180-95038iJY30..RHD197903-198201

main78180-95039iLY20,30197903-198201

main78180-95040iRY20,30..LHD197903-198201

main78180-95041iRY31..LHD197903-197904

main78180-95042iJY30..LHD197903-198201

main78180-95043iRY31..RHD197904-198201

main78180-95044iRY31..LHD197904-198201

main78180-95046iRY20,30..RHD198201-198507

main78180-95047iRY31..ARL198201-198507

main78180-95048iJY30..T1198201-198308

main78180-95049iLY3#198201-198507

main78180-95050iRY20,30..LHD198201-198507

main78180-95051iRY31..GEN198201-198308

main78180-95052iJY30..T3198201-198308

78111PEDAL, ACCELERATOR

main78110-95014iJY30,LY20,3#,RY20,3#197903-198507

78166ASPRING, CLAMP, NO.1

main78166-95010iJY30,LY20,3#,RY20,3#..RHD197903-198507

78168ASPRING, CLAMP, NO.3

main78168-95010iJY30,RY20,3#197903-198507

78169ASPRING, CLAMP, NO.4

main78169-95014iRY20,3#197903-198507

78180WIRE ASSY, ACCELERATOR

main78150-95042iRY20,30..RHD197903-198507

main78150-95044iJY30..RHD197903-198308

main78150-95045iLY20,30197903-198201

main78150-95046iRY20,30..LHD197903-198507

main78150-95048iJY30..LHD197903-198308

main78150-95050iRY31197903-198507

main78150-95052iLY3#198201-198507

78310CABLE ASSY, CHOKE

main78310-95026iRY20,30..RHD197903-198201

main78310-95027iRY31..RHD197903-198201

main78310-95028iRY20,30..LHD197903-198201

main78310-95029iRY31..LHD197903-198201

main78310-95030iRY20,30..RHD198201-198507

main78310-95031iRY31..ARL198201-198507

main78310-95032iRY20,30..LHD198201-198507

main78310-95033iRY31..GEN198201-198308

78343BRACKET, CHOKE ROD

main78302-95602iRY20,30197903-198507

main78312-95011iRY20,3#..LHD197903-198507

INSTRUMENT PANEL

9020205117

main90202-05117

9024005071

main90240-05071

9046108183

main90461-08183

9046110357

main90461-10357

9046312570

main90463-12570

9046806009

main90468-06009

9046815021

main90468-15021

9113140670

main91131-40670

9113140871

main91131-40871

9161140614

main91611-40614

9165140616

main91651-40616

9165140816

main91651-40816

9165540620

main91655-40620

9412040600

main94120-40600

9412040800

main94120-40800

23 parts on this diagram · 7 diagrams in section
