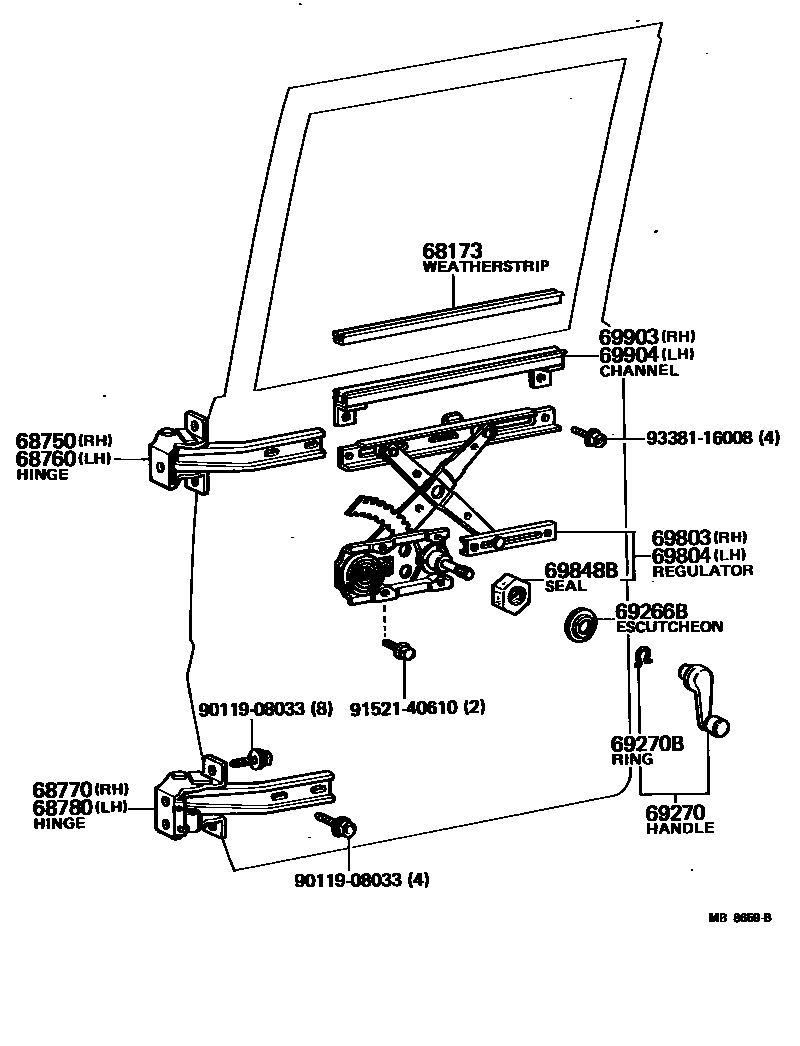

REAR DOOR WINDOW REGULATOR & HINGE

68173WEATHERSTRIP, REAR DOOR GLASS CHANNEL

main69981-95701197903-198507

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-95400198311-198507

main68750-95A00197903-198311

68760HINGE ASSY, REAR DOOR, UPPER LH

main68750-95400198311-198507

main68750-95A00197903-198311

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-95010197903-198311

main68770-95400198311-198507

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-95010197903-198311

main68780-95400198311-198507

69266BESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)

main69272-30010197903-198507

69270HANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-95404197903-198507

69270BRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01274197903-198507

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69830-95013197903-198507

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69840-95014197903-198507

69848BSEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)

main69848-95700197903-198507

69903CHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69901-95701197903-198507

69904CHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69901-95701197903-198507

9011908033

main90119-08033

9152140610

main91521-40610

9338116008

main93381-16008

16 parts on this diagram · 1 diagram in section
