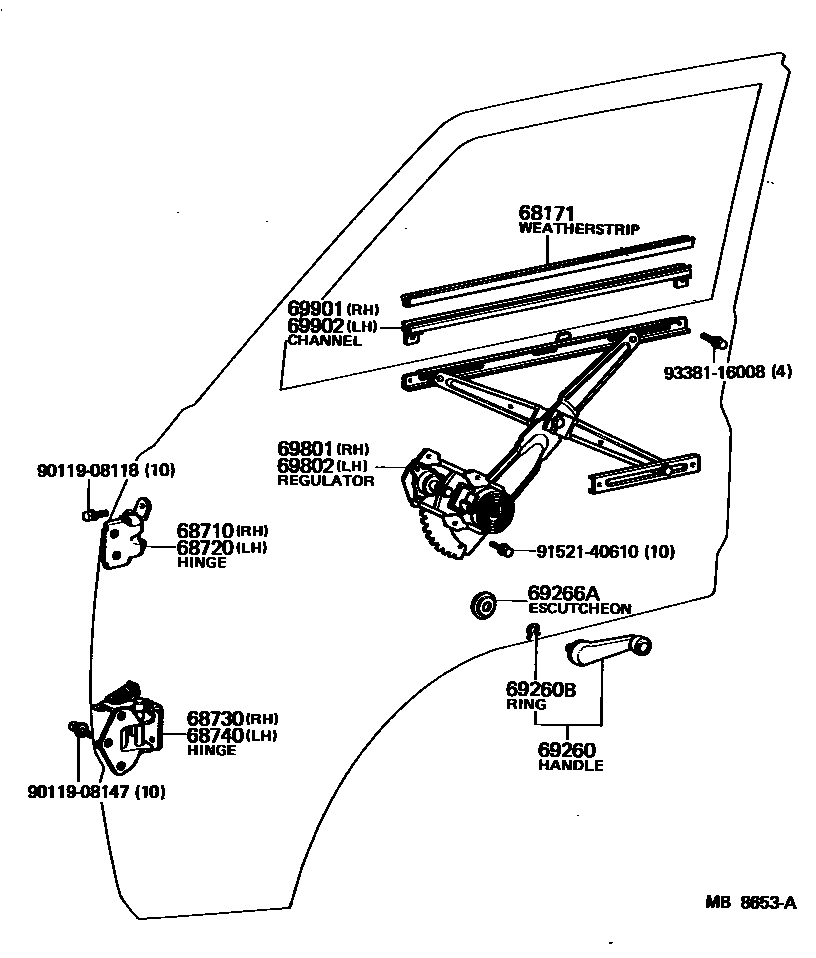

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main69981-95701×2iJY30,LY20,3#,RY20,3#197903-198507

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-95402iJY30,LY20,3#,RY20,3#197903-198507

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-95400iJY30,LY20,3#,RY20,3#197903-198507

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-30050iJY30,LY20,3#,RY20,3#197903-198507

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-30030iJY30,LY20,3#,RY20,3#197903-198507

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-95404×2iJY30,LY20,3#,RY20,3#197903-198507

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01274×2iJY30,LY20,3#,RY20,3#197903-198507

69266AESCUTCHEON, DOOR REGULATOR HANDLE(FOR FRONT DOOR)

main69272-30010×2iJY30,LY20,3#,RY20,3#197903-198507

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-95018iJY30,LY20,3#,RY20,3#197903-198507

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-95018iJY30,LY20,3#,RY20,3#197903-198507

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-95701iJY30,LY20,3#,RY20,3#197903-198507

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-95701iJY30,LY20,3#,RY20,3#197903-198507

9011908118

main90119-08118

9011908147

main90119-08147

9152140610

main91521-40610

9338116008

main93381-16008

16 parts on this diagram · 1 diagram in section
