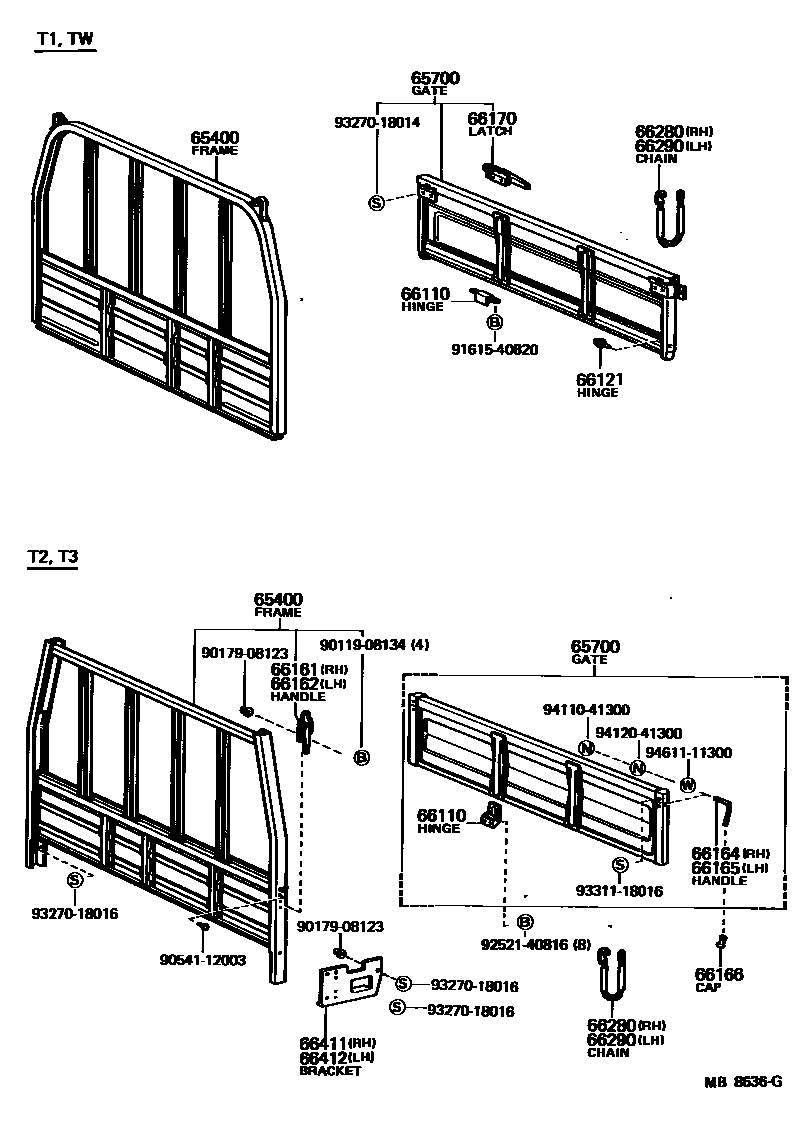

REAR BODY GUARD FRAME & TAIL GATE

65400FRAME ASSY, REAR BODY GUARD

main65400-95028iLY20..CBU;RY20,3#..T1..15T197903-198201

main65400-95029iRY30..125197903-198201

main65400-95030iJY30,RY31..T1..20T197903-198201

main65400-95031iLY30;LY20..IV;RY20,3#..T3..15T197903-198201

sub65400-95038

main65400-95033iJY30,RY31..T3..20T197903-198201

sub65400-95039

main65400-95044iLY3#,RY20,3#..T3..15T198201-198507

main65400-95045iRY30..WT198409-198507

main65400-95046iJY30,RY31..T3..20T198201-198308

main65400-95052iRY20,30..T1198201-198507

main65400-95053iJY30,RY31..T1198201-198308

main65400-95054iLY3#,RY30..125198201-198507

65700GATE ASSY, REAR BODY TAIL

main65700-95023iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

main65700-95025iLY20..CBU;JY30,RY20,3#..T1,TW197903-198201

main65700-95027iLY30;LY20..IV;JY30,RY20,3#..T3198009-198201

main65700-95028iJY30,LY3#,RY20,3#..T2,T3198201-198507

sub65700-95031

main65700-95030iJY30,LY3#,RY20,3#..T1,TW198201-198507

sub65700-25010

66110HINGE ASSY, TAIL GATE

main66110-95014×2iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

main66110-95016×4iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

main66110-95020×4iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3198009-198507

66121HINGE, TAIL GATE, MALE

main66121-95012×2iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

66161HANDLE, SIDE GATE LATCH, RH

main65480-92700iLY30;LY20..IV;JY30,RY20,3#..T3198009-198201

main65480-95010iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

main65480-95011iJY30,LY3#,RY20,3#..T2,T3198201-198507

66162HANDLE, SIDE GATE LATCH, LH

main65480-95011iJY30,LY3#,RY20,3#..T2,T3198201-198507

main65490-92701iLY30;LY20..IV;JY30,RY20,3#..T3198009-198201

main65490-95010iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

66164HANDLE, TAIL GATE LATCH, RH

main66163-95011iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

main66163-95013iJY30,LY3#,RY20,3#..T2,T3198201-198507

sub66264-95010

main66163-95D00iLY30;LY20..IV;JY30,RY20,3#..T3198009-198201

66165HANDLE, TAIL GATE LATCH, LH

main66164-95011iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

main66164-95013iJY30,LY3#,RY20,3#..T2,T3198201-198507

sub66265-95011

main66164-95D00iLY30;LY20..IV;JY30,RY20,3#..T3198009-198201

66166CAP, GATE LATCH HANDLE

main66165-87402×2iJY30,LY3#,RY20,3#..T2,T3198201-198507

main66165-95010×2iLY30;LY20..IV;JY30,RY20,3#..T3197903-198201

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-95402×2iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)197903-198507

66280CHAIN ASSY, TAIL GATE, RH

main66280-95012iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

main66280-95013iLY20..CBU;JY30,RY20,3#..T1,TW197903-198009

main66280-95014iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3198009-198507

sub66280-95016

main66280-95015iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)198009-198507

sub66280-95403

66290CHAIN ASSY, TAIL GATE, LH

main66280-95012iLY30;LY20..IV;JY30,RY20,3#..T3197903-198009

main66280-95013iLY20..CBU;JY30,RY20,3#..T1,TW197903-198009

main66280-95014iLY20..IV;LY30..15T;JY30,LY31,RY20,3#..T2,T3198009-198507

sub66280-95016

main66280-95015iLY20..CBU;RY20,3#..T1,TW;JY30,LY3#..(T1,TW)..(125,20T)198009-198507

sub66280-95403

66411BRACKET, GUARD FRAME, RH

main66411-95022iJY30,LY3#,RY20,3#..T2,T3198201-198507

66412BRACKET, GUARD FRAME, LH

main66412-95022iJY30,LY3#,RY20,3#..T2,T3198201-198507

9011908134

main90119-08134

9017908123

main90179-08123

9054112003

main90541-12003

9161540820

main91615-40820

9252140816

main92521-40816

9327018014

main93270-18014

9327018016

main93270-18016

9331118016

main93311-18016

9411041300

main94110-41300

9412041300

main94120-41300

9461111300

main94611-11300

25 parts on this diagram · 1 diagram in section
