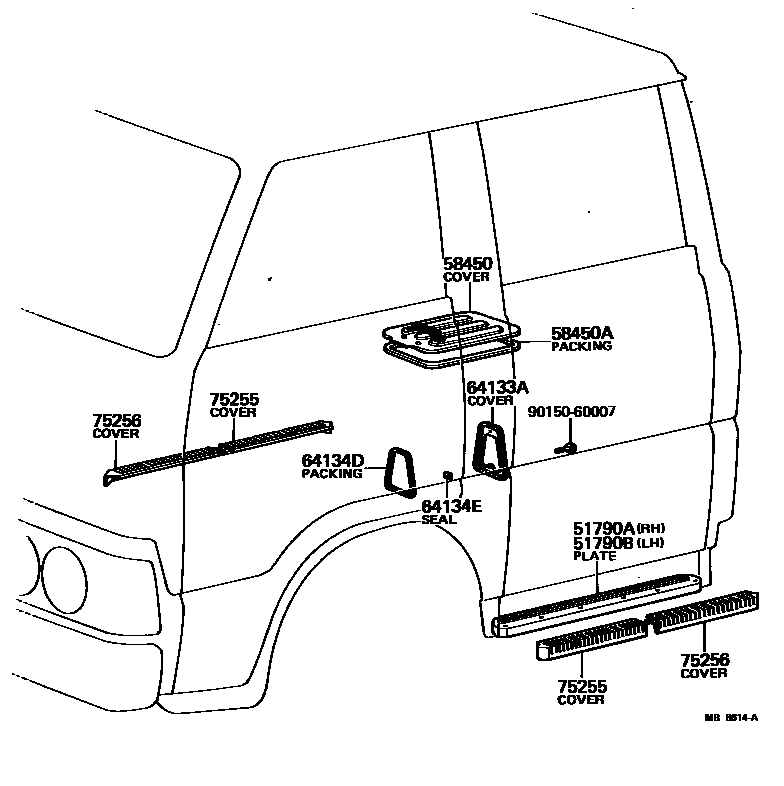

REAR FLOOR PANEL & REAR FLOOR MEMBER

51790APLATE SUB-ASSY, REAR STEP, RH

main58303-95400iLY3#,RY30..125197903-198507

51790BPLATE SUB-ASSY, REAR STEP, LH

main58303-95400iLY3#,RY30..125197903-198507

58450COVER ASSY, BATTERY SERVICE HOLE

main65305-95401iLY3#,RY30..125197903-198507

58450APACKING, BATTERY SERVICE HOLE COVER

main65352-95401iLY3#,RY30..125197903-198507

64133ACOVER, HEADER PANEL

main64133-95400×2iLY3#,RY30..125197903-198507

64134DPACKING, HEADER PANEL COVER

main64134-95400×2iLY3#,RY30..125197903-198507

64134ESEAL, HEADER PANEL COVER

main64138-95400×2iLY3#,RY30..125197903-198507

75255COVER, STEP PLATE REAR, NO.1

main75253-95401×2iLY3#,RY30..125197903-198507

75256COVER, STEP PLATE REAR, NO.2

main75254-95400×2iLY3#,RY30..125197903-198507

9015060007

main90150-60007

10 parts on this diagram · 1 diagram in section
