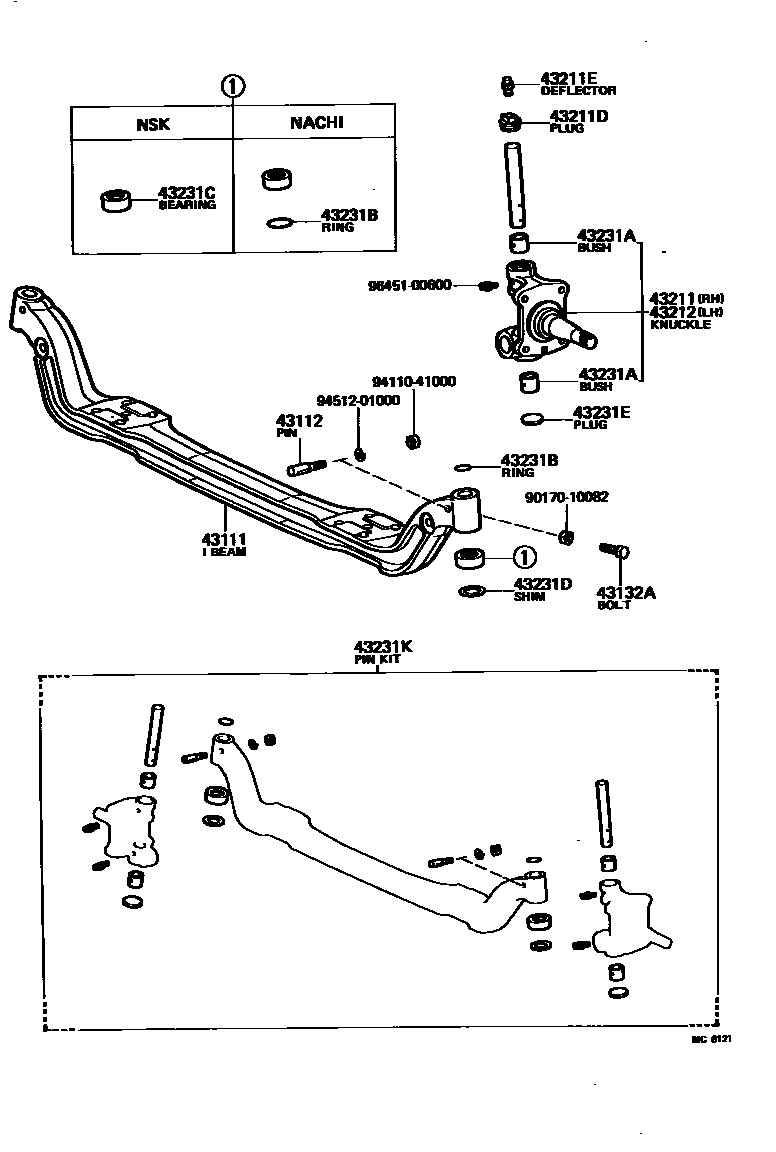

FRONT AXLE ARM & STEERING KNUCKLE

0001 1 0002 1

43111I BEAM, FRONT AXLE

main43111-25020iLY20,3#,RY20,3#..125,15T197903-198507

sub43111-25040

main43111-25030iRY31198408-198507

main43111-36030iJY30,RY31..20T197903-198408

sub43111-25030

sub90106-12001

sub94125-41200

43112PIN, KING PIN LOCK

main43112-25010iLY20,3#,RY20,3#..125,15T197903-198507

main43112-36020iJY30,RY31..20T197903-198507

43132ABOLT, ROUND HEXAGON (FOR STEERING KNUCKLE STOPPER BOLT)

main90106-10005iLY31,RY20,30198308-198507

main90106-10006iRY31197903-198408

main90106-12001iRY31198408-198507

43211KNUCKLE, STEERING, RH

main43201-25020iLY20,30,RY20,3#..125,15T197903-198004

sub43201-25050

sub43514-25010

sub43525-25010

sub90170-22003

main43201-25030iLY20,30,RY20,3#..125,15T198004-198201

sub43201-25040

sub43514-25010

sub43525-25010

sub90170-22003

main43201-25040iLY3#,RY20,3#..15T198201-198507

sub43201-25060

main43201-36040iJY30,RY31..20T197903-198004

sub43201-36H00

main43201-36060iJY30,RY31..20T198004-198009

sub43201-36080

sub43525-36010

sub90170-26001

main43201-36080iJY30,RY31..20T198009-198507

sub43201-36090

43211DPLUG (FOR STEERING KNUCKLE)

main90345-32001iLY20,3#,RY20,3#..125,15T197903-198507

UPR

main90345-33001iJY30,RY31..20T198004-198507

UPR

sub90345-33004

main90345-33002iJY30,RY31..20T198004-198507

LWR

sub90345-33003

main90345-58001iJY30,RY31..20T197903-198004

UPR

main90345-58002iJY30,RY31..20T197903-198004

LWR

43211EDEFLECTOR, DUST (FOR STEERING KNUCKLE)

main90930-03031iJY30,LY20,3#,RY20,3#197908-198507

main90930-03048iJY30,LY20,30,RY20,3#197903-198004

43212KNUCKLE, STEERING, LH

main43202-25010iLY20,30,RY20,3#..125,15T197903-198004

sub43202-25040

sub43514-25010

sub43525-25010

sub90170-22003

main43202-25020iLY20,30,RY20,3#..125,15T198004-198201

sub43202-25030

sub43514-25010

sub43525-25010

sub90170-22003

main43202-25030iLY3#,RY20,3#..15T198201-198507

sub43202-25050

main43202-36030iJY30,RY31..20T197903-198004

sub43202-36H00

main43202-36050iJY30,RY31..20T198004-198009

sub43202-36070

sub43525-36010

sub90170-26001

main43202-36070iJY30,RY31..20T198009-198507

sub43202-36080

43231ABUSH, BIMETAL FORMED (FOR STEERING KNUCKLE KING PIN BUSH)

main90999-73082iJY30,RY31..20T197903-198004

main90999-73084iLY20,3#,RY20,3#..125,15T197903-198507

LWR

sub90999-73160

main90999-73085iLY20,3#,RY20,3#..125,15T197903-198507

UPR

sub90999-73159

main90999-73086iJY30,RY31..20T198004-198507

43231BSEAL, DUST OR RING, O (FOR STEERING KNUCKLE KING PIN)

main96710-01025iLY20,30,RY20,3#..125,15T197903-198110

OD=28,ID=24.7

sub96711-19025

main96710-01028iJY30,RY31..20T197903-198110

UPR

sub96711-19028

main96710-02037iLY20,30,RY20,3#..125,15T197903-198006

OD=41.5,ID=37.2,NACHI

sub96711-24037

main96710-02042iJY30,RY31..20T197903-198110

LWR

sub96711-24042

main96711-19025iLY20,3#,RY20,3#..125,15T198110-198507

main96711-19028iJY30,RY31..20T198110-198507

UPR

main96711-24042iJY30,RY31..20T198110-198408

LWR

43231CBEARING (FOR STEERING KNUCKLE KING PIN)

main90367-25002iLY20,3#,RY20,3#..125,15T197903-198507

main90367-28001iRY31198408-198507

main90367-28011iJY30,RY31..20T197903-198408

43231DSHIM (FOR KING PIN)

main90564-25125iLY20,3#,RY20,3#..125,15T197903-198507

T=0.10,T=0.10

main90564-25126iLY20,3#,RY20,3#..125,15T197903-198507

T=0.05,T=0.05

main90564-25127iLY20,3#,RY20,3#..125,15T197903-198507

T=0.25,T=0.25

main90564-28128iJY30,RY31..20T197903-198507

T=0.20,T=0.20

main90564-28129iJY30,RY31..20T197903-198507

T=0.25,T=0.25

main90564-28130iJY30,RY31..20T197903-198507

T=0.30,T=0.30

main90564-28131iJY30,RY31..20T197903-198507

T=0.35,T=0.35

main90564-28144iJY30,RY31..20T197903-198507

T=0.40,T=0.40

main90564-28145iJY30,RY31..20T197903-198507

T=0.45,T=0.45

43231EPLUG (FOR STEERING KNUCKLE)

main96412-03500iLY20,3#,RY20,3#..125,15T197903-198507

43231KPIN KIT, STEERING KNUCKLE KING

main04431-25010iLY20,3#,RY20,3#..125,15T197903-198507

main04431-25020iRY31198408-198507

main04431-36030iJY30,RY31..20T197903-198004

main04431-36040iJY30,RY31..20T198004-198408

sub04431-36041

9017010082

main90170-10082

9411041000

main94110-41000

9451201000

main94512-01000

9645100600

main96451-00600

17 parts on this diagram · 2 diagrams in section
