TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

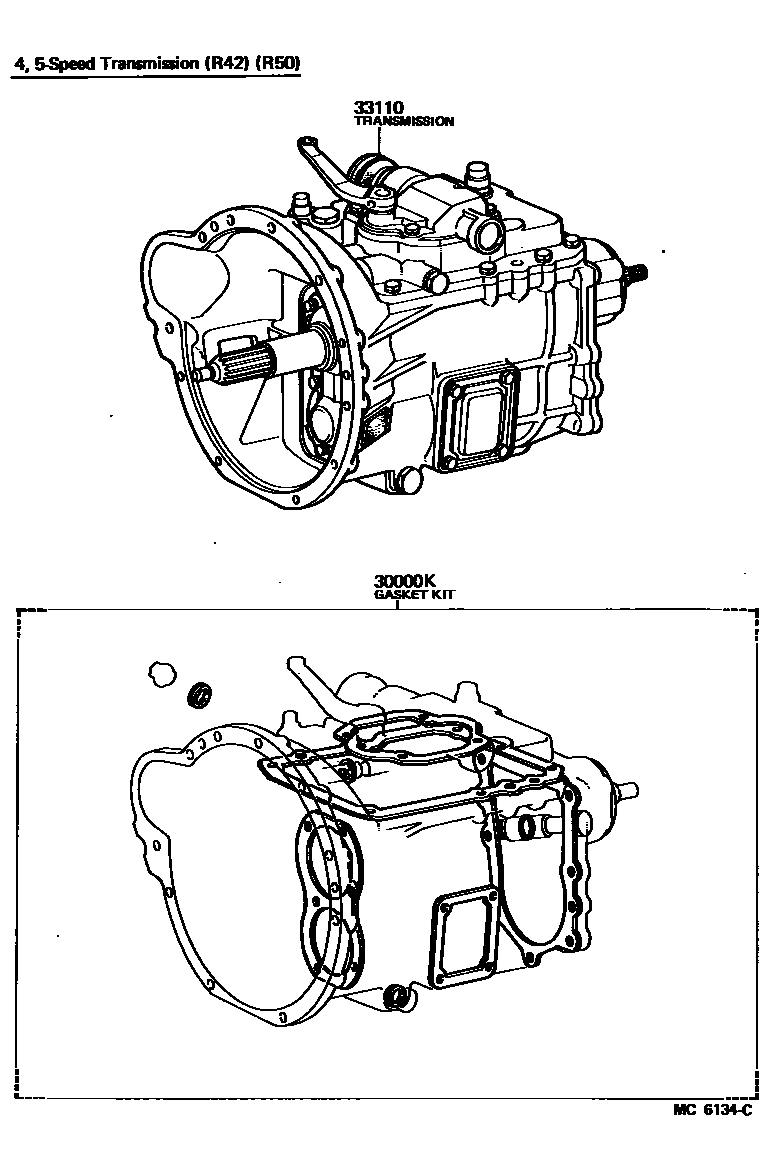

Parts diagram

30000KGASKET KIT, MANUAL TRANSMISSION OVERHAUL

main04331-25010i197903-198507

main04331-36041i197903-198308

33110TRANSMISSION ASSY, MANUAL

main33030-25040i197903-198004

SMG=5

main33030-25060i197903-198004

SMG=5

main33110-25460i197903-198201

SMG R=17:4,HONG KONG SPEC

main33110-25480i197903-198201

SMG R=17:4

main33110-25510i197903-198201

SMG R=16:4

main33110-25520i197903-198201

SMG R=22:6

main33110-25530i197903-198201

SMG R=17:4

main33110-25540i197903-198201

SMG R=16:4

main33110-25550i197903-198201

SMG R=22:6

main33110-25560i197903-198201

SMG R=22:6

main33110-25580i197903-198201

SMG R=18:4,CHINA SPEC

main33110-25590i198004-198006

SMG R=19:5

main33110-25591i198006-198201

SMG R=19:5

main33110-25610i198004-198006

SMG R=19:5

main33110-25611i198006-198201

SMG R=19:5

main33110-25640i198201-198202

SMG R=17:4,HONG KONG SPEC

main33110-25660i198201-198308

SMG R=17:4

main33110-25661i198308-198507

main33110-25690i198201-198308

SMG R=16:4

main33110-25691i198308-198507

main33110-25700i198201-198308

SMG R=17:4

main33110-25701i198308-198507

main33110-25710i198201-198308

SMG R=22:6

main33110-25720i198201-198308

SMG R=16:4

main33110-25730i198201-198308

SMG R=18:4,CHINA SPEC

main33110-25740i198201-198308

SMG R=22:6

main33110-25742i198308-198507

main33110-25760i198201-198308

SMG R=18:5

main33110-25790i198201-198308

SMG R=18:5

2 parts on this diagram · 2 diagrams in section
