FUEL PUMP & PIPE

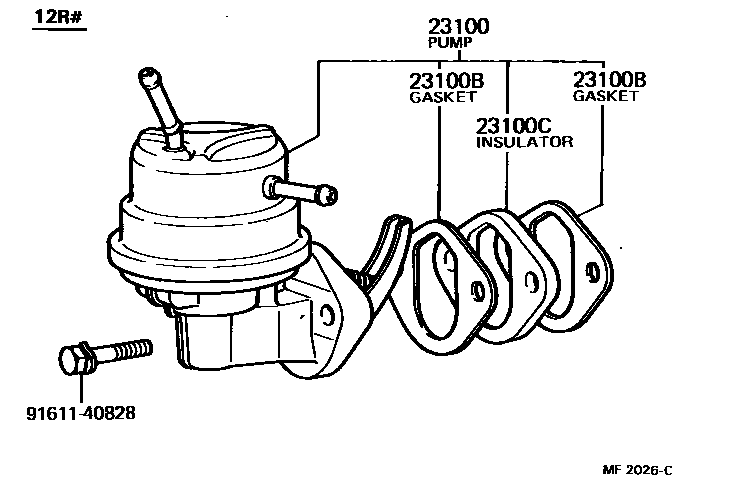

Parts diagram

23100PUMP ASSY, FUEL

main23100-39255i197903-198104

main23100-39256i198104-198507

main23100-49205i197903-198201

main23100-49206i198201-198507

23100BGASKET, FUEL PUMP

main90923-05005×2i197903-198507

23100CINSULATOR, FUEL PUMP

main90923-06001i197903-198507

9161140828

main91611-40828

4 parts on this diagram · 2 diagrams in section
