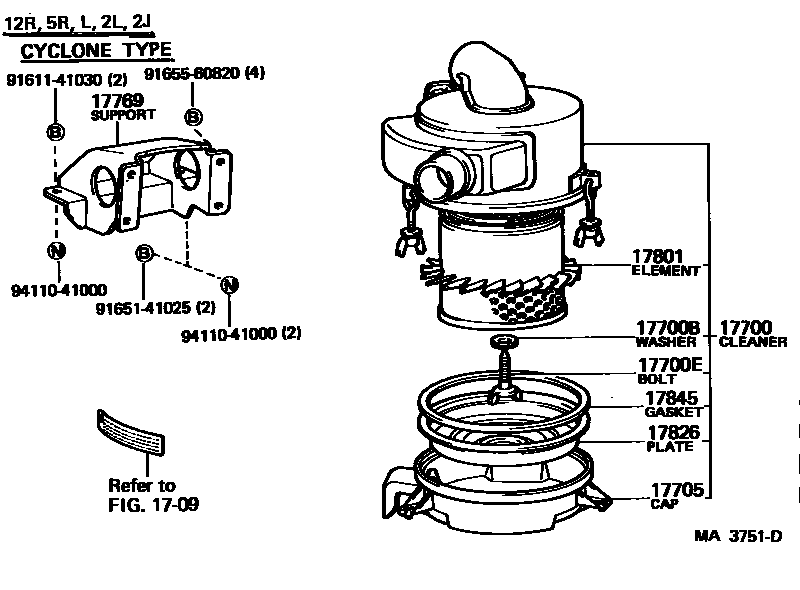

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0008 1 0009 1

1709CAUTION PLATE & NAME PLATE (ENGINE)

→ Go to FIG 17-09

17700CLEANER ASSY, AIR

main17700-44390i5R..RY31..LHD..20T197903-198308

OIL BATH TYPE,CHINA SPEC

main17700-44420i12R,5R..RY20,3#197903-198507

CYCLONE TYPE

main17700-48110i2J..JY30197903-198308

CYCLONE TYPE

main17700-48120i2J..JY30197903-198308

OIL BATH TYPE

main17700-54020iL,2L..LY20,3#197903-198507

CYCLONE TYPE

main17700-54030iL..LY20,30197903-198201

OIL BATH TYPE

main17710-44230i12R,5R..RY20,3#197903-197909

PAPER ELEMENT TYPE

main17710-44231i12R,5R..RY20,3#..GEN197909-198010

PAPER ELEMENT TYPE

main17710-44232i12R,5R..RY20,3#..GEN198010-198201

PAPER ELEMENT TYPE

main17710-44233i12R,5R..RY20,3#198201-198307

PAPER ELEMENT TYPE

main17710-44234i12R,5R..RY20,3#198307-198507

PAPER ELEMENT TYPE

17700BWASHER, SEAL(FOR AIR CLEANER)

main90210-09006i12R,5R..RY20,3#; 2J..JY30; L,2L..LY20,3#197903-198507

CYCLONE TYPE

17700EBOLT, WING(FOR AIR CLEANER)

main90122-10002i12R,5R..RY20,3#; 2J..JY30; L,2L..LY20,3#197903-198507

CYCLONE TYPE

17705CAP SUB-ASSY, AIR CLEANER

main17703-48010i2J..JY30197903-198308

CYCLONE TYPE

main17703-54010i12R,5R..RY20,3#; L,2L..LY20,3#197903-198507

CYCLONE TYPE

main17705-44160i12R,5R..RY20,3#197903-197909

PAPER ELEMENT TYPE

main17705-44161i12R,5R..RY20,3#..GEN197909-198010

PAPER ELEMENT TYPE

main17705-44162i12R,5R..RY20,3#..GEN198010-198201

PAPER ELEMENT TYPE

main17705-44163i12R,5R..RY20,3#198201-198307

PAPER ELEMENT TYPE

main17705-44164i12R,5R..RY20,3#198307-198507

PAPER ELEMENT TYPE

17769SUPPORT, AIR CLEANER

main17769-31010i12R,5R..RY20,3#..125,15T; L,2L..LY20,3#197903-198507

main17769-44010i5R..RY31..20T197903-198004

main17769-44011i5R..RY31..20T198004-198507

main17769-54010i2J..JY30197903-198004

main17769-54011i2J..JY30198004-198308

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-23020i12R,5R..RY20,3#..GEN197903-198507

PEPER ELEMENT TYPE

main17801-48030i2J..JY30; L..LY20,30197903-198201

OIL BATH TYPE

main17801-54020i12R,5R..RY20,3#; 2J..JY30; L,2L..LY20,3#197903-198507

CYCLONE TYPE

17826PLATE, FILTER ELEMENT BAFFLE

main17826-54010i12R,5R..RY20,3#; 2J..JY30; L,2L..LY20,3#197903-198507

CYCLONE TYPE

17845GASKET, AIR CLEANER CAP

main17845-44010i12R,5R..RY20,3#..GEN197903-198308

PAPER ELEMENT TYPE

main17846-87301i12R,5R..RY20,3#; 2J..JY30; L,2L..LY20,3#197903-198507

CYCLONE TYPE

9161141030

main91611-41030

9165141025

main91651-41025

9165560820

main91655-60820

9411041000

main94110-41000

13 parts on this diagram · 6 diagrams in section
