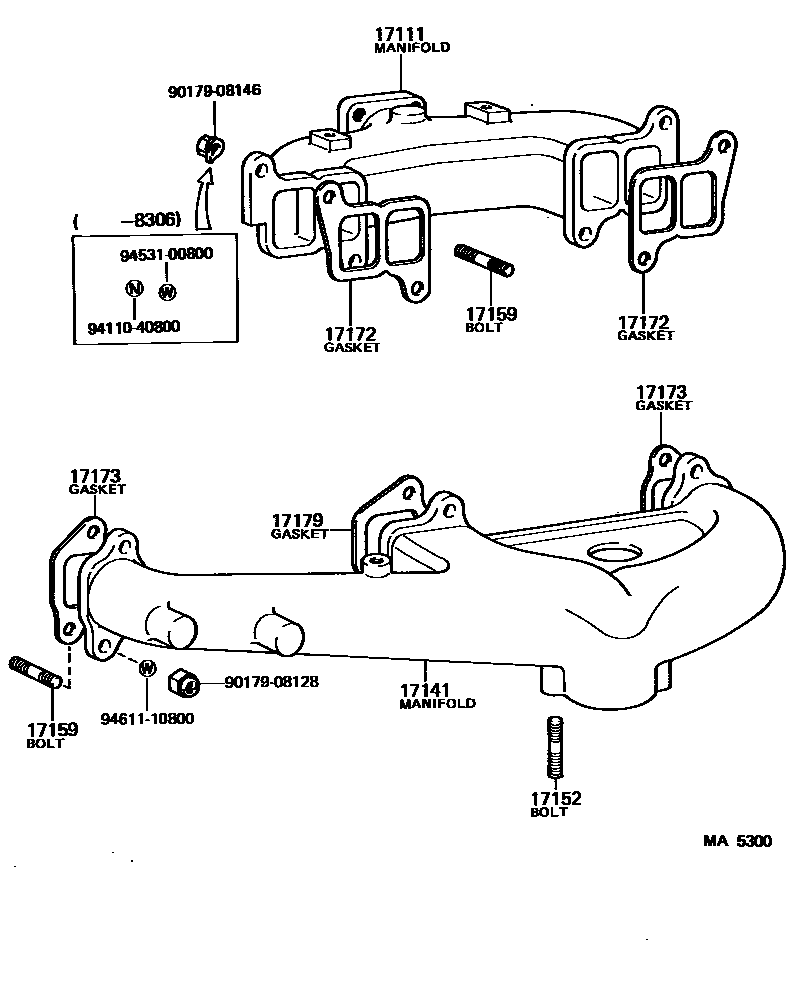

MANIFOLD

0001 1 0002 1 0003 1 0004 1

17111MANIFOLD, INTAKE

main17101-54011iL..LY20,30197903-198201

main17101-54040iL,2L..LY3#198201-198507

main17111-48020i2J..JY30197903-198308

17141MANIFOLD, EXHAUST

main17141-48010i2J..JY30197903-198308

main17141-54011iL..LY20,30197903-198204

main17141-54012iL..LY30198204-198308

main17141-54040i2L..LY31198308-198507

17152BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)

main90116-10027i5R..RY31197907-198507

L=45.4,S=14&20

main90116-10029i2J..JY30197903-197907

L=42,S=16&23

main90116-10042i12R..RY20,30197907-198507

L=37,S=13&20

main90116-10042i12R,5R..RY20,3#197903-197907

L=37,S=13&24

main90116-10071iL..LY30198207-198302

L=47.4,S=14&22

main90116-10088iL,2L..LY3#198302-198507

L=47.4,S=14&22

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90116-08013i2J..JY30197903-198308

INTAKE MANIFOLD,L=34.5,S=9&16

main90116-08017i2J..JY30197903-198005

L=41,S=10&20

main90116-08053iL..LY20,30197903-198204

main90116-08053iL,2L..LY3#198204-198504

INTAKE MANIFOLD SIDE

main90116-08125i2J..JY30198005-198308

EXHAUST MANIFOLD,L=42,S=10&21

main90116-08220i2L..LY31198504-198507

INTAKE MANIFOLD SIDE

main90116-10027iL..LY30198204-198207

EXHAUST MANIFOLD SIDE

main90116-10071iL..LY30198207-198302

EXHAUST MANIFOLD SIDE

main90116-10088iL..LY30198302-198308

EXHAUST MANIFOLD SIDE

main90116-10091i2L..LY31198308-198507

EXHAUST MANIFOLD SIDE

17172GASKET, MANIFOLD TO CYLINDER HEAD

main17172-31021i12R..RY20,30197903-198507

main17172-44011i5R..RY31197903-198507

main17172-46011i2J..JY30197903-198308

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-48010i2J..JY30197903-198308

main17173-54010iL..LY20,30197903-198204

main17173-54011iL,2L..LY3#198204-198507

17179GASKET, EXHAUST MANIFOLD, NO.2

main17179-48010i2J..JY30197903-198308

9017908128

main90179-08128

9017908146

main90179-08146

9411040800

main94110-40800

9453100800

main94531-00800

9461110800

main94611-10800

12 parts on this diagram · 4 diagrams in section
