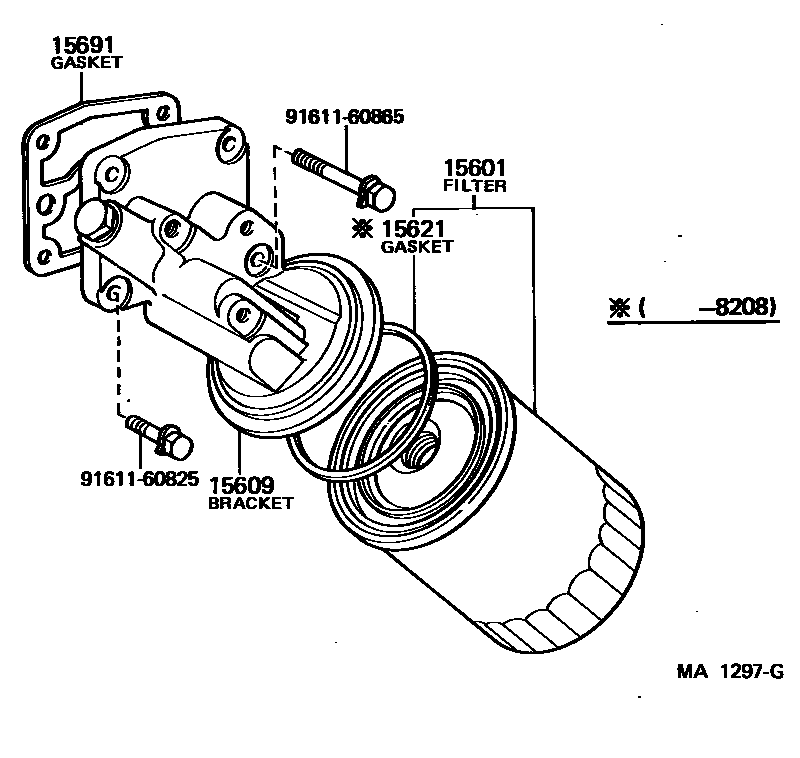

OIL FILTER

0001 1 0002 1 0003 1 0004 1 0005 1

15601FILTER SUB-ASSY, OIL

main04152-40020i5R..RY31..LHD..20T197903-198308

CHINA SPEC

main15600-25010i5R..RY31197903-198507

CARTRIDGE TYPE

sub90915-20003

main15600-41010i2J..JY30197903-198507

sub90915-40002

main15601-33020i12R..RY20,30197903-198306

main15601-33021i12R..RY20,30198306-198507

15609BRACKET SUB-ASSY, OIL FILTER

main15609-31030i12R..RY20,30197903-198507

main15609-44020i5R..RY31197903-198507

CARTRIDGE TYPE

main15609-48023i2J..JY30197903-198308

main15609-54010iL..LY20,30197903-198205

sub32924-26011

sub91611-60835

main15609-54011iL,2L..LY3#198205-198406

sub32924-26012

sub91611-60835

main15609-54012i2L..LY31198406-198507

15621GASKET, OIL FILTER BODY

main15621-22010i12R..RY20,30197903-198208

main15621-40020i5R..RY31..LHD..20T197903-198208

CHINA SPEC

main15621-41010i2J..JY30197903-198208

CARTRIDGE TYPE

15691GASKET, OIL FILTER

main15691-31010i12R..RY20,30197903-198507

sub15691-31011

main15691-40011i5R..RY31197903-198507

sub15691-40012

main15691-48021i2J..JY30197903-198308

sub15691-48022

main15691-54010iL..LY20,30197903-198108

main15691-54011iL..LY20,30198108-198203

main15691-54012iL,2L..LY3#198203-198507

sub15692-54020

9161160825

main91611-60825

9161160865

main91611-60865

6 parts on this diagram · 5 diagrams in section
