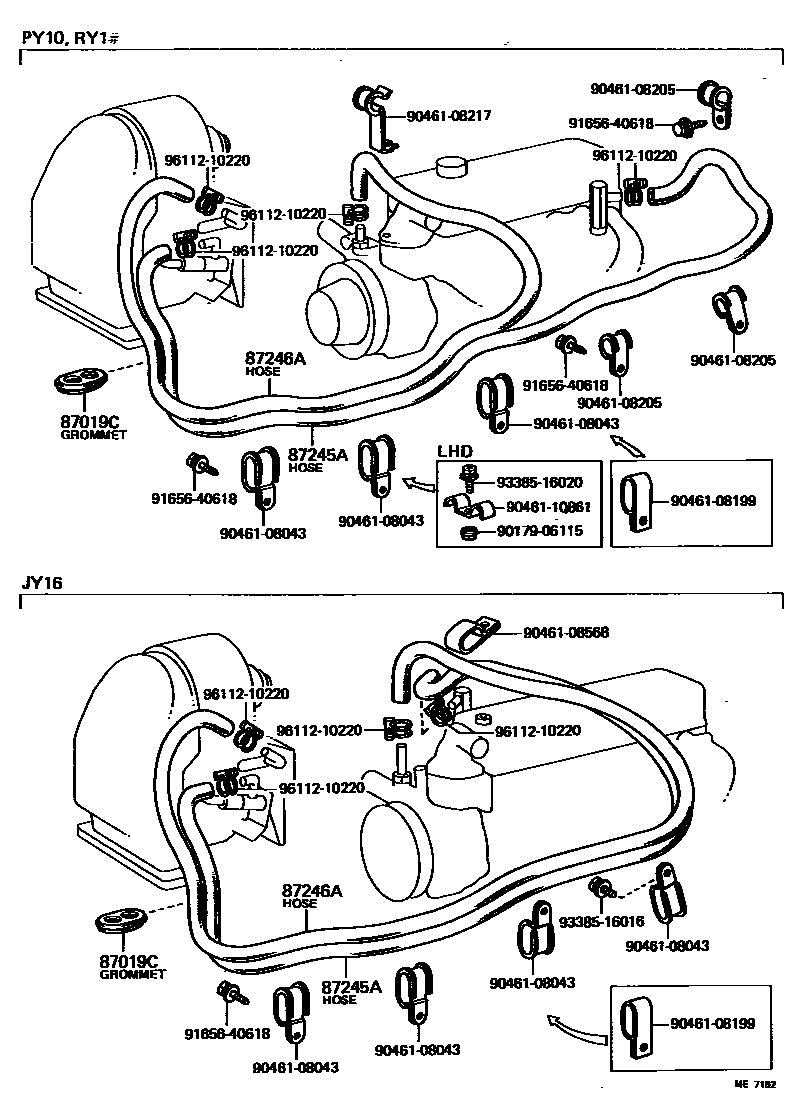

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87019CGROMMET, HEATER HOSE

main90480-01243iJY16,RY1#197109-197611

87245AHOSE, HEATER WATER, INLET A

main99551-22000iJY16..LHD197207-197303

L=2000

main99551-22050iRY16..LHD197207-197303

L=2050

main99551-22100iJY16..RHD197207-197303

L=2100

main99551-22150iRY10,12..RHD197109-197303

L=2150

main99551-22200iRY10..LHD..T1197109-197303

L=2200

main99552-21750iRY16..LHD197611-197902

L=1750

main99552-21850iJY16..RHD197611-197902

L=1850

main99552-21950iRY10,12..RHD197611-197902

L=1950

main99552-22000iJY16..LHD197303-197902

L=2000

main99552-22050iRY16..RHD197611-197902

L=2050

main99552-22100iJY16..RHD197303-197611

L=2100

main99552-22150iRY10,12..RHD197303-197511

L=2150

main99552-22200iRY16..RHD..T1197511-197611

L=2200

87246AHOSE, HEATER WATER, OUTLET A

main99551-21700iRY16..LHD197207-197303

L=1700

main99551-21750iRY16..RHD197207-197303

L=1750

main99551-22100iRY10,12..LHD197109-197303

L=2100

main99551-22150iRY10,12..RHD197109-197303

L=2150

main99551-22250iJY16..RHD197207-197303

L=2250

main99551-22350iJY16..LHD197207-197303

L=2350

main99552-21400iRY16197611-197902

L=1400

main99552-21700iRY16..LHD197303-197511

L=1700

main99552-21750iRY16..RHD197303-197511

L=1750

main99552-22000iRY10,12..LHD197309-197511

L=2000

main99552-22050iJY16..RHD; RY10,12..LHD197611-197902

L=2050

main99552-22100iRY10,12..LHD197303-197309

L=2100

main99552-22150iRY10,12..RHD197303-197309

L=2150

main99552-22250iJY16..RHD197303-197611

L=2250

main99552-22350iJY16..LHD197303-197902

L=2350

9017906115

main90179-06115

9046108043

main90461-08043

9046108199

main90461-08199

9046108205

main90461-08205

9046108217

main90461-08217

9046108568

main90461-08568

9046110861

main90461-10861

9165640618

main91656-40618

9338516016

main93385-16016

9338516020

main93385-16020

9611210220

main96112-10220

14 parts on this diagram · 2 diagrams in section
