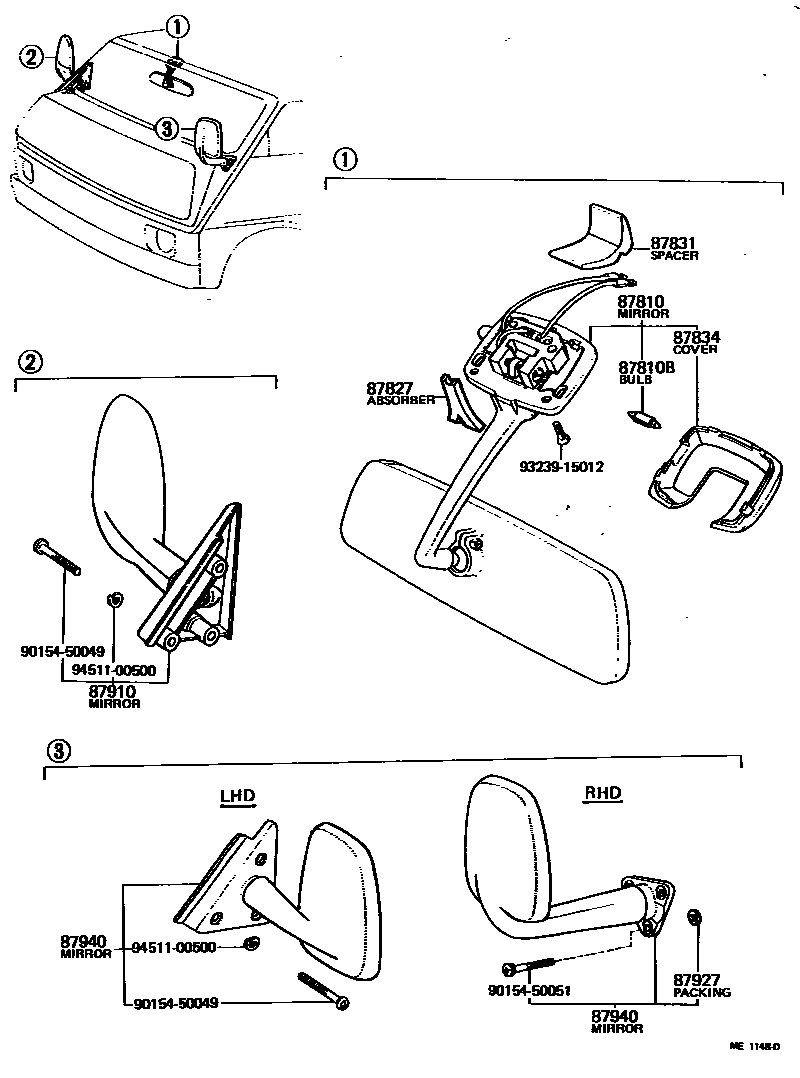

MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95700iJY16,RY1#197109-197902

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050iJY16,RY1#197109-197902

12V 5W,12V 5W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-95010iJY16197207-197902

87831SPACER (FOR INSIDE MIRROR)

main87831-95010iJY16,RY1#197109-197902

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87814-12011iJY16,RY1#197109-197902

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95090iJY16,RY1#197109-197902

main87910-95091iRY16..RHD197305-197902

AUSTRALIA SPEC.

87927PACKING, REAR VIEW OUTSIDE MIRROR STAY

main87926-95700iRY16..RHD197305-197902

AUSTRALIA SPEC.

main87933-95010×3iRY1#..RHD197109-197112

main90430-04211×3iJY16,RY1#..RHD197112-197902

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87920-95090iJY16,RY1#..RHD197109-197902

main87920-95091iJY16,RY1#..LHD197109-197902

main87920-95092iRY16..RHD197305-197902

AUSTRALIA SPEC.

9015450049

main90154-50049

9015450051

main90154-50051

9323915012

main93239-15012

9451100500

main94511-00500

12 parts on this diagram · 1 diagram in section
