HORN

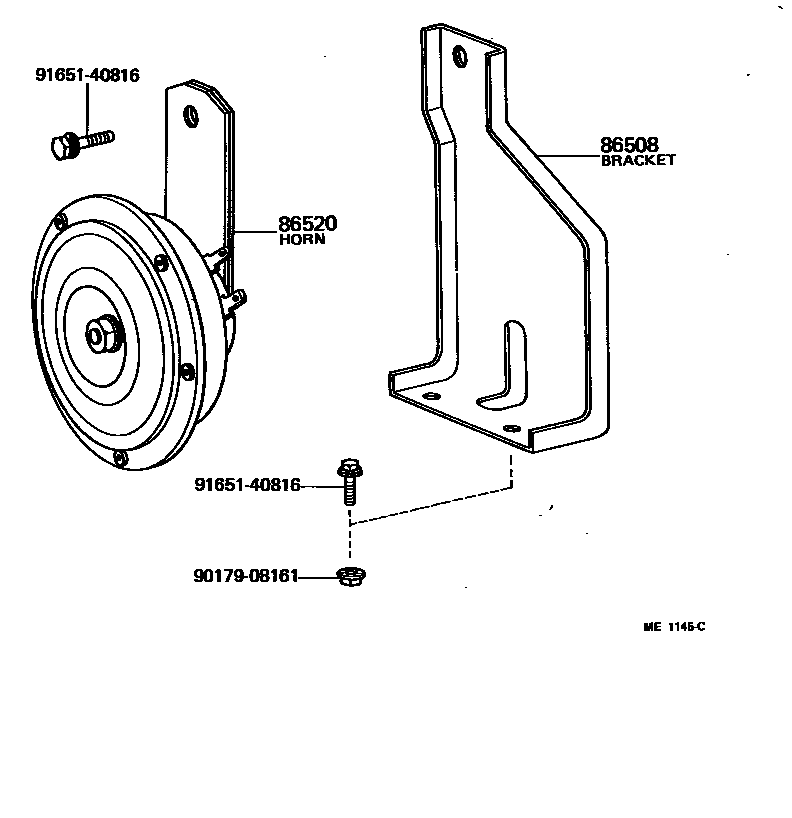

Parts diagram

86508BRACKET SUB-ASSY, HORN

main86591-25010i197309-197902

86520HORN ASSY, LOW PITCHED

main86520-14010i197309-197402

main86520-25050i197109-197309

main86520-25080i197402-197902

main86520-25090i197504-197902

CHINA SPEC.

9017908161

main90179-08161

9165140816

main91651-40816

4 parts on this diagram · 1 diagram in section
