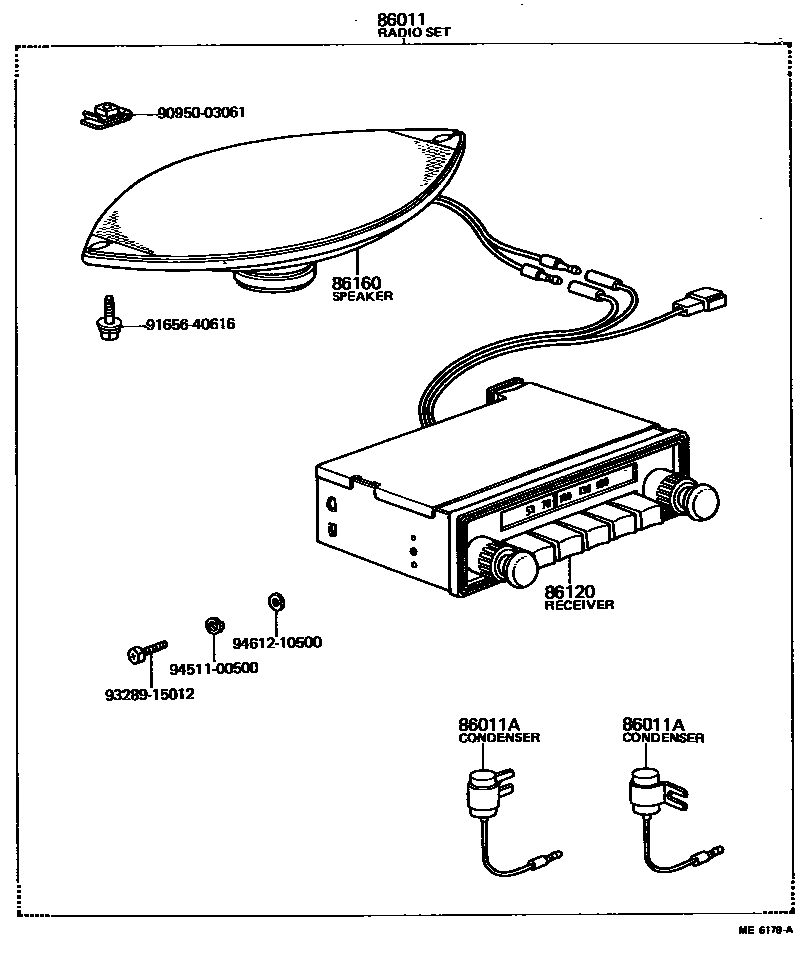

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86011RADIO & SETTING PARTS SET

main86011-25020iJY16,RY1#197109-197503

main86011-25021iJY16,RY1#197503-197902

86011ACONDENSER, RADIO SETTING

main90980-04011×2iJY16,RY1#197109-197902

CONNECTOR : PLUG

86120RECEIVER ASSY, RADIO

main86120-35024iJY16,RY1#197109-197503

main86120-35025iJY16,RY1#197503-197902

86160SPEAKER ASSY, FRONT NO.1

main86160-25010iJY16,RY1#197109-197503

main86160-25011iJY16,RY1#197503-197902

9095003061

main90950-03061

9165640616

main91656-40616

9328915012

main93289-15012

9451100500

main94511-00500

9461210500

main94612-10500

9 parts on this diagram · 2 diagrams in section
