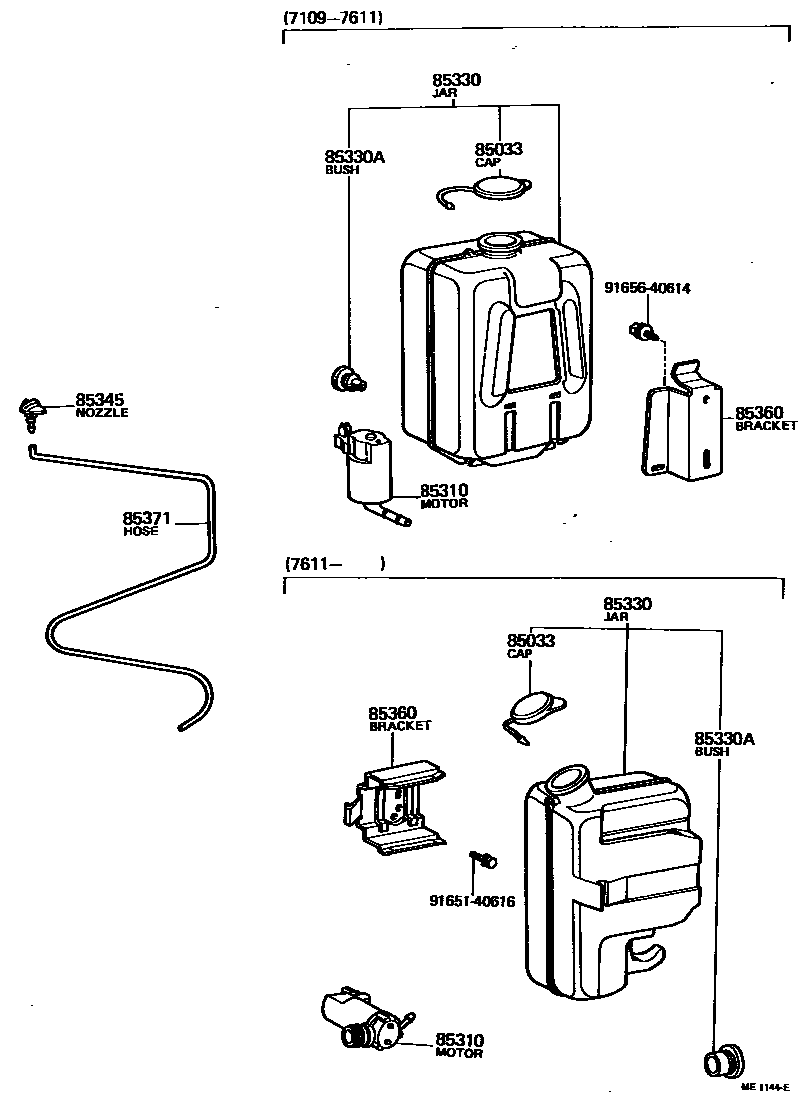

WINDSHIELD WASHER

85033CAP ASSY, WINDSHIELD WASHER

main85033-20070iJY16,RY1#197109-197611

main85033-36120iJY16,RY1#197611-197902

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-12020iJY16,RY1#197109-197611

main85310-20100iJY16,RY1#197611-197902

85330JAR ASSY, WINDSHIELD WASHER

main85330-25040iJY16,RY1#197611-197902

main85330-36130iJY16,RY1#197109-197611

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32057iJY16,RY1#197109-197611

main90099-32089iJY16,RY1#197611-197902

85345NOZZLE, WINDSHIELD WASHER

main85035-36120iJY16,RY1#197109-197902

85360BRACKET ASSY, WINDSHIELD WASHER

main85361-22010iJY16,RY1#197109-197611

main85361-95A00iJY16,RY1#197611-197902

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90446-06253iJY16,RY1#197109-197902

L=2000(*H,L=1400)

9165140616

main91651-40616

9165640614

main91656-40614

9 parts on this diagram · 1 diagram in section
