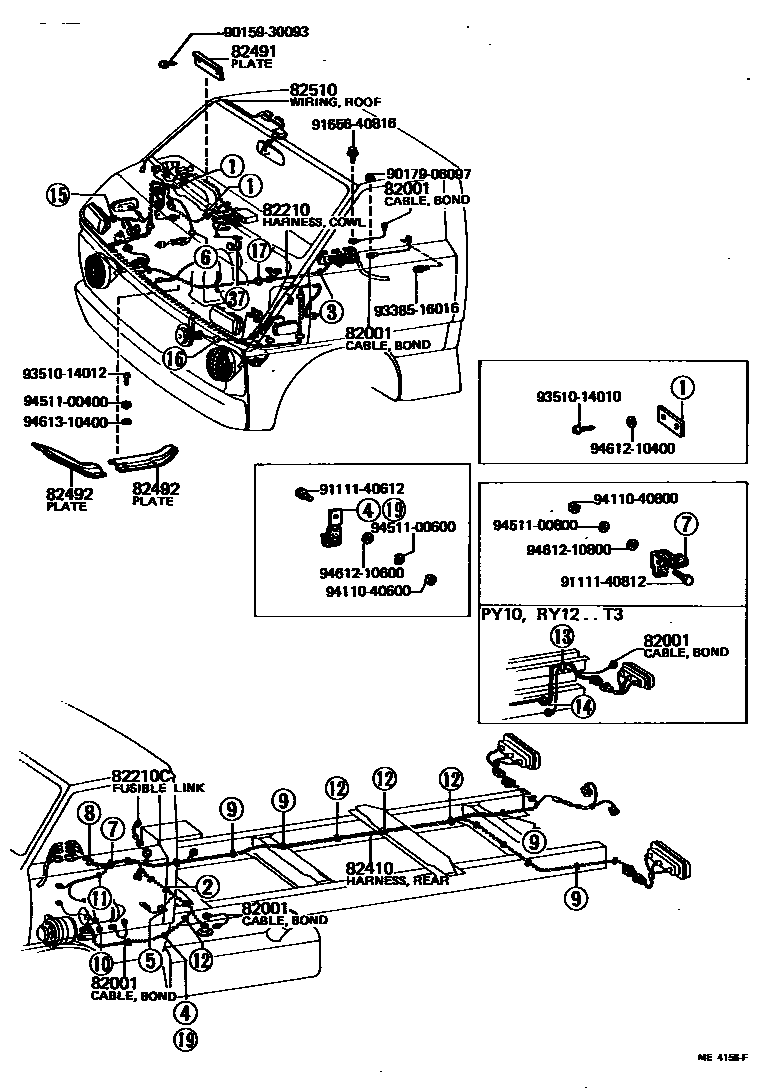

WIRING & CLAMP

0001 1 0002 1 0003 1

82001CABLE, BOND, NO.1

main82201-95010iRY10,12197109-197303

FOR FUEL GAGE

main82201-95011iJY16,RY16197207-197302

FOR FUEL GAGE

main82202-95011iJY16,RY1#..T3197109-197902

L=500

main90980-07001iRY16197207-197902

L=280

main90980-07002iJY16197207-197808

L=310

main90980-07011iRY1#197109-197601

L=300

main90980-07021×2iRY1#197109-197902

L=280

main90980-07051iRY1#197601-197902

L=300

main90980-07125iJY16197808-197902

L=400

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-95011iRY1#..RHD197109-197207

main82210-95013iRY1#..LHD197109-197309

main82210-95018iJY16..RHD197207-197309

main82210-95019iJY16..LHD197207-197309

main82210-95020iRY1#..RHD197207-197309

main82210-95026iRY16..RHD197305-197309

AUSTRALIA SPEC.

main82210-95027iRY1#..RHD197309-197402

main82210-95029iJY16..RHD197309-197402

main82210-95031iRY1#..LHD197309-197402

main82210-95032iJY16..LHD197309-197402

main82210-95033iRY16..RHD197309-197402

AUSTRALIA SPEC.

main82210-95034iRY1#..RHD197402-197511

main82210-95036iJY16..RHD197402-197511

main82210-95038iRY1#..LHD197402-197511

main82210-95039iJY16..LHD197402-197511

main82210-95040iRY16..RHD197402-197511

AUSTRALIA SPEC.

main82210-95043iRY1#..RHD197511-197611

main82210-95046iJY16..RHD197511-197611

main82210-95047iRY1#..LHD197511-197611

main82210-95048iJY16..LHD197511-197611

main82210-95049iRY16..RHD197511-197611

AUSTRALIA SPEC.

main82210-95053iRY1#..RHD197611-197902

main82210-95056iJY16..RHD197611-197704

main82210-95057iRY1#..LHD197611-197902

main82210-95058iJY16..LHD197611-197704

main82210-95059iRY16..RHD197611-197902

AUSTRALIA SPEC.

main82210-95063iJY16..LHD197704-197708

main82210-95064iJY16..RHD197704-197708

main82210-95067iJY16..LHD197708-197902

main82210-95068iJY16..RHD197708-197902

82210CFUSIBLE LINK

main90982-08009iJY16,RY1#197109-197902

82410HARNESS ASSY, WIRING TO REAR LAMP

main82410-95010iRY10197109-197309

main82410-95011iRY12197109-197309

main82410-95012iJY16197207-197511

main82410-95014iRY16197207-197309

main82410-95015iRY10197309-197511

main82410-95016iRY12197309-197511

main82410-95018iRY16197309-197511

main82410-95019iRY10197511-197902

main82410-95020iRY12197511-197902

main82410-95022iJY16197511-197708

main82410-95023iRY16197511-197902

main82410-95024iJY16197708-197804

main82410-95035iJY16197804-197902

82491PLATE, WIRING HARNESS PROTECTOR, NO.1

main55426-95010iJY16,RY1#197109-197902

82492PLATE, WIRING HARNESS PROTECTOR, NO.2

main58182-95014iJY16,RY16..RHD; RY10,12197207-197902

FRONT

main58183-95011iJY16,RY1#197109-197902

REAR

main58184-95010iRY1#..LHD197109-197207

FRONT

82510WIRING ASSY, ROOF

main82502-95010iJY16,RY1#197109-197309

main82502-95012iJY16,RY1#197309-197611

main82502-95014iJY16,RY1#197611-197902

9015930093

main90159-30093

9017906097

main90179-06097

9111140612

main91111-40612

9111140812

main91111-40812

9165640816

main91656-40816

9338516016

main93385-16016

9351014010

main93510-14010

9351014012

main93510-14012

9411040600

main94110-40600

9411040800

main94110-40800

9451100400

main94511-00400

9451100600

main94511-00600

9451100800

main94511-00800

9461210400

main94612-10400

9461210600

main94612-10600

9461210800

main94612-10800

9461310400

main94613-10400

24 parts on this diagram · 3 diagrams in section
