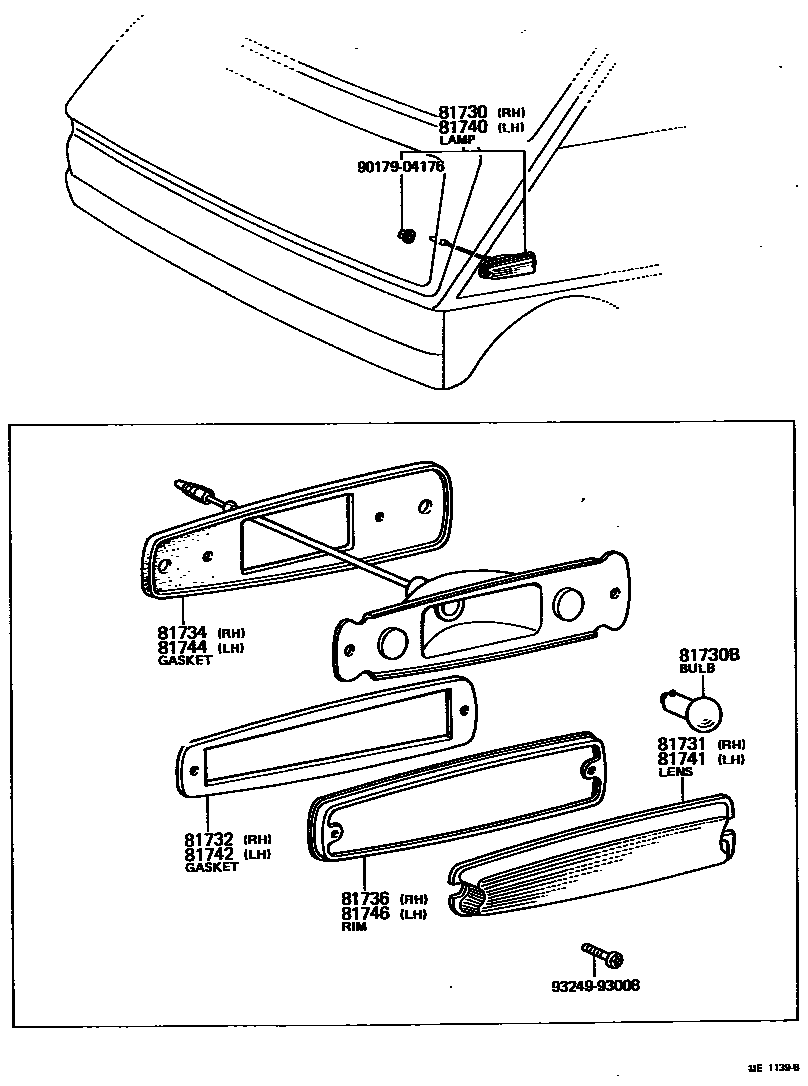

SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP

0001 1 0002 1

81730LAMP ASSY, SIDE TURN SIGNAL, RH

main81730-29105iJY16,RY1#197109-197503

main81730-29106iJY16,RY1#197503-197902

81730BBULB (FOR SIDE TURN SIGNAL LAMP)

main99132-13060×2iJY16,RY1#197109-197902

12V 6W,12V 6W

81731LENS, SIDE TURN SIGNAL LAMP, RH

main81731-20010iJY16,RY1#197109-197902

81732GASKET, SIDE TURN SIGNAL LAMP LENS, RH

main81732-20010iJY16,RY1#197109-197503

81734GASKET, SIDE TURN SIGNAL LAMP BODY, RH

main81732-25020iJY16,RY1#197503-197902

main81734-20010iJY16,RY1#197109-197503

81736RIM, SIDE TURN SIGNAL LAMP, RH

main81736-20010iJY16,RY1#197109-197503

81740LAMP ASSY, SIDE TURN SIGNAL, LH

main81740-29085iJY16,RY1#197109-197503

main81740-29086iJY16,RY1#197503-197902

81741LENS, SIDE TURN SIGNAL LAMP, LH

main81731-20010iJY16,RY1#197109-197902

81742GASKET, SIDE TURN SIGNAL LAMP LENS, LH

main81732-20010iJY16,RY1#197109-197503

81744GASKET, SIDE TURN SIGNAL LAMP BODY, LH

main81742-25010iJY16,RY1#197503-197902

main81744-20010iJY16,RY1#197109-197503

81746RIM, SIDE TURN SIGNAL LAMP, LH

main81736-20010iJY16,RY1#197109-197503

9017904176

main90179-04176

9324993008

main93249-93008

13 parts on this diagram · 2 diagrams in section
