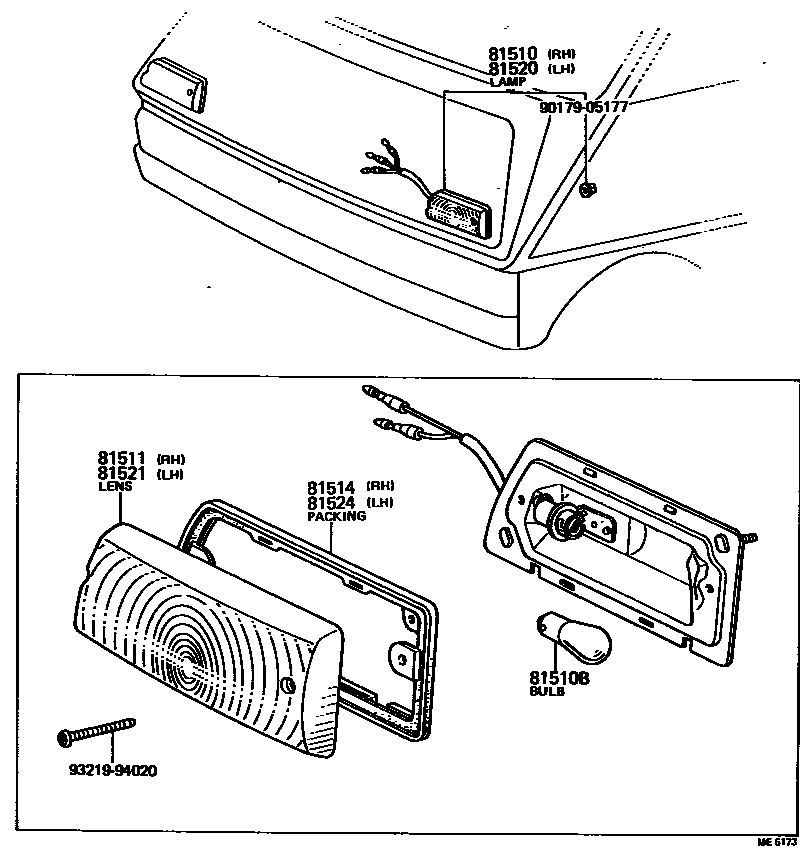

FRONT TURN SIGNAL LAMP

0001 1 0002 1

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-29205iJY16,RY1#197109-197309

AMBER

main81510-29206iJY16,RY1#197309-197902

AMBER

main81510-29215iJY16,RY1#197109-197309

CLEAR

main81510-29216iJY16,RY1#197309-197902

CLEAR

main81510-29365iRY16..RHD197404-197902

AMBER,AUSTRALIA SPEC.

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-12004×2iJY16,RY1#197309-197902

12V 8W

main99132-11230×2iJY16,RY1#197309-197902

12V 23W,12V 23W

main99132-21230×2iJY16,RY1#197109-197309

12V 23/8W,12V 23/8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-25050iJY16,RY1#197109-197309

AMBER

main81511-25051iJY16,RY1#197309-197902

AMBER

main81511-25070iJY16,RY1#197109-197309

CLEAR

main81511-25071iJY16,RY1#197309-197902

CLEAR

81514GASKET, FRONT TURN SIGNAL LAMP BODY, RH

main81512-25050iJY16,RY1#197109-197309

main81512-25051iJY16,RY1#197309-197902

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-29205iJY16,RY1#197109-197309

AMBER

main81520-29206iJY16,RY1#197309-197902

AMBER

main81520-29215iJY16,RY1#197109-197309

CLEAR

main81520-29216iJY16,RY1#197309-197902

CLEAR

main81520-29365iRY16..RHD197404-197902

AMBER,AUSTRALIA SPEC.

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-25020iJY16,RY1#197109-197309

AMBER

main81521-25021iJY16,RY1#197309-197902

AMBER

main81521-25040iJY16,RY1#197109-197309

CLEAR

main81521-25041iJY16,RY1#197309-197902

CLEAR

81524GASKET, FRONT TURN SIGNAL LAMP BODY, LH

main81522-25020iJY16,RY1#197109-197309

main81522-25021iJY16,RY1#197309-197902

9017905177

main90179-05177

9321994020

main93219-94020

9 parts on this diagram · 2 diagrams in section
