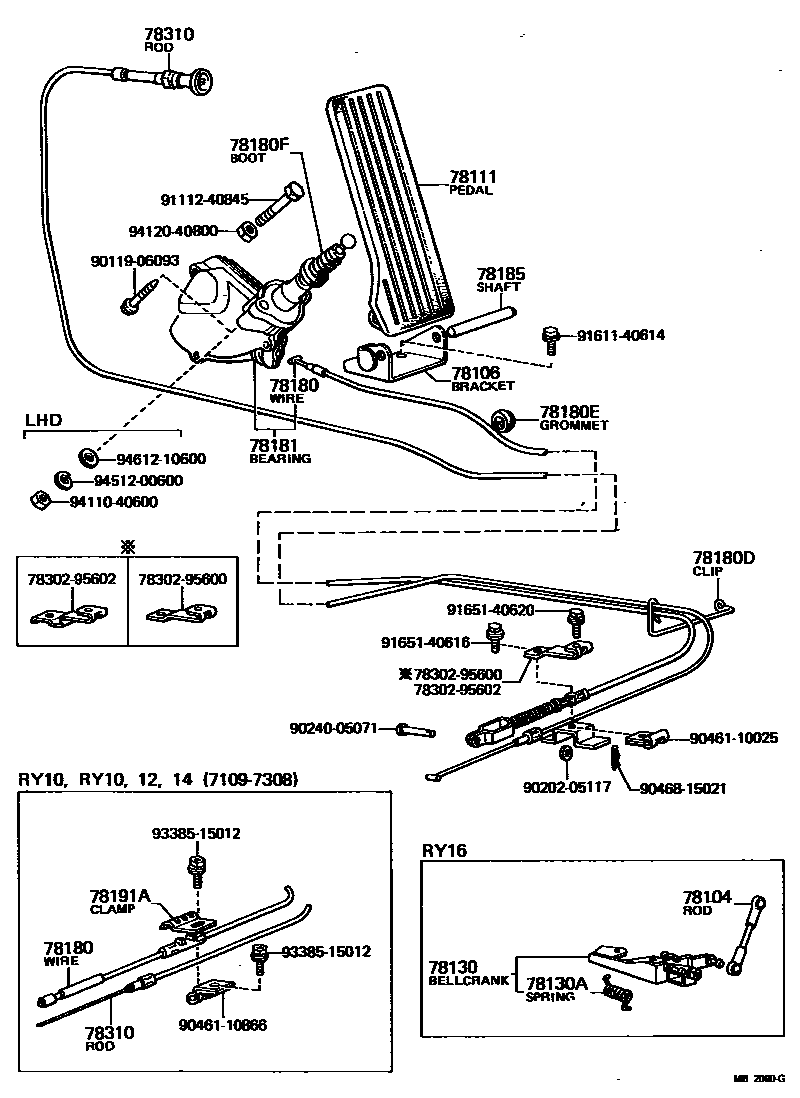

ACCELERATOR LINK

0001 1 0002 1

78104ROD SUB-ASSY, ACCELERATOR CONNECTING, NO.2

main78104-20041iRY16197207-197902

78106BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT

main78105-95020iJY16,RY1#..LHD197109-197902

main78123-95400iJY16,RY1#..RHD197109-197902

78111PEDAL, ACCELERATOR

main78111-95020iJY16,RY1#197109-197902

78130BELLCRANK ASSY, ACCELERATOR

main78130-36013iRY16197207-197902

78130ASPRING (FOR ACCELERATOR ROD RETURN)

main90508-16087iRY16197207-197902

78180WIRE ASSY, ACCELERATOR

main78150-95014iJY16..LHD197207-197303

main78150-95015iJY16..LHD197303-197902

main78150-95020iRY10,12..RHD197109-197303

main78150-95022iRY10,12..LHD197109-197303

main78150-95023iRY16..LHD197207-197303

main78150-95024iJY16..RHD197207-197309

main78150-95025iRY16..LHD197303-197902

main78150-95026iJY16..RHD197309-197902

main78150-95030iRY10,12..RHD197303-197309

main78150-95031iRY10,12..LHD197303-197309

main78150-95038iRY10,12..RHD197309-197511

main78150-95039iRY10,12..LHD197309-197511

main78150-95040iRY10,12..RHD197511-197902

main78150-95041iRY10,12..LHD197511-197902

main78150-95408iRY16..RHD197207-197303

main78150-95423iRY16..RHD197303-197902

78180DCLIP (FOR ACCELERATOR WIRE)

main78169-95010iRY1#197109-197502

main78169-95011iRY1#197502-197511

main78169-95012iRY1#197511-197902

78180EGROMMET (FOR ACCELERATOR WIRE)

main90480-26043iJY16,RY1#197109-197902

78180FBOOT (FOR ACCELERATOR WIRE)

main78199-95010iJY16,RY1#197203-197902

78181BEARING, ACCELERATOR PEDAL ROD SUPPORT

main78180-95010iJY16..RHD197207-197301

main78180-95011iJY16..LHD197207-197301

main78180-95020iRY10,12..RHD197109-197301

main78180-95021iRY16..RHD197207-197301

main78180-95022iRY10,12..LHD197109-197301

main78180-95023iRY16..LHD197207-197301

main78180-95024iRY10,12..RHD197303-197309

main78180-95025iRY16..RHD197303-197902

main78180-95027iRY10,12..LHD197303-197309

main78180-95028iRY16..LHD197303-197902

main78180-95030iJY16..RHD197303-197902

main78180-95031iJY16..LHD197303-197902

main78180-95032iRY10,12..RHD197309-197511

main78180-95033iRY10,12..LHD197309-197511

main78180-95034iRY10,12..RHD197511-197902

main78180-95035iRY10,12..LHD197511-197902

main78180-95090iRY10,12..RHD197301-197303

main78180-95091iRY16..RHD197301-197303

main78180-95092iRY10,12..LHD197301-197303

main78180-95093iRY16..LHD197301-197303

main78180-95094iJY16..RHD197301-197303

main78180-95095iJY16..LHD197301-197303

78185SHAFT, ACCELERATOR PEDAL SUPPORT

main90250-06164iJY16,RY1#197109-197902

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main90461-10583iRY16197207-197902

main90462-12176iRY10,12197109-197902

78310CABLE ASSY, CHOKE

main78310-95021iRY1#..RHD197109-197309

main78310-95023iRY1#..LHD197109-197309

main78310-95024iRY10,12..RHD197309-197902

main78310-95025iRY10,12..LHD197309-197902

7830295600KNOB SUB-ASSY, CHOKE ROD

main78302-95600

7830295602KNOB SUB-ASSY, CHOKE ROD

main78302-95602

9011906093

main90119-06093

9020205117

main90202-05117

9024005071

main90240-05071

9046110025

main90461-10025

9046110866

main90461-10866

9046815021

main90468-15021

9111240845

main91112-40845

9161140614

main91611-40614

9165140616

main91651-40616

9165140620

main91651-40620

9338515012

main93385-15012

9411040600

main94110-40600

9412040800

main94120-40800

9451200600

main94512-00600

9461210600

main94612-10600

30 parts on this diagram · 2 diagrams in section
