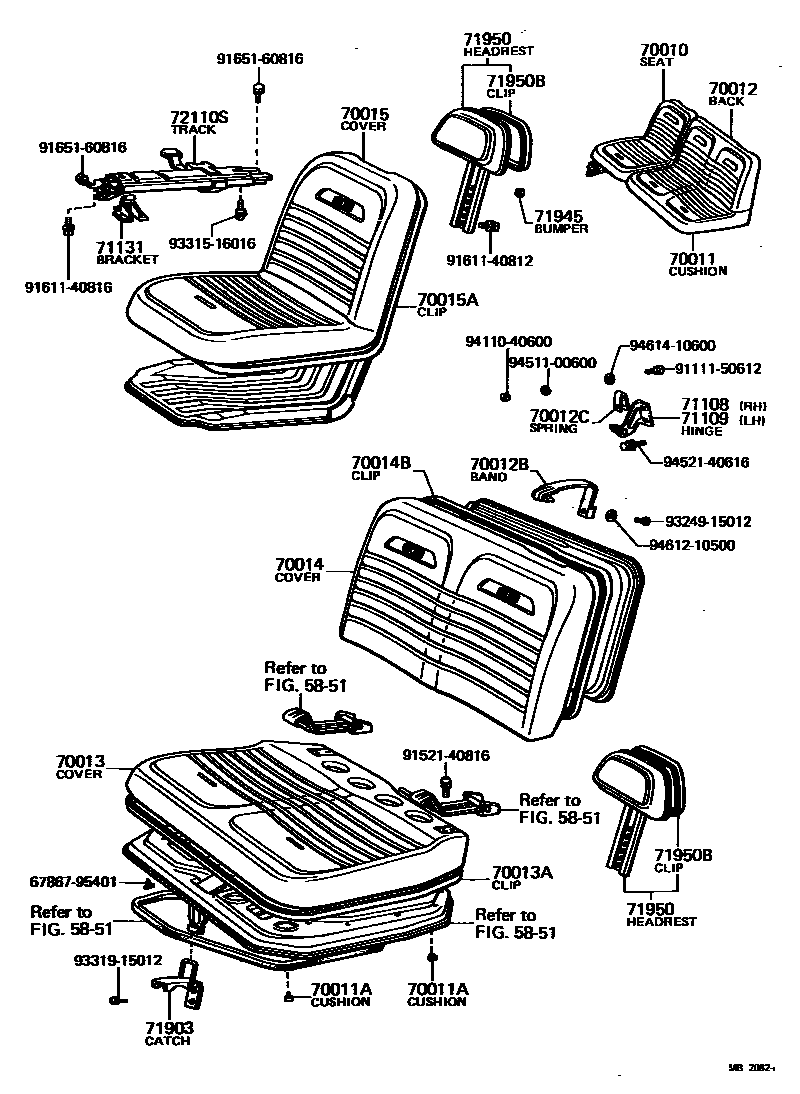

SEAT & SEAT TRACK

0001 1 0002 1 0003 1 0004 1

5851

70010SEAT ASSY, NO.1

main71100-95033-01iJY16,RY1#..RHD197109-197611

RH. BLACK,BLACK

main71100-95035-01iJY16,RY1#..LHD197109-197605

RH. BLACK,BLACK

main71100-95037iJY16,RY1#..RHD197611-197902

RH. BLACK

70011CUSHION ASSY, NO.1 SEAT

main71410-95024iJY16,RY1#..LHD197605-197902

LH.

main71420-95023-01iRY1#..RHD197109-197611

LH. BLACK,BLACK

main71420-95024-01iRY1#..LHD197109-197605

BLACK,LH.,BLACK

main71420-95025-01iJY16..RHD197207-197611

BLACK

main71420-95026-01iJY16..LHD197207-197605

BLACK

main71420-95027iJY16,RY1#..LHD197605-197902

RH.

main71420-95028iJY16..RHD197611-197902

main71420-95029iRY1#..RHD197611-197902

LH. BLACK

main71450-95010iJY16,RY1#..LHD197605-197902

CENTER

70011ACUSHION, RUBBER (FOR SEAT CUSHION ASSY)

main90541-12097×2iJY16,RY1#197109-197902

OD=25,L=22

main90541-12098iJY16,RY1#197109-197902

OD=30,L=33

70012BACK ASSY, NO.1 SEAT

main71440-95012-01iJY16,RY1#..RHD197109-197611

LH. BLACK,BLACK

main71440-95014-01iJY16,RY1#..LHD197109-197605

BLACK,LH.,BLACK

main71440-95015iJY16,RY1#..LHD197605-197902

RH.

main71440-95016iJY16,RY1#..LHD197605-197902

LH.

main71440-95018iJY16,RY1#..RHD197611-197902

LH. BLACK

main71590-95010iJY16,RY1#..LHD197605-197902

CENTER

70012BBAND, ENGINE SERVICE HOLE COVER SUPPORT

main58936-95700iJY16,RY1#..RHD197109-197902

70012CSPRING(FOR SEATBACK)

main71296-95013×2iJY16,RY1#197204-197605

70013COVER ASSY, NO.1 SEAT CUSHION

main71071-95025iJY16,RY1#..RHD197611-197902

RH. BLACK

main71072-95023-01iJY16,RY1#..RHD197109-197611

LH. BLACK,BLACK

main71072-95024-01iJY16,RY1#..LHD197109-197605

LH. BLACK,BLACK

main71072-95025iJY16,RY1#..RHD197611-197902

LH. BLACK

main71072-95606×2iJY16,RY1#..LHD197605-197902

RH.&LH.

main71075-95606iJY16,RY1#..LHD197605-197902

CENTER

70013ACLIP, LEATHER (FOR SEAT CUSHION COVER)

main71414-95010-01iJY16,RY1#197109-197605

LH. BLACK,BLACK

main71414-95011iRY1#..RHD197611-197902

LH. BLACK

70014COVER ASSY, NO.1 SEATBACK

main71072-95026iJY16,RY1#..RHD197611-197902

RH. BLACK

main71073-95604-01×2iJY16,RY1#..LHD197605-197902

RH.&LH.,BLACK

main71074-95012-01iJY16,RY1#197109-197605

LH. BLACK,BLACK

main71074-95013iJY16,RY1#..RHD197611-197902

LH. BLACK

main71076-95010iJY16,RY1#..LHD197605-197902

CENTER

70014BCLIP, LEATHER(FOR SEATBACK COVER)

main71415-95010-01iJY16,RY1#..RHD197605-197902

LH. BLACK,BLACK

main90468-06045iJY16,RY1#..LHD197605-197902

70015COVER ASSY, NO.1 SEAT

main71071-95024-01iJY16,RY1#197109-197605

RH. BLACK,BLACK

70015ACLIP, LEATHER (FOR SEAT COVER)

main71413-95010-01iJY16,RY1#197109-197605

RH. BLACK,BLACK

71108HINGE SUB-ASSY, FRONT SEATBACK, UPPER RH

main71108-95012iJY16,RY1#..RHD197109-197902

main71108-95013iJY16,RY1#..LHD197109-197210

main71108-95015iJY16,RY1#..LHD197210-197605

main71109-95016iJY16,RY1#..LHD197605-197902

FOR CENTER SEAT

71109HINGE SUB-ASSY, FRONT SEATBACK, UPPER LH

main71108-95016iJY16,RY1#..LHD197605-197902

FOR CENTER SEAT

main71109-95012iJY16,RY1#..RHD197109-197902

main71109-95013iJY16,RY1#..LHD197109-197210

main71109-95015iJY16,RY1#..LHD197210-197605

71131BRACKET, FRONT SEAT SET, OUTER RH

main72407-95010iJY16,RY1#197109-197605

71903CATCH SUB-ASSY, SEAT CUSHION, FRONT

main71901-95010iJY16,RY1#197109-197308

main71901-95016×2iJY16,RY1#..LHD197605-197902

71945BUMPER, SEATBACK

main90541-12097iJY16,RY1#197109-197605

OD=25,L=22

71950HEADREST ASSY, FRONT SEAT

main71950-95011-01×2iJY16,RY1#197109-197605

BLACK,BLACK

main71950-95015×2iJY16,RY1#..RHD197611-197902

BLACK

71950BCLIP (FOR HEADREST)

main71952-95011-01×2iJY16,RY1#197109-197605

BLACK,BLACK

72110STRACK ASSY, RH SEAT, OUTER (FOR SEPARATE SEAT)

main72110-95010iJY16,RY1#..RHD197109-197902

6786795401CLIP, DOOR WEATHERSTRIP

main67867-95401

9111150612

main91111-50612

9152140816

main91521-40816

9161140812

main91611-40812

9161140816

main91611-40816

9165160816

main91651-60816

9324915012

main93249-15012

9331516016

main93315-16016

9331915012

main93319-15012

9411040600

main94110-40600

9451100600

main94511-00600

9452140616

main94521-40616

9461210500

main94612-10500

9461410600

main94614-10600

35 parts on this diagram · 4 diagrams in section
