SEPARATION DOOR PANEL & GLASS

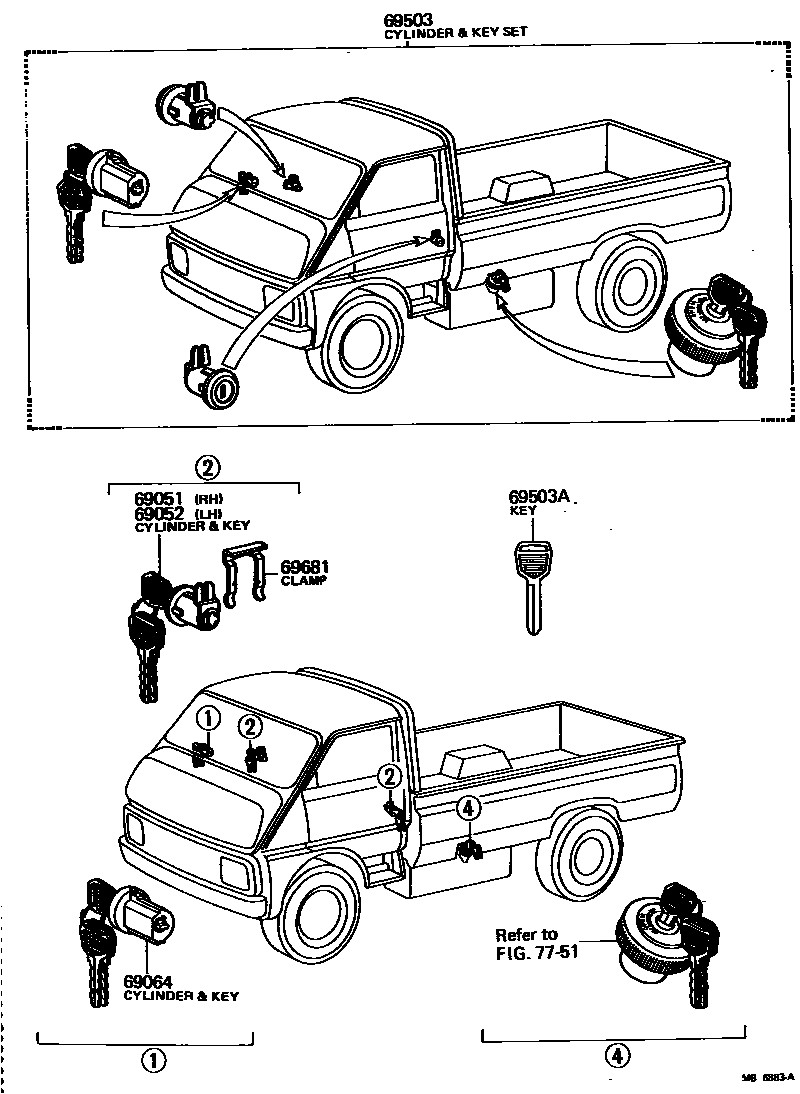

Parts diagram
69051CYLINDER & KEY SET, DOOR LOCK, RH
main69051-95010i197109-197207
main69051-95011i197207-197902
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-95010i197109-197207
main69052-95011i197207-197902
69064CYLINDER & KEY SET, IGNITION SWITCH LOCK
main69064-26010i197207-197902
sub69064-26020
main69064-36020i197207-197902
main84045-27010i197109-197206
69503CYLINDER SET, LOCK
main69500-95010i197109-197207
main69500-95013i197207-197611
sub69503-95012
main69500-95015i197210-197611
W/KEY
sub69503-95012
main69500-95016i197210-197611
W/KEY
sub69503-95013
main69503-95012i197611-197902
main69503-95013i197611-197902
main69600-95010i197109-197207
main69600-95011i197207-197611
sub69503-95012
main69600-95013i197210-197611
W/KEY
sub69503-95012
main69600-95014i197210-197611
W/KEY
sub69503-95013
69503AKEY, BLANK
main90999-00054i197207-197902
sub90999-00066
69681CLAMP, DOOR LOCK CYLINDER & SLEEVE
main69681-20010i197109-197502
sub69681-20040
main69681-20040i197502-197902
7751

7 parts on this diagram · 1 diagram in section
