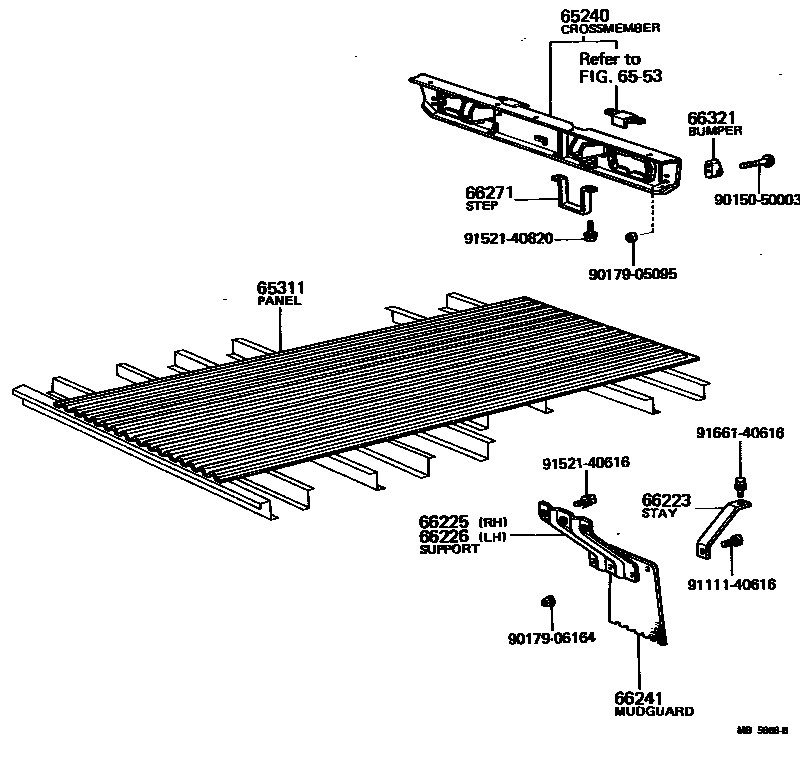

REAR BODY FLOOR & FENDER

0001 1 0002 1 0003 1

65240CROSSMEMBER, REAR BODY FLOOR, TAIL

main65204-95011iJY16,RY1#..T3..TS197208-197611

main65204-95013iJY16,RY1#..T3..TS197611-197902

main65240-95022iRY10..T1197109-197902

main65240-95023iRY12..T1197109-197111

main65240-95025iJY16,RY12,16..T1197111-197902

main65241-95024iJY16,RY1#..T3197109-197208

65311PANEL, FLOOR, CENTER

main65311-95015iRY10..T1197109-197902

main65311-95016iRY12..T1197109-197902

main65311-95405iJY16,RY16..T1197207-197902

6553

66223STAY, REAR FENDER REAR PLATE

main66217-92582×2iJY16..TB197511-197605

main66217-92583×2iJY16..TB197605-197902

main66223-95010×2iRY10,12..T1197109-197902

66225SUPPORT, REAR MUDGUARD, RH

main66206-95010iRY1#..T1197109-197110

main66225-95012iRY10,12..T1197110-197902

sub66243-95400

main66225-95013iJY16,RY16..T1197207-197902

66226SUPPORT, REAR MUDGUARD, LH

main66206-95010iRY1#..T1197109-197110

main66225-95012iRY10,12..T1197110-197902

sub66243-95400

main66225-95013iJY16,RY16..T1197207-197902

66241MUDGUARD, REAR

main66241-92310×2iJY16..TB197512-197708

main66241-92700×2iJY16..TB197708-197902

main66241-95600×2iJY16,RY1#..T3..TS197109-197902

66271STEP, REAR BODY

main65293-92582iJY16..TB197512-197902

main66271-95014iJY16,RY1#..T1197109-197902

66321BUMPER, GATE RUBBER

main66321-95010×2iRY1#197109-197207

FOR TAIL GATE

main66321-95012×2iJY16,RY1#..T3..TS197611-197902

FOR SIDE GATE FRONT

main66321-95013×2iJY16,RY1#..T1197207-197902

FOR TAIL GATE

main66321-95014×4iJY16,RY1#..T3..TS197611-197902

FOR SIDE GATE REAR & TAIL GATE

sub66331-95010

main66322-92800×4iJY16..TB197512-197902

FOR SIDE GATE

9015050003

main90150-50003

9017905095

main90179-05095

9017906464

main90179-06464

9111140616

main91111-40616

9152140616

main91521-40616

9152140820

main91521-40820

9166140616

main91661-40616

16 parts on this diagram · 3 diagrams in section
