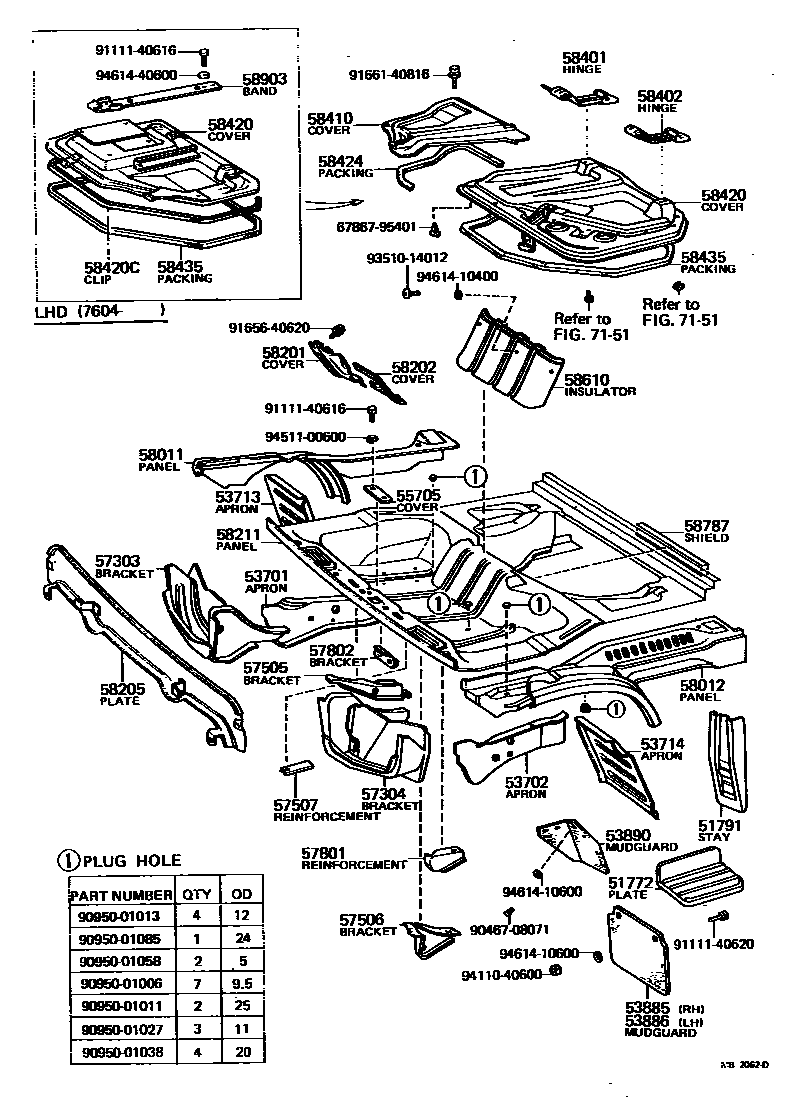

FRONT FLOOR PANEL & FRONT FLOOR MEMBER

51772PLATE, STEP

main51771-95014×2iJY16,RY1#197109-197902

51791STAY, STEP

main51777-95012iJY16,RY1#197109-197902

RH.

main51778-95012iJY16,RY1#197109-197902

LH.

53701APRON SUB-ASSY, FRONT FENDER, RH

main53703-95011iJY16,RY1#197109-197902

53702APRON SUB-ASSY, FRONT FENDER, LH

main53704-95012iRY1#197109-197902

main53704-95014iJY16197207-197902

53713APRON, FENDER SIDE, RH

main53701-95015iJY16197207-197902

main53711-95012iRY1#197109-197902

53714APRON, FENDER SIDE, LH

main53702-95014iRY1#197109-197902

main53712-95012iJY16197207-197902

53885MUDGUARD, FRONT RH

main53885-95013iJY16,RY1#..TS197109-197902

53886MUDGUARD, FRONT LH

main53885-95013iJY16,RY1#..TS197109-197902

53890MUDGUARD, FENDER APRON, INNER

main53886-95010×2iJY16,RY1#..TS197109-197902

55705COVER SUB-ASSY, CAR HEATER AIR INLET HOLE

main58703-95700iJY16,RY1#197109-197902

57303BRACKET SUB-ASSY, FRONT MOUNTING, RH

main57310-95014iRY1#..RHD197109-197902

main57310-95015iJY16,RY1#..LHD197109-197902

main57310-95016iJY16..RHD197207-197902

57304BRACKET SUB-ASSY, FRONT MOUNTING, LH

main57320-95010iJY16,RY1#..RHD197109-197902

main57320-95011iJY16,RY1#..LHD197109-197902

57505BRACKET SUB-ASSY, PARKING BRAKE, NO.1

main57505-95010iRY1#..RHD197109-197112

main57505-95012iJY16,RY1#..RHD197112-197902

main57505-95013iJY16,RY1#..LHD197109-197902

57506BRACKET SUB-ASSY, PARKING BRAKE, NO.2

main57506-95010iJY16,RY1#..LHD197109-197902

57507REINFORCEMENT SUB-ASSY, PARKING BRAKE

main57507-95010iJY16,RY1#..LHD197109-197902

57801REINFORCEMENT SUB-ASSY, FRONT FLOOR

main57801-95011iJY16,RY1#..LHD197109-197902

57802BRACKET SUB-ASSY, BRAKE TUBE, NO.1

main57802-95010iJY16,RY1#..RHD197109-197611

main57802-95011iJY16,RY1#..LHD197109-197611

main57802-95012iJY16,RY1#..RHD197611-197902

main57802-95013iJY16,RY1#..LHD197611-197902

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main57410-95012iJY16,RY1#..RHD197109-197902

main57410-95014iJY16,RY1#..LHD197109-197902

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main57420-95012iJY16,RY1#..RHD197109-197902

main57420-95014iJY16,RY1#..LHD197109-197902

58201COVER SUB-ASSY, STEERING HOLE, NO.1

main58181-95010iRY1#..RHD197109-197207

main58181-95011iRY1#..LHD197109-197207

58202COVER SUB-ASSY, STEERING HOLE, NO.2

main58182-95011iRY1#..RHD197109-197207

main58182-95012iRY1#..LHD197109-197207

58205PLATE SUB-ASSY, FLOOR PANEL FRONT END

main58202-95011iJY16,RY1#..RHD197109-197902

main58202-95012iJY16,RY1#..LHD197109-197902

58211PANEL, FRONT FLOOR

main58211-95032iRY1#..RHD197109-197207

main58211-95033iRY1#..LHD197109-197207

main58211-95034iJY16..RHD197207-197611

main58211-95035iJY16..LHD197207-197611

main58211-95036iRY1#..RHD197207-197611

main58211-95037iRY1#..LHD197207-197611

main58211-95038iJY16..RHD197611-197902

main58211-95039iRY1#..RHD197611-197902

main58211-95040iRY1#..LHD197611-197902

main58211-95041iJY16..LHD197611-197902

58401HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, RH

main58047-95010iJY16,RY1#..RHD197109-197902

main58047-95013iJY16,RY1#..LHD197605-197902

58402HINGE SUB-ASSY, ENGINE SERVICE HOLE COVER, LH

main58047-95013iJY16,RY1#..LHD197605-197902

main58048-95010iJY16,RY1#..RHD197109-197902

58410COVER, ENGINE SERVICE HOLE

main58401-95010iJY16,RY1#197109-197605

main58404-95010iJY16,RY1#..LHD197605-197902

58420COVER ASSY, ENGINE SERVICE HOLE, NO.2

main58402-95010iRY1#..RHD197109-197902

main58402-95011iRY1#..LHD197109-197605

main58402-95012iJY16..RHD197207-197611

main58402-95013iJY16..LHD197207-197605

main58402-95015iJY16..RHD197611-197902

main58403-95010iRY1#..LHD197605-197902

main58405-95010iJY16..LHD197605-197902

58420CCLIP, ENGINE SERVICE HOLE COVER

main71416-95010iJY16,RY1#..LHD197605-197902

58424PACKING, ENGINE SERVICE HOLE COVER, NO.1

main58434-95010iJY16..RHD197605-197902

FRONT

main58435-95010iJY16..LHD; RY1#197605-197902

main58435-95011iJY16197405-197605

REAR

58435PACKING, ENGINE SERVICE HOLE COVER, NO.2 UPPER

main58436-95010iRY1#197405-197605

main58436-95011iJY16..RHD197605-197609

main58436-95012iJY16,RY1#197609-197902

58610INSULATOR, FLOOR PANEL

main58618-95010iJY16..RHD197605-197902

main58618-95011iJY16..LHD197605-197902

58787SHIELD, SEAT FLOOR CENTER

main58787-95010iJY16197207-197902

58903BAND SUB-ASSY, ENGINE SERVICE HOLE COVER SUPPORT

main58930-95010iJY16,RY1#..LHD197605-197902

7151SEAT & SEAT TRACK

→ Go to FIG 71-51

6786795401CLIP, DOOR WEATHERSTRIP

main67867-95401

9046708071

main90467-08071

9095001006

main90950-01006

9095001011

main90950-01011

9095001013

main90950-01013

9095001027

main90950-01027

9095001038

main90950-01038

9095001058

main90950-01058

9095001085

main90950-01085

9111140616

main91111-40616

9111140620

main91111-40620

9165640620

main91656-40620

9166140816

main91661-40816

9351014012

main93510-14012

9411040600

main94110-40600

9451100600

main94511-00600

9461410400

main94614-10400

9461410600

main94614-10600

9461440600

main94614-40600

53 parts on this diagram · 1 diagram in section
