FRONT AXLE HUB

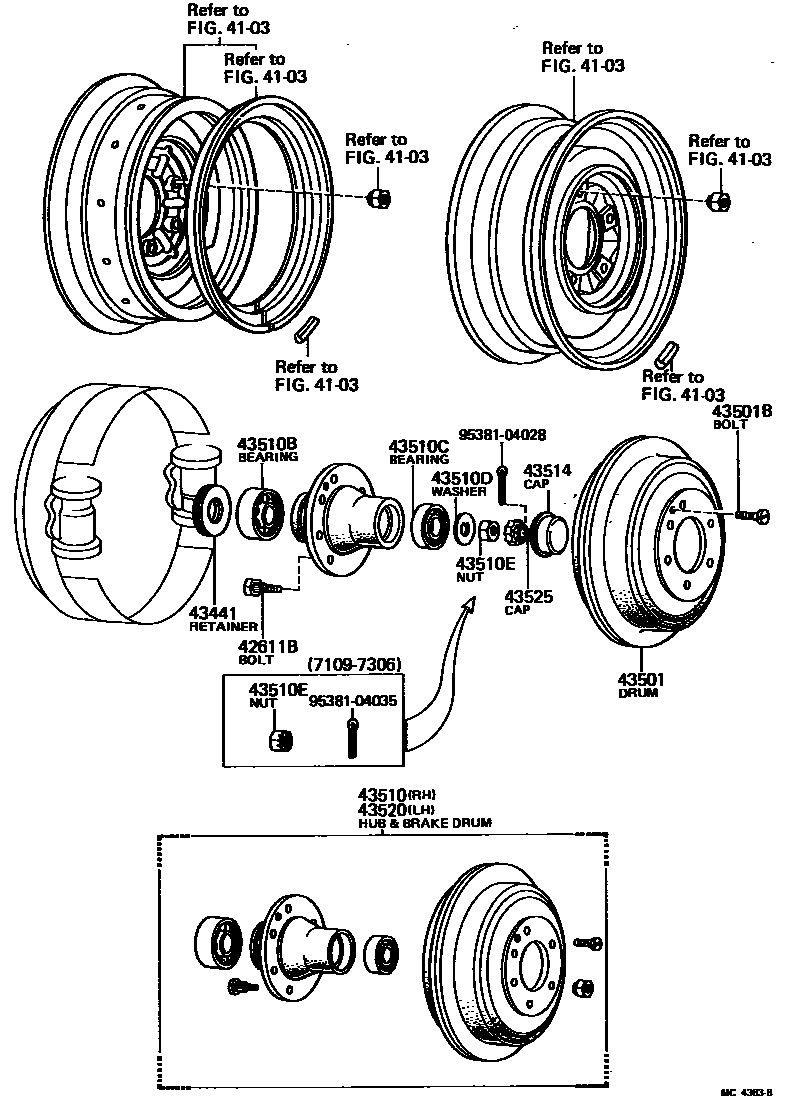

Parts diagram

4103DISC WHEEL & WHEEL CAP

→ Go to FIG 41-03

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02024×6i197207-197902

FOR RH.

main90942-02025×6i197207-197902

FOR LH.

main90942-02030×12i197109-197902

43441RETAINER, STEERING KNUCKLE GREASE

main43441-25010×2i197109-197902

main43441-36010×2i197207-197708

43501DRUM SUB-ASSY, FRONT BRAKE

main42431-25020×2i197109-197902

main42431-36030×2i197207-197708

main43512-36020×2i197708-197902

43501BBOLT, SET (FOR FRONT BRAKE DRUM SETTING)

main90113-10015×2i197708-197902

main90113-10035×2i197504-197708

43510HUB AND BRAKE DRUM ASSY, FRONT AXLE, RH

main43510-29015i197109-197902

main43510-36030i197207-197708

main43510-36050i197810-197902

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90368-31059×2i197109-197902

main90368-38009×2i197207-197708

main90368-42045×2i197708-197902

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-22007×2i197207-197708

main90368-28001×2i197708-197902

main97600-30304×2i197109-197902

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-21028×2i197109-197902

main90214-23004×2i197207-197708

main90214-27001×2i197708-197902

43510ENUT (FOR STEERING KNUCKLE)

main90170-20147×2i197306-197902

main90171-20047×2i197109-197306

main90171-22017×2i197207-197708

main90171-26001×2i197708-197902

43514CAP, FRONT HUB GREASE

main43423-55010×2i197109-197902

main43514-36010×2i197207-197708

main43514-36030×2i197708-197902

43520HUB AND BRAKE DRUM ASSY, FRONT AXLE, LH

main43510-29015i197109-197902

main43520-36030i197207-197708

main43520-36050i197810-197902

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010×2i197306-197902

9538104028

main95381-04028

9538104035

main95381-04035
