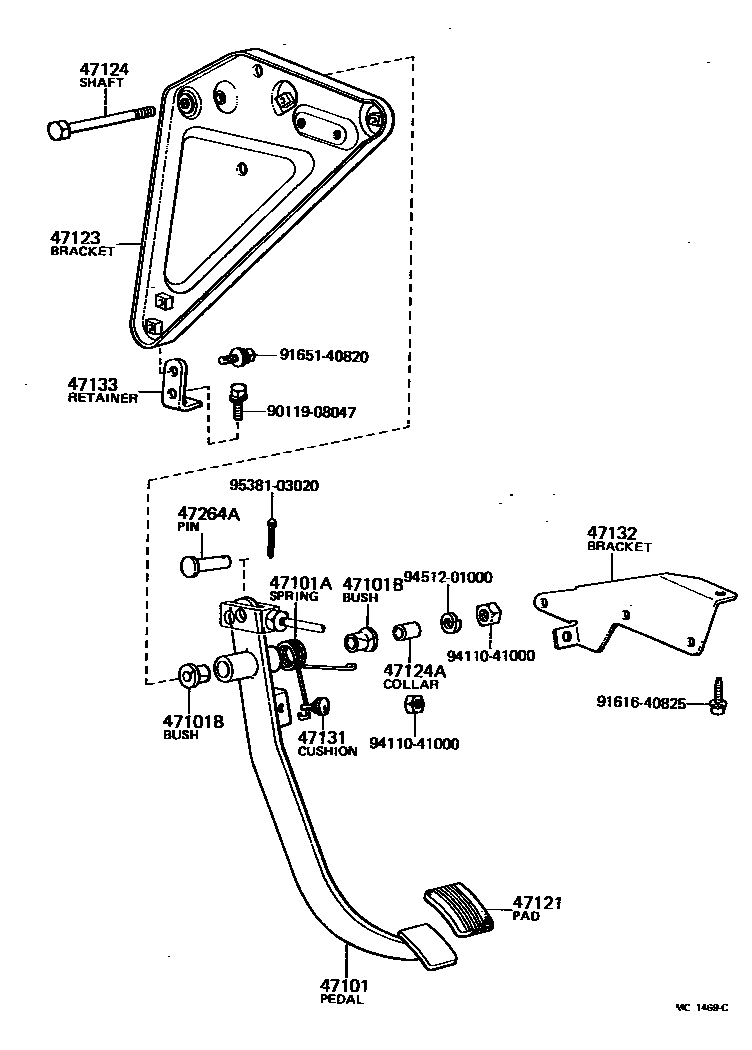

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-25010iRY10,12197109-197902

main47101-25020iRY10,12197109-197902

FOR W/BOOSTER

main47101-25030iJY16,RY16197207-197902

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90508-35131iJY16,RY1#197109-197902

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iJY16,RY1#197109-197902

47121PAD, BRAKE PEDAL

main31321-25020iJY16,RY1#197109-197902

47123BRACKET, BRAKE PEDAL

main55160-95012iRY10,12197109-197902

main55160-95015iJY16,RY16..LHD197207-197902

main55160-95016iJY16,RY16..RHD197207-197902

47124SHAFT, BRAKE PEDAL

main90101-10389iRY10,12197109-197902

main91111-51070iRY10,12197506-197902

FOR W/BOOSTER

main91111-51071iRY10,12197109-197506

FOR W/BOOSTER

main91111-51080iJY16,RY16197207-197902

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10004iJY16,RY1#197109-197902

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06008iJY16,RY1#197109-197902

47132BRACKET, BRAKE PEDAL, NO.2

main55104-95011iRY10,12197109-197902

47133RETAINER, PEDAL BRACKET, LOWER

main55772-95011iJY16,RY1#197109-197902

FOR W/BOOSTER

47264APIN(FOR PUSH ROD)

main90240-10015iJY16,RY1#197109-197902

9011908047

main90119-08047

9161640825

main91616-40825

9165140820

main91651-40820

9411041000

main94110-41000

9451201000

main94512-01000

9538103020

main95381-03020

17 parts on this diagram · 1 diagram in section
