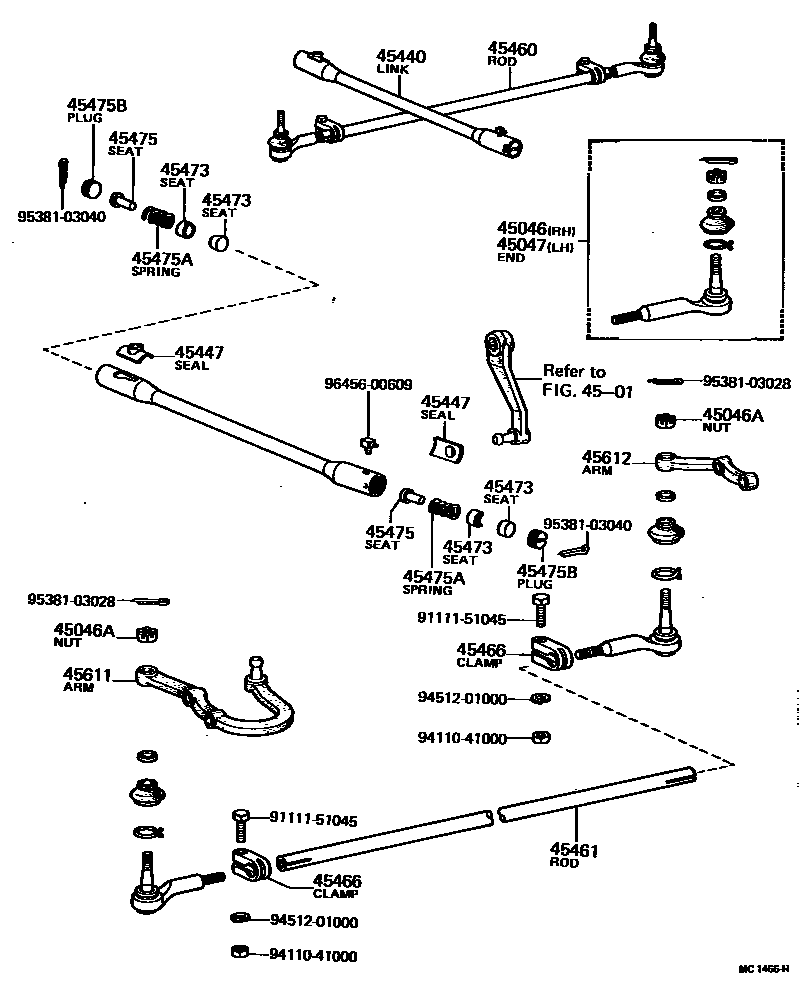

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1

4501STEERING COLUMN & SHAFT

→ Go to FIG 45-01

45046END SUB-ASSY, TIE ROD, RH

main45044-29035iRY10,12197109-197309

main45046-29065iJY16..15T; RY10,12197309-197902

main45046-39037iJY16,RY16..20T197207-197708

main45046-39095iJY16,RY16..20T197708-197902

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-14041×2iJY16,RY16..20T197506-197902

main90171-14046×2iJY16,RY16197207-197506

main94146-41400×2iJY16..15T; RY10,12197109-197902

45047END SUB-ASSY, TIE ROD, LH

main45045-29035iRY10,12197109-197309

main45047-29025iJY16..15T; RY10,12197309-197902

main45047-39027iJY16,RY16..20T197207-197708

main45047-39065iJY16,RY16..20T197708-197902

45440LINK ASSY, STEERING DRAG

main45440-25030iRY10,12..RHD197109-197902

main45440-25040iRY10,12..LHD197109-197902

main45440-25050iJY16,RY16..RHD197207-197708

main45440-25051iJY16,RY16..RHD197708-197902

main45440-25060iJY16,RY16..LHD..20T197207-197708

main45440-25061iJY16,RY16..LHD..20T197708-197902

45447SEAL, DRAG LINK DUST

main45447-60010×2iJY16,RY1#197109-197902

45460ROD ASSY, TIE, RH

main45460-25901iRY10,12197109-197309

main45460-25902iJY16..15T; RY10,12197309-197902

main45460-36901iJY16,RY16..20T197207-197708

main45460-39085iJY16,RY16..20T197708-197902

45461ROD, STEERING TIE

main45461-25010iRY10,12197109-197309

main45461-25011iJY16..15T; RY10,12197309-197902

main45461-36012iJY16,RY16..20T197207-197708

main45461-36020iJY16,RY16..20T197708-197902

45466CLAMP, TIE ROD END

main45466-30010×2iRY10,12197109-197309

main45466-55010×2iJY16..15T; RY10,12197309-197902

main45466-55020×2iJY16,RY16..20T197207-197902

45473SEAT, BALL STUD

main45473-35010×4iJY16..15T; RY10,12197109-197902

main45473-55010×4iJY16,RY16..20T197207-197902

45475SEAT, STEERING LINK JOINT SPRING

main45475-35010×2iJY16..15T; RY10,12197109-197902

main45475-55010×2iJY16,RY16..20T197207-197902

45475ASPRING, COMPRESSION(FOR STEERING LINK JOINT)

main90501-45114×2iJY16..15T; RY10,12197109-197902

WD=4.5,CW=4.5

main90501-50118×2iJY16,RY16..20T197207-197902

45475BPLUG, STRAIGHT SCREW(FOR STEERING LINK JOINT)

main90340-25011×2iJY16..15T; RY10,12197109-197902

main90340-28001×2iJY16,RY16..20T197708-197902

main90340-28006×2iJY16,RY16..20T197207-197708

45611ARM, STEERING KNUCKLE, RH

main45601-25010iRY10,12..RHD197109-197902

main45601-25020iRY10,12..LHD197109-197902

main45601-36010iJY16,RY16..RHD197207-197708

main45601-36020iJY16,RY16..LHD..20T197207-197708

main45601-39015iJY16,RY16..RHD197708-197902

main45601-39025iJY16,RY16..LHD..20T197708-197902

45612ARM, STEERING KNUCKLE, LH

main45612-25010iRY10,12..RHD197109-197902

main45612-25020iJY16..15T197512-197902

main45612-36010iJY16,RY16..RHD197207-197708

main45612-36020iJY16,RY16..LHD..20T197207-197708

main45612-39015iJY16,RY16..RHD197708-197902

main45612-39025iJY16,RY16..LHD..20T197708-197902

9111151045

main91111-51045

9411041000

main94110-41000

9451201000

main94512-01000

9538103028

main95381-03028

9538103040

main95381-03040

9645600609

main96456-00609

21 parts on this diagram · 3 diagrams in section
