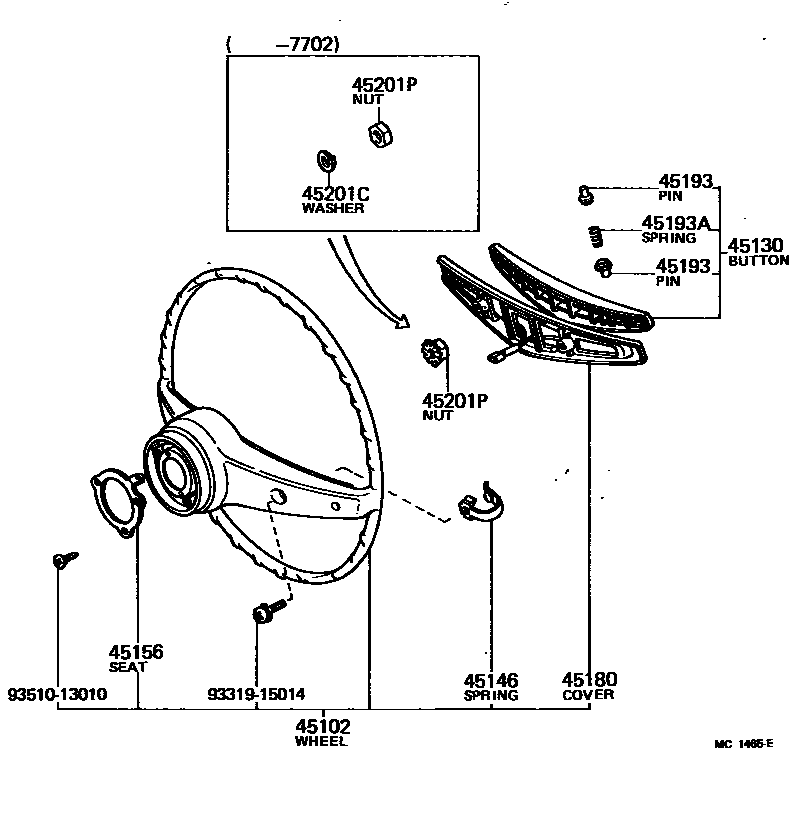

STEERING WHEEL

45102WHEEL SUB-ASSY, STEERING

main45100-25040iJY16,RY1#197109-197709

main45100-25041iJY16,RY1#197709-197902

45130BUTTON ASSY, HORN

main45130-25020iJY16,RY1#197109-197309

main45130-25021iJY16,RY1#197309-197902

W/TRUMPET MARK

45146SPRING, HORN BUTTON CONTACT

main45146-12010×2iJY16,RY1#197109-197902

45156SEAT, HORN LEAD SPRING

main45176-25010iJY16,RY1#197109-197902

45180COVER SUB-ASSY, STEERING WHEEL

main45180-25010iJY16,RY1#197109-197902

45193PIN, HORN BUTTON

main45193-12010×4iJY16,RY1#197109-197902

45193ASPRING, HORN BUTTON PIN

main90501-07220×2iJY16,RY1#197109-197902

45201CWASHER, SPRING(FOR STEERING WHEEL SET)

main90204-12029iJY16,RY1#197109-197702

45201PNUT, STEERING WHEEL SET

main90179-12086iJY16,RY1#197702-197902

main94125-41200iJY16,RY1#197109-197702

9331915014

main93319-15014

9351013010

main93510-13010

11 parts on this diagram · 1 diagram in section
