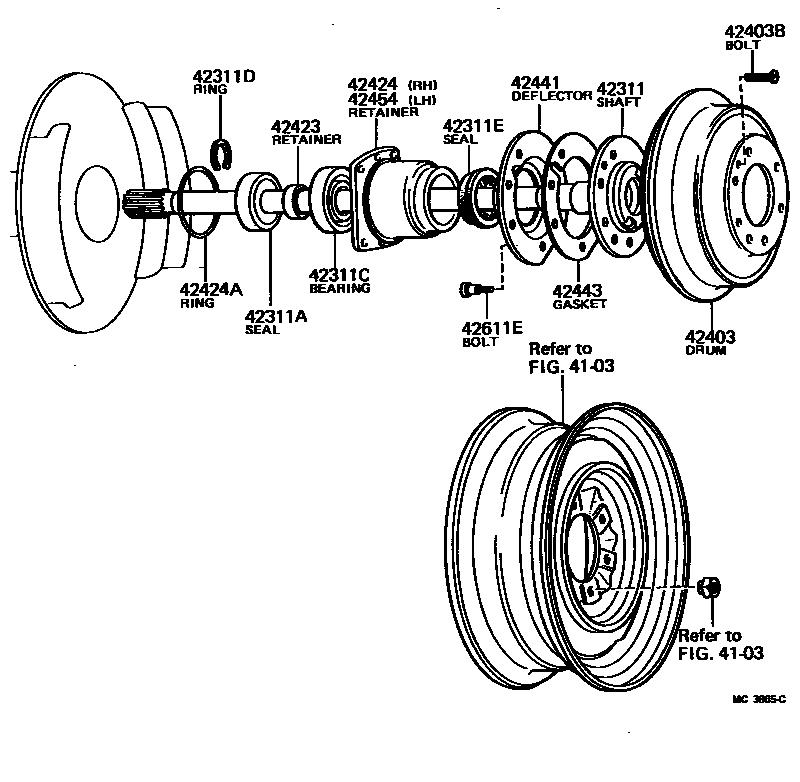

REAR AXLE SHAFT & HUB
4103DISC WHEEL & WHEEL CAP
42311SHAFT, REAR AXLE
42311ASEAL, OIL(FOR REAR AXLE SHAFT)
42311CBEARING(FOR REAR AXLE SHAFT)
FOR OUTER
FOR INNER
42311DRING, SNAP(FOR REAR AXLE SHAFT)
42311ESEAL, OIL(FOR REAR AXLE SHAFT OUTER)
42403DRUM SUB-ASSY, REAR BRAKE
42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)
42423RETAINER, REAR AXLE BEARING, INNER
42424RETAINER, REAR AXLE BEARING, OUTER, RH
42424ARING, O (FOR BEARING RETAINER SET)
42441DEFLECTOR, BRAKE DRUM OIL
42443GASKET, BRAKE DRUM OIL DEFLECTOR
42454RETAINER, REAR AXLE BEARING, OUTER, LH
42611EBOLT, HUB (FOR REAR AXLE)
FOR RH.
FOR LH.
15 parts on this diagram · 3 diagrams in section
